Introduction: The Dual-Hopper Advantage in Packaging
In industries where bulk material packaging demands both speed and accuracy, traditional single-hopper scales often struggle to balance the two. Our Double-Hopper Packaging Scale changes the game—equipped with two independent hoppers, it enables simultaneous weighing and feeding, cutting down packaging cycles while maintaining strict weight precision.
This innovative design makes it a perfect fit for high-volume production lines handling granular, powdery, or pellet materials. Whether you're packaging sugar in the food industry, PVC resin in the chemical sector, or cement additives in the construction field, this scale delivers consistent performance that drives operational efficiency. Let's explore how its dual-hopper technology transforms packaging workflows.
Key Features & Industry Applications
Our Double-Hopper Packaging Scale is engineered to solve common bottlenecks in bulk packaging. Below are its core capabilities, paired with real-world success stories from global clients:
1. Dual-Hopper Parallel Operation for Max Speed
Function: Two hoppers work in tandem—while one hopper weighs and discharges material into a bag, the other is already filling and weighing the next batch. This parallel process eliminates idle time, increasing packaging speed by up to 60% compared to single-hopper scales.
Industry Case: A leading sugar refinery in Thailand was struggling to meet export deadlines with their old single-hopper setup. After switching to our Double-Hopper Packaging Scale, they boosted output from 25 bags/h to 40 bags/h, ensuring timely delivery to European and Middle Eastern markets.
2. Intelligent Weight Control for Unmatched Accuracy
Function: Each hopper is equipped with a high-precision load cell and intelligent control system, supporting 0.2% F.S weighing accuracy. It also features automatic zero-tracking, over-weight alarm, and under-weight compensation—ensuring every bag meets your specified weight range, no matter the material density.
Industry Case: A German chemical company producing plastic pellets needed to adhere to strict EU weight regulations (±2g per 25kg bag). Our scale's dual-hopper precision reduced weight deviations from 5g to less than 1g, avoiding costly fines and improving customer trust.
3. Customizable Material Handling for Versatility
Function: Adapt the scale to your material's unique properties:
- For powdery materials (e.g., flour, talc), add dust-proof covers to each hopper and a pneumatic conveying system to minimize waste and protect workers' health.
- For sticky materials (e.g., molasses-based feed), install anti-stick hopper liners and vibratory discharge mechanisms to prevent clogging.
- Integrate with automatic bagging machines and conveyor belts for a fully automated packaging line.
Industry Case: A Brazilian animal feed manufacturer faced frequent hopper clogging with their sticky feed mix. We added anti-stick liners and vibratory discharge to our Double-Hopper Scale, reducing downtime by 30% and ensuring consistent feed flow.
4. User-Friendly Interface & Remote Monitoring
Function: The scale features a 7-inch touchscreen HMI (Human-Machine Interface) with multi-language support, allowing operators to set parameters (weight, speed, hopper sequence) in minutes. It also supports remote monitoring via a mobile app—managers can track production data, error alerts, and maintenance schedules from anywhere.
Safety First: Equipped with emergency stop buttons, overload protection, and IP65-rated electrical components, the scale meets global safety standards (CE, ISO 9001) for industrial use.
Technical Specifications (Model Comparison)

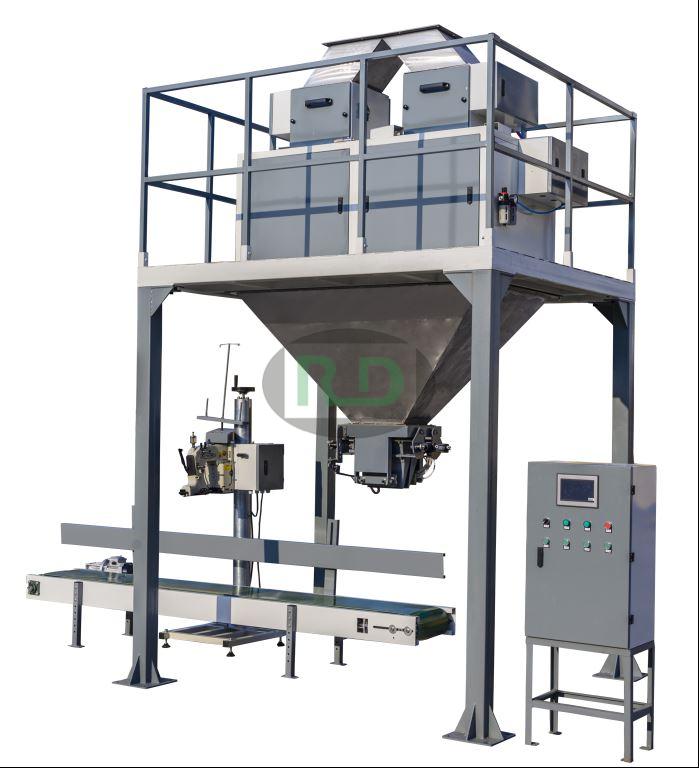

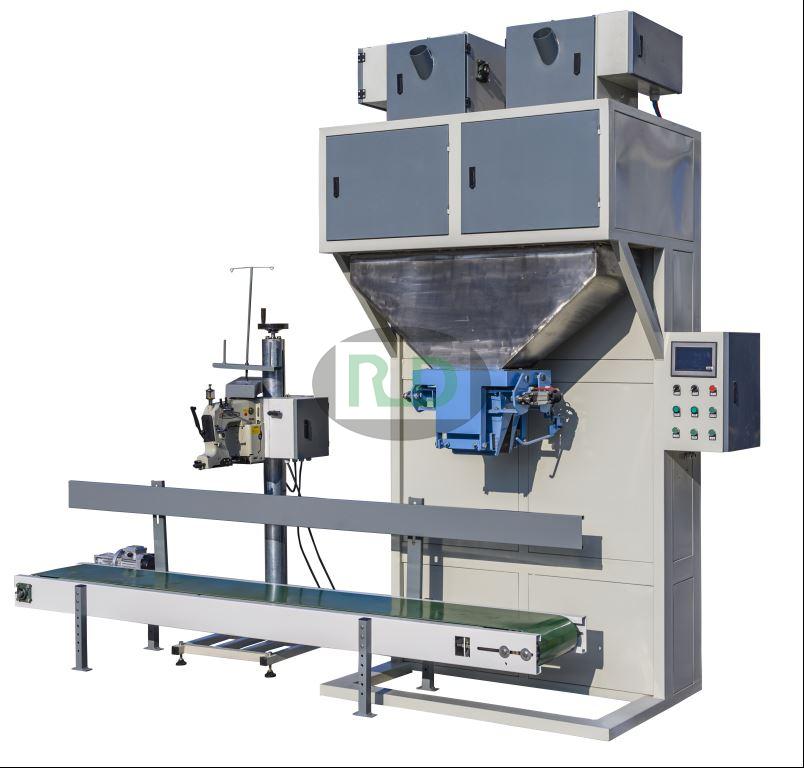

Our Double-Hopper Packaging Scale (Model: DCS-50-2DN) is built for durability and performance in harsh industrial environments. See detailed parameters below:
| Parameter | Specification |
|---|
| Model | DCS-50-2DN |
| Weighing Range | 1-50kg |
| Weighing Accuracy | ±0.2% F.S |
| Packaging Speed | 30-60 bags/h |
| Hopper Capacity | 50L per hopper |
| Power Supply | AC380V 50/60Hz |
| Total Power | 4.5kW |
| Compressed Air Requirement | 0.6-0.8MPa |
| Weight Sensor Type | Shear Beam Sensor |
| Machine Dimension (L×W×H) | 2200×1500×2800mm |
Industry-Specific Solutions & Customer Success
Tailored for Key Sectors: Our Double-Hopper Packaging Scale isn't a one-size-fits-all solution—it's customized to meet the unique needs of different industries:
| Industry | Material Examples | Customer Feedback |
|---|
| Food | Sugar, flour, salt | "We reduced cross-contamination risks with the stainless steel design, and speed doubled—exactly what we needed for our busy holiday season." - Italian bakery supplier |
| Chemical | PVC resin, fertilizer, detergent powder | "The explosion-proof feature keeps our workers safe, and the dual hoppers let us package two different fertilizer grades at once." - Chinese chemical manufacturer |
| Construction | Cement additives, sand (granular), lime powder | "Handles abrasive sand without wear issues, and the speed helps us keep up with construction site demand." - Malaysian building materials supplier |
Why Choose Our Double-Hopper Packaging Scale?
- Unbeatable Speed: Dual-hopper parallel operation cuts packaging time by up to 60%, ideal for high-volume production.
- Precision You Can Trust: ±0.2% F.S accuracy ensures compliance with global weight standards, reducing waste and fines.
- Durability for Long-Term Use: Heavy-duty steel construction, anti-corrosion parts, and IP65 protection make it suitable for harsh environments.
- 24/7 Support: We offer 24-hour technical support, annual maintenance checks, and a 2-year warranty on core components—so you can focus on your business, not equipment issues.
Ready to upgrade your packaging line? Discover how our Double-Hopper Packaging Scale can transform your operational efficiency. Let's turn your packaging bottlenecks into competitive advantages—together.
