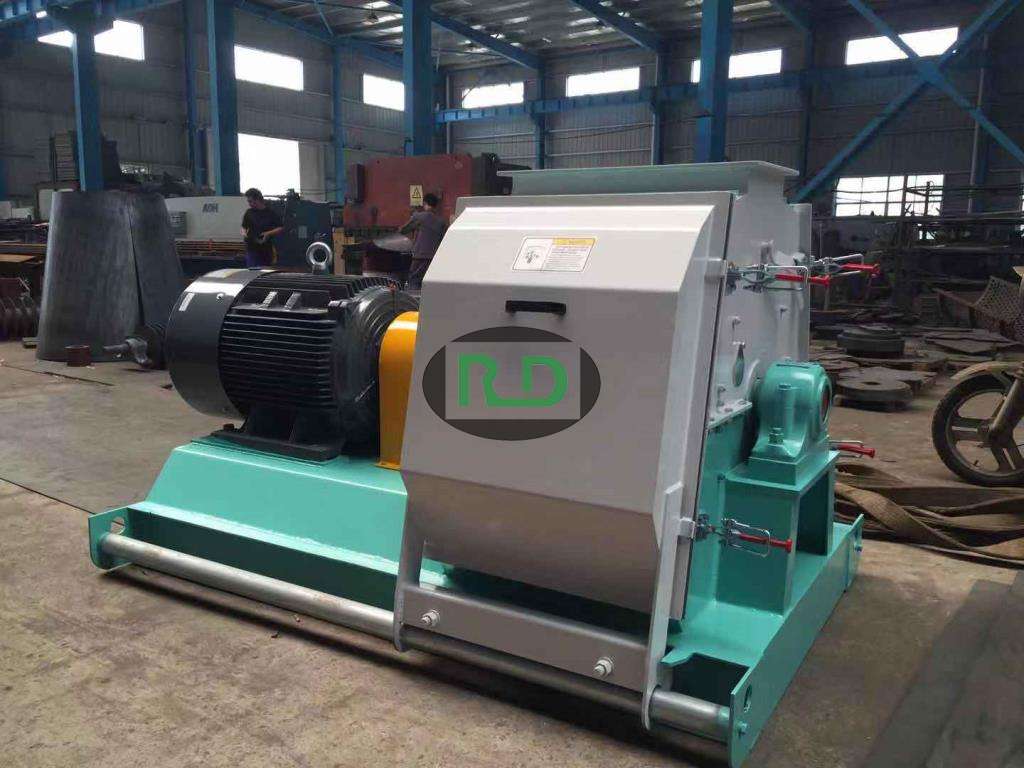

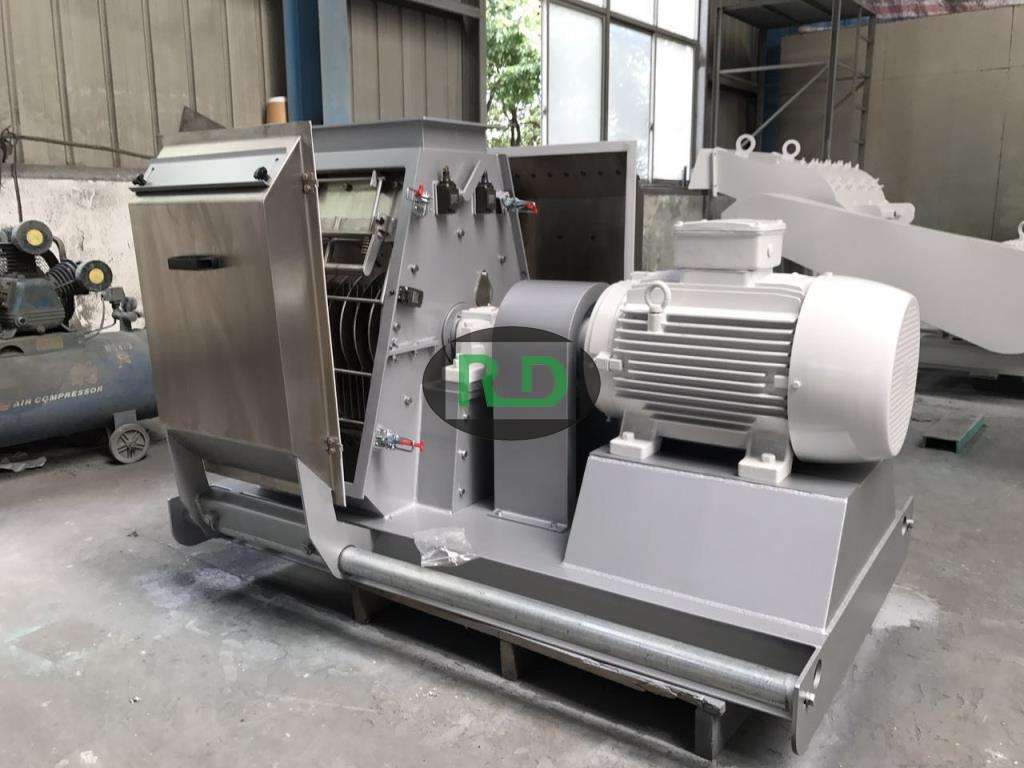

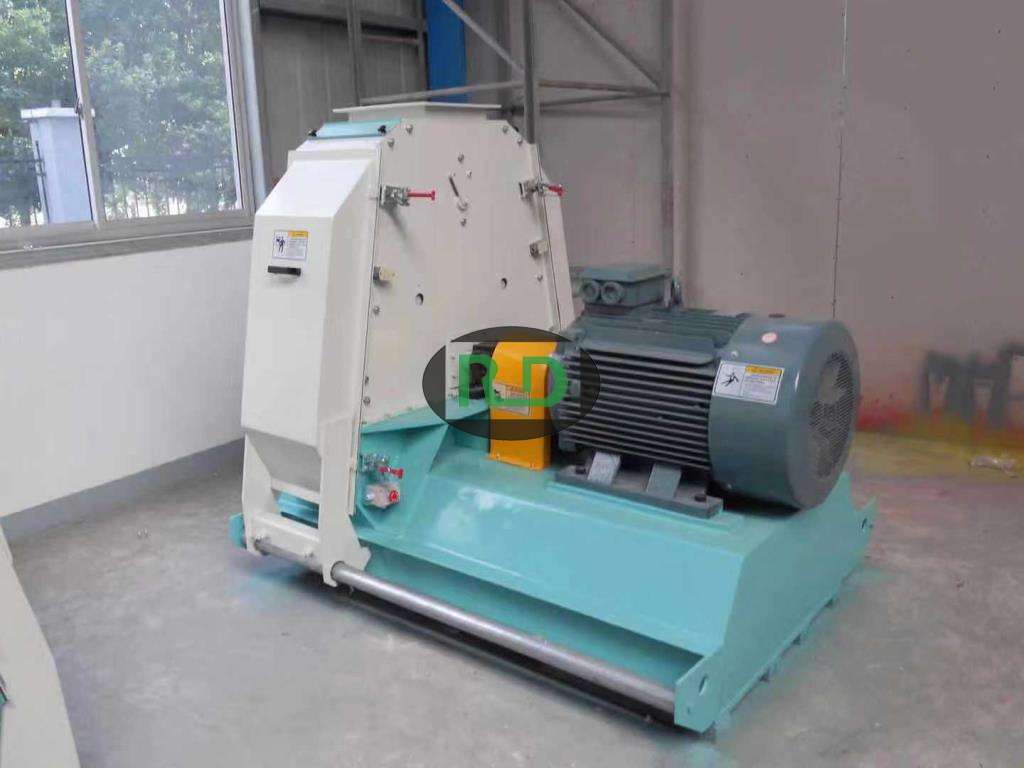

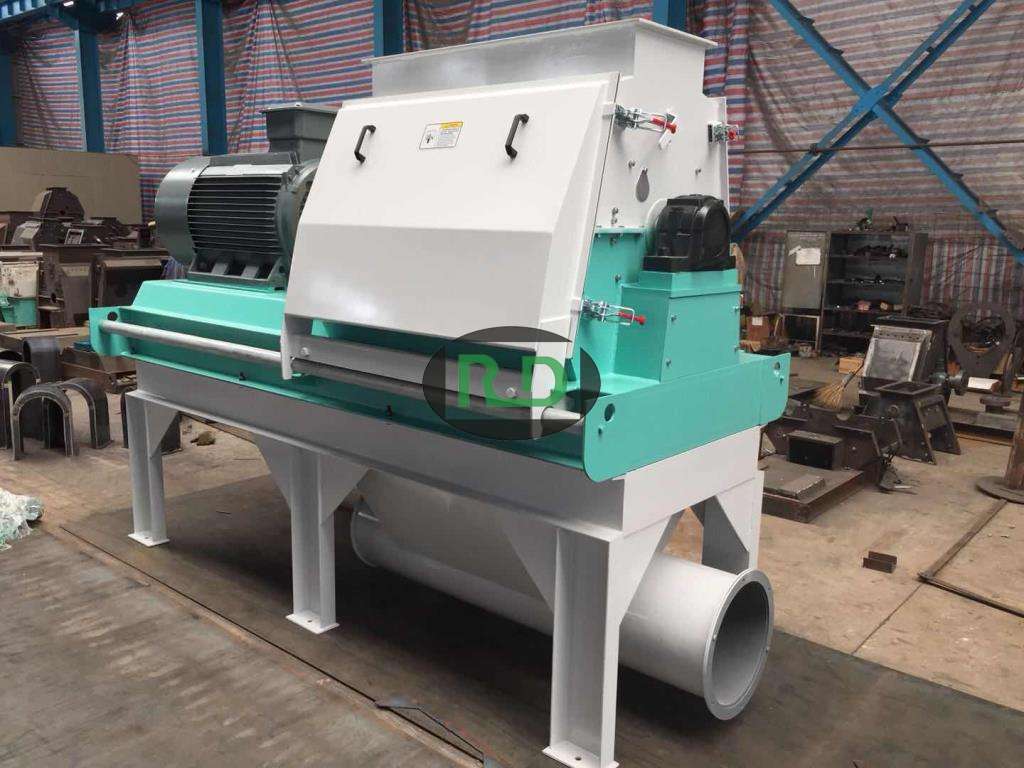

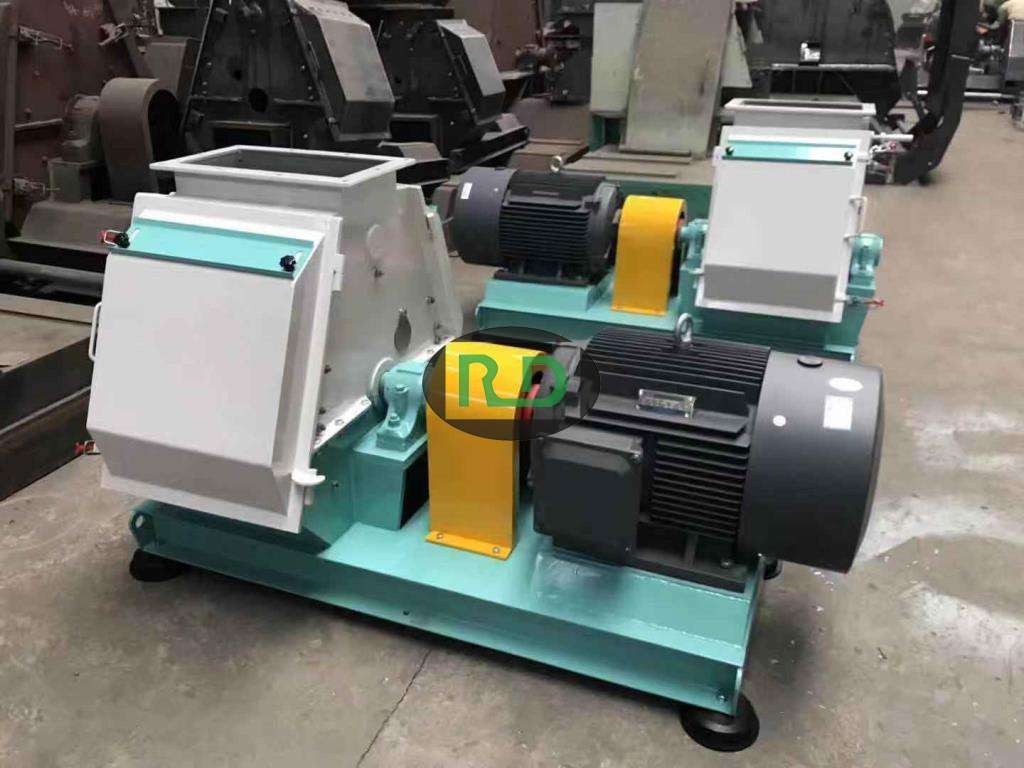

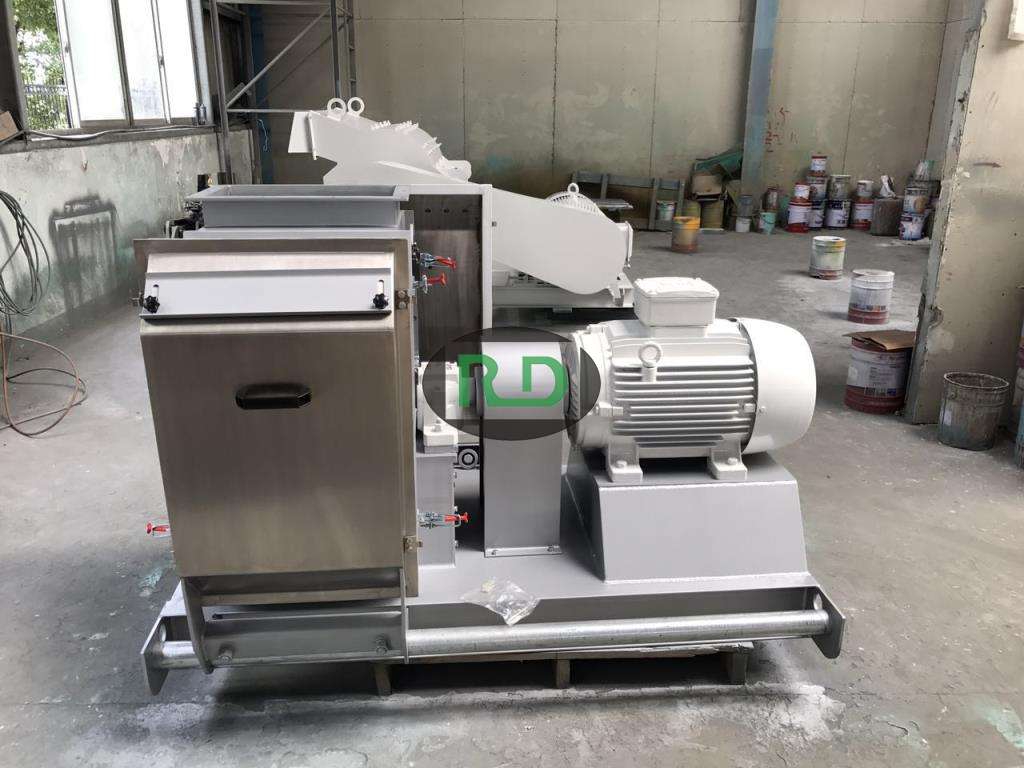

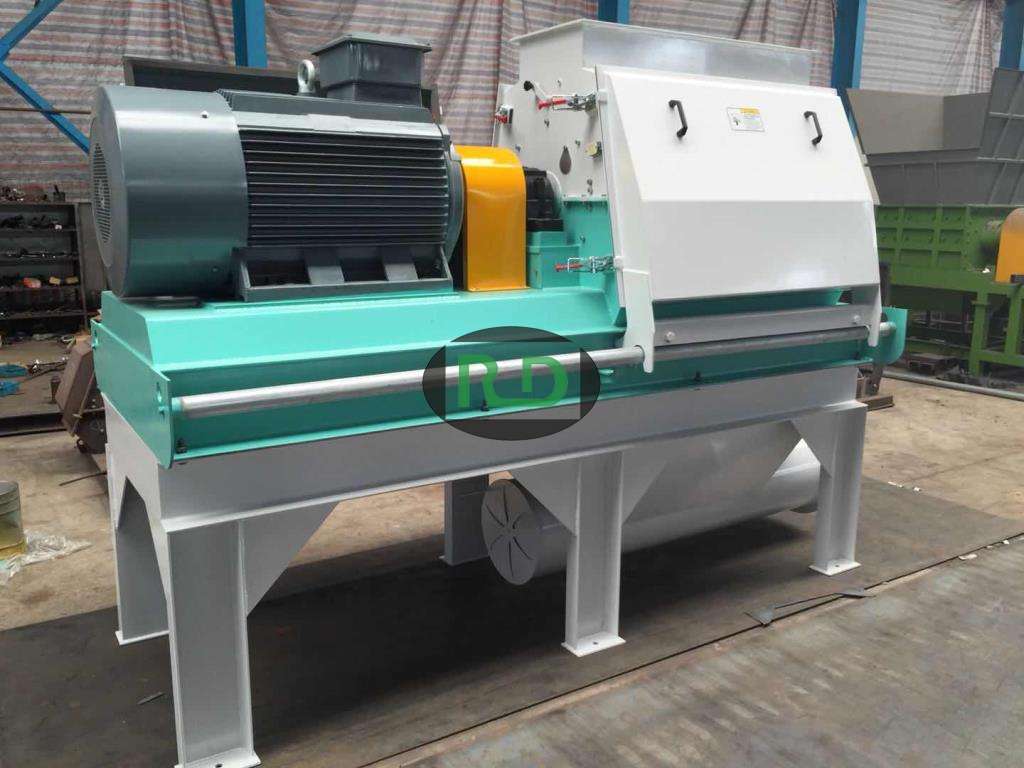

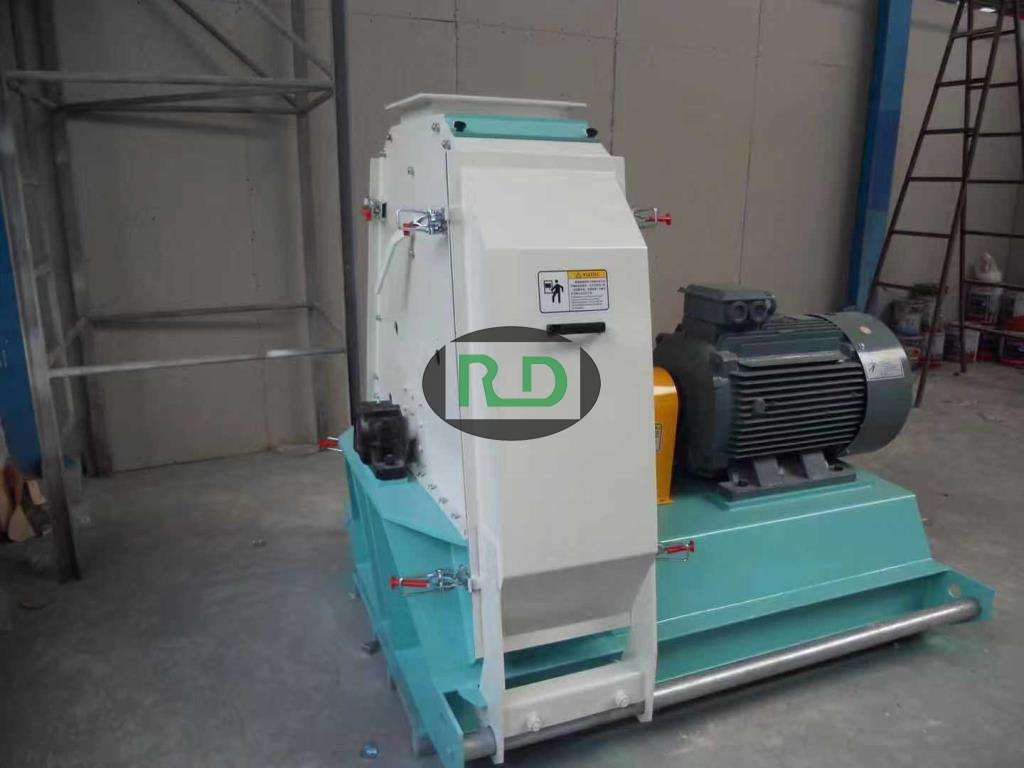

Rongda Mechanical Heavy-Duty Wood Chip Hammer Mill

Professional Heavy-Duty Wood Processing Solution - High-Performance Hammer Mill

Introduction: Advanced Heavy-Duty Wood Processing

In the biomass processing, woodworking, and waste management industries, the ability to efficiently reduce large wood materials into uniform, high-quality chips is a foundational step—one that directly impacts downstream productivity (e.g., pellet production, paper manufacturing, or biofuel processing). The Heavy-Duty Wood Chip Hammer Mill from RD Machinery is engineered to meet this critical need, designed for heavy-duty, continuous operation with the power to process logs, branches, wood scraps, and even recycled wood waste into consistent chips (3-50mm adjustable size). Built for durability, versatility, and high throughput, this machine caters to large sawmills, biomass pellet plants, paper mills, and municipal waste facilities that require reliable, high-volume wood chipping to keep their operations running smoothly.

Why Choose Our Heavy-Duty Wood Chip Hammer Mill?

Wood processing operations often struggle with inconsistent chip quality, frequent equipment breakdowns, or limited capacity when using standard hammer mills—issues that lead to costly downtime and compromised downstream processes. The Heavy-Duty Wood Chip Hammer Mill addresses these pain points by combining industrial-grade construction with smart design features. It handles a wide range of wood materials (hardwood, softwood, recycled wood, and even wood with minor metal contaminants) while delivering uniform chip size, high throughput, and minimal maintenance.

Key Features: Engineered for Durability, Versatility, and High Throughput

The Heavy-Duty Wood Chip Hammer Mill is built to withstand the rigors of continuous, heavy-duty use—from processing thick logs to abrasive recycled wood. Here's what sets it apart from standard hammer mills:

Robust Construction for Heavy-Duty Use:

The mill's frame is fabricated from 20mm thick high-strength steel (Q345B), with reinforced welding at stress points to resist vibration and deformation during high-volume operation. The crushing chamber (1200×800mm) is lined with replaceable manganese steel plates (Mn13) that offer exceptional wear resistance—extending chamber life by 300% compared to standard steel liners, even when processing abrasive hardwoods.

High-Power Hammer System for Efficient Crushing:

The mill is equipped with 16 high-chromium alloy steel hammers (Cr20MoV), each weighing 8kg—designed to deliver high impact force for breaking down thick logs (up to 300mm diameter) and dense wood scraps. The hammers are mounted on a reinforced rotor (diameter 600mm) with a balanced design to minimize vibration and ensure smooth operation at 1500 RPM. A reversible hammer design allows for double-sided use: when one side wears down, operators can flip the hammers to extend their service life by 100%, reducing replacement costs and downtime.

Adjustable Chip Size for Versatile Applications:

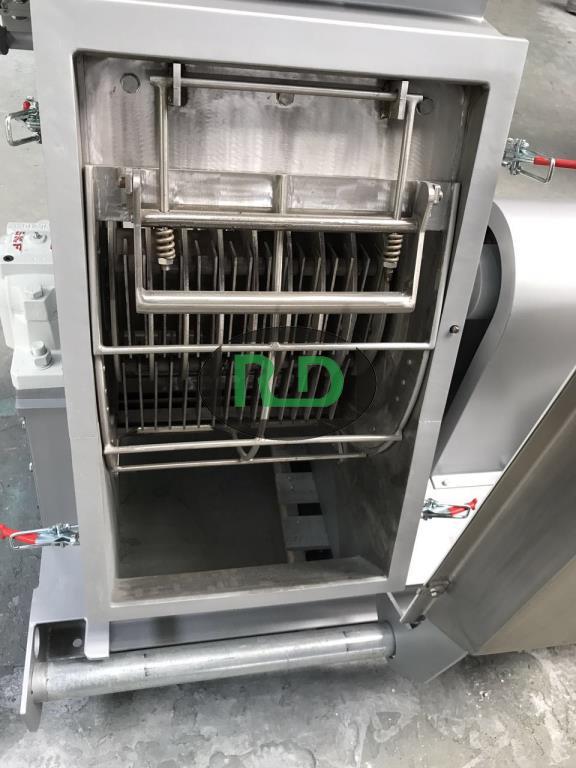

A removable screen (located at the discharge port) with interchangeable mesh sizes (3mm, 5mm, 10mm, 20mm, 50mm) allows operators to customize chip size based on downstream needs—from fine chips (3-5mm) for biomass pellets to coarse chips (20-50mm) for paper pulping or animal bedding. Screen changes can be completed in 30 minutes by 2 operators, minimizing downtime when switching between applications.

Advanced Feeding & Safety Systems:

A hydraulic-driven feeding conveyor with a 5m³ hopper ensures consistent material flow, even for irregularly shaped logs or bulky wood scraps. The conveyor's speed is adjustable via a variable-frequency drive (VFD), allowing operators to match feeding rate to crushing capacity and prevent overloads. Safety features include a magnetic separator at the feed inlet (removing small metal contaminants like nails or screws from recycled wood), an emergency stop button on both the control panel and machine frame, and a thermal overload protector for the main motor (preventing overheating during heavy use).

Low Maintenance & Easy Access Design:

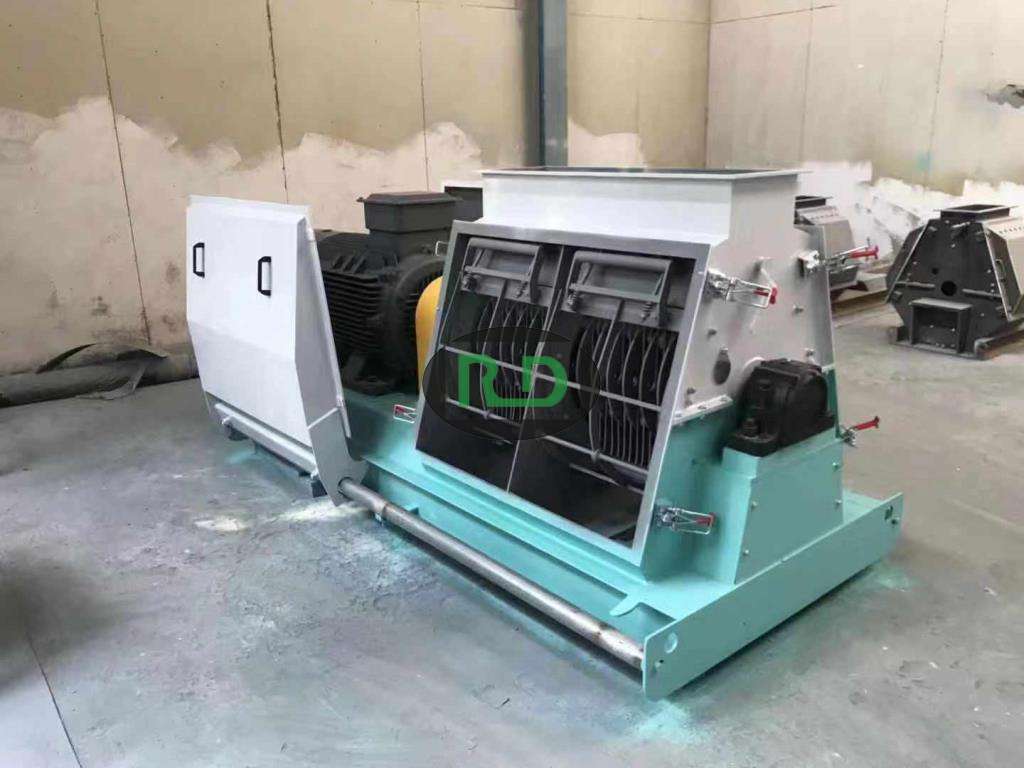

The mill's top cover is equipped with hydraulic lifting cylinders, allowing for easy opening (in 2 minutes) to access the crushing chamber for hammer replacement, screen changes, or cleaning. This eliminates the need for heavy lifting equipment and reduces maintenance time by 50%. A centralized lubrication system automatically lubricates key components (bearings, rotor shaft) at set intervals (every 2 hours), ensuring smooth operation and extending bearing life to over 10,000 operating hours.

Energy Efficiency & Cost Optimization:

The 75 KW main motor (optional 90 KW for higher capacity) is optimized for heavy-duty crushing, consuming 18-22% less energy than two smaller 45 KW mills when processing the same volume of wood. The motor's high starting torque ensures reliable operation even when feeding thick logs, while the VFD-fed conveyor reduces energy waste by adjusting speed based on material input.

Technical Specifications: Precision-Tuned for Heavy-Duty Performance

The Heavy-Duty Wood Chip Hammer Mill's specifications are tailored to meet the demands of high-volume, continuous wood processing operations. Below is a comprehensive parameter table:

Industry Applications: Powering Efficient Wood Processing Globally

The Heavy-Duty Wood Chip Hammer Mill's versatility makes it a critical asset across multiple industries that rely on consistent, high-volume wood chipping. Below are real-world case studies that demonstrate its impact:

1. Large Sawmill (Hardwood & Softwood Processing)

Case Study: A sawmill in Canada processes 50 tons of hardwood (maple, oak) and softwood (spruce, pine) logs daily to produce lumber for furniture manufacturing. Previously, the sawmill used two standard hammer mills that struggled with thick hardwood logs, resulting in uneven chip size and frequent breakdowns. After upgrading to the Heavy-Duty Wood Chip Hammer Mill, the sawmill now processes 15 tons of wood waste (logs, offcuts) daily into uniform 10mm chips—used to fuel the mill's boiler (reducing natural gas costs by 4,000/month) and sold to a local biomass pellet plant (generating 2,500/month in extra revenue). The mill's maintenance costs have dropped by 40% due to the machine's durable liners and reversible hammers.

2. Biomass Pellet Plant (Wood Chip Preparation)

Case Study: A biomass pellet plant in Germany produces 20 tons of wood pellets daily for industrial heating. The plant requires fine, uniform 5mm wood chips to ensure high pellet density and low ash content. Using the Heavy-Duty Wood Chip Hammer Mill with a 5mm screen, the plant processes 25 tons of recycled wood waste (pallets, construction scraps) daily into consistent 5mm chips. The magnetic separator removes metal contaminants from the recycled wood, preventing damage to the downstream pellet mill. The plant's pellet rejection rate has dropped from 8% to 2% due to the uniform chip size, increasing overall productivity by 6%.

3. Paper Mill (Pulp Preparation)

Case Study: A paper mill in Brazil produces 100 tons of paper daily, requiring coarse 20mm wood chips for pulp production. The mill invested in two Heavy-Duty Wood Chip Hammer Mills (equipped with 20mm screens) to process 40 tons of eucalyptus logs daily. The mills' high throughput (15 T/h per machine) ensures a steady supply of chips to the pulp line, eliminating bottlenecks. The replaceable Mn13 liners have withstood the abrasive eucalyptus wood for over 8,000 operating hours—far exceeding the 2,000-hour life of the mill's previous standard liners—reducing replacement costs by $15,000 annually.

4. Municipal Waste Management (Recycled Wood Processing)

Case Study: A municipal waste management facility in the UK processes 30 tons of construction and demolition waste daily, extracting 10 tons of recyclable wood for chipping. The facility uses the Heavy-Duty Wood Chip Hammer Mill (with a 10mm screen and magnetic separator) to convert the recycled wood into chips—sold to local garden centers for mulch and to a biomass plant for fuel. The machine's hydraulic feeding system handles irregularly shaped wood scraps (e.g., broken pallets, wooden beams), and the emergency stop system ensures operator safety when feeding bulky materials. The facility now diverts 100% of its recyclable wood from landfills, meeting local waste reduction targets and generating $1,800/month in revenue from chip sales.

Why Choose Rongda Machinery? Your Partner for Heavy-Duty Wood Processing

At Rongda Machinery, we understand that heavy-duty wood processing operations need equipment that delivers reliability, durability, and long-term value. The Heavy-Duty Wood Chip Hammer Mill is backed by our commitment to quality and customer support:

• Customization for Your Needs: We offer tailored upgrades, including a larger crushing chamber (1500×1000mm) for processing thicker logs, extra hammers for higher impact force, and integration with dust collection systems (to meet EU and US air quality standards). Our team works with you to design a solution that matches your specific feedstock and downstream requirements.
• Global Support & Training: Our technicians provide on-site installation and operator training (1-2 days) to ensure your team can operate and maintain the machine safely and efficiently. We also offer 24/7 technical support via phone, video call, or remote diagnostic tools, and our global spare parts network ensures fast delivery of liners, hammers, and screens (typically within 3-5 days).
• Durability Guarantee: The Heavy-Duty Wood Chip Hammer Mill comes with a 2-year warranty on the frame and rotor, and a 6-month warranty on wear parts (hammers, liners)—a testament to our confidence in the machine's build quality.
