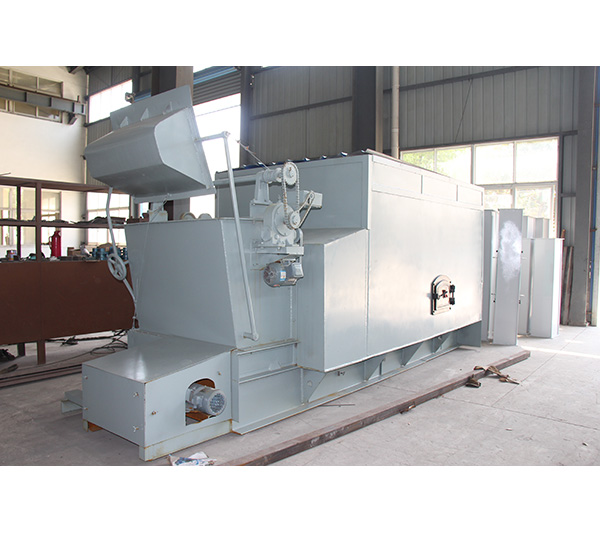

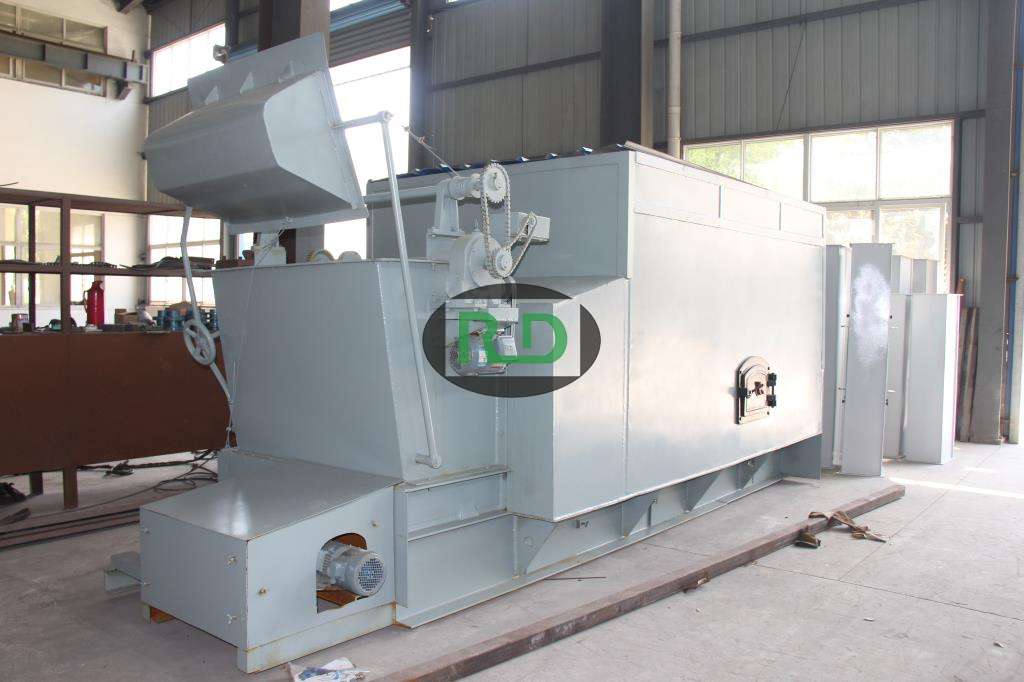

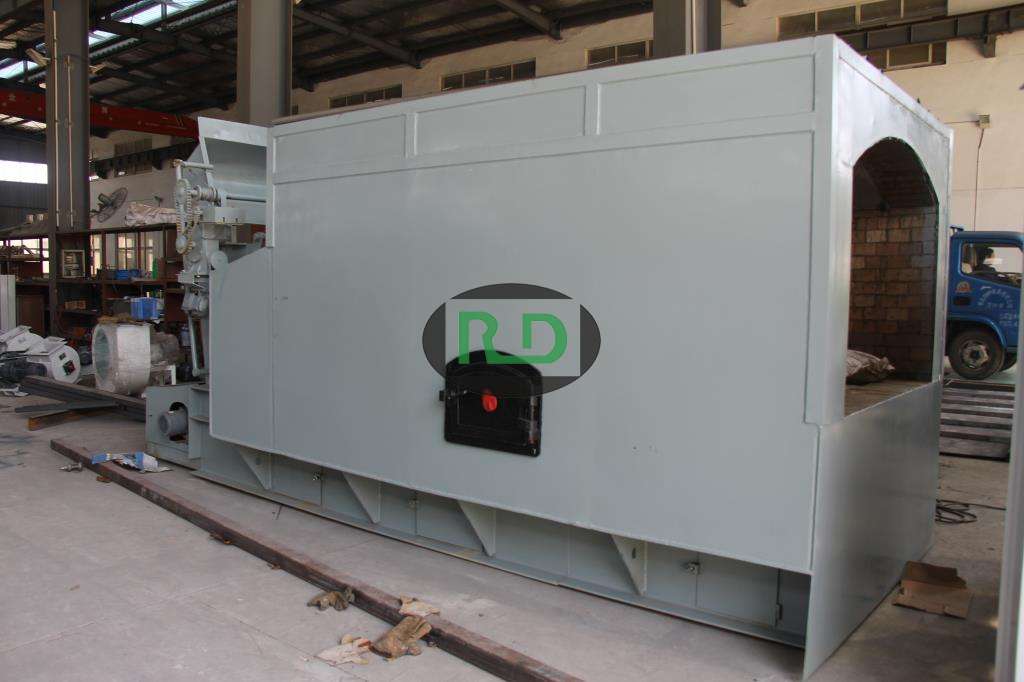

Rongda Mechanical Industrial Hot Blast Stove

Reliable Industrial Heating Solution - Multi-Fuel Hot Air Generator

Introduction: Advanced Industrial Heating

In industrial processes ranging from biomass pellet drying and grain storage to mineral processing and food dehydration, a reliable, high-temperature hot air supply is critical to ensuring product quality, reducing energy costs, and maintaining production efficiency. The Industrial Hot Blast Stove from RD Machinery is engineered to meet this foundational need, designed to generate clean, stable hot air (80-300°C adjustable) using a variety of fuels—including biomass pellets, coal, natural gas, and diesel. Built for continuous industrial operation, this stove caters to biomass plants, grain drying facilities, chemical factories, and food processing plants that require precise temperature control, high thermal efficiency, and low emissions to support their core workflows.

Why Choose Our Industrial Hot Blast Stove?

Industrial operations dependent on hot air often face three key challenges: inconsistent temperature output (which compromises product quality), high fuel consumption (increasing operational costs), and strict emission regulations (limiting fuel choices). Conventional hot blast stoves may excel at single-fuel use but lack flexibility, or deliver high temperatures but with poor thermal efficiency. The Industrial Hot Blast Stove addresses these pain points by combining a multi-fuel combustion system, advanced heat exchange technology, and intelligent temperature control. It maintains ±2°C temperature precision, achieves thermal efficiency of up to 90%, and complies with global emission standards (e.g., EU EN 15242, US EPA Tier 4) when using clean fuels like biomass pellets.

Key Features: Engineered for Precision, Efficiency, and Flexibility

The Industrial Hot Blast Stove is built to deliver consistent, cost-effective hot air across diverse industrial scenarios. Here's what sets it apart from conventional heating equipment:

Multi-Fuel Combustion System for Fuel Flexibility:

The stove features a modular combustion chamber compatible with four fuel types—biomass pellets (6-10mm), coal (bituminous, anthracite), natural gas (LNG/CNG), and diesel. A quick-change fuel feeder (completed in 1-2 hours by 2 operators) allows seamless switching between fuels based on availability, cost, and emission requirements. For example, biomass plants can use their own pellet output to reduce fuel costs, while facilities in emission-sensitive areas can switch to natural gas for zero particulate emissions.

Advanced Heat Exchange Technology for High Thermal Efficiency:

A three-pass smoke tube heat exchanger maximizes heat transfer between combustion gases and air: hot flue gases pass through inner, middle, and outer tubes, while cold air flows around the tubes in the opposite direction (countercurrent heat exchange). This design boosts thermal efficiency to 85-90%, reducing fuel consumption by 15-20% compared to single-pass stoves. The heat exchanger is made of 304 stainless steel (or 20G boiler steel for high-temperature models), resistant to corrosion from flue gases and high-temperature oxidation—extending service life to over 8 years with proper maintenance.

Precise Temperature Control & Stable Hot Air Output:

An intelligent PLC control system with a 7-inch touchscreen monitors and adjusts temperature in real time. Operators can set target temperatures (80-300°C) and airflow rates (5,000-50,000 m³/h), and the system automatically modulates fuel feed rate and fan speed to maintain ±2°C precision. A built-in temperature sensor at the hot air outlet provides feedback, ensuring stable output even when fuel quality or ambient temperature fluctuates.

Low-Emission Design for Environmental Compliance:

For biomass and coal combustion, the stove is equipped with a multi-cyclone dust collector (removing 95% of particulate matter) and a desulfurization device (reducing SO₂ emissions by 80%)—meeting EU and US emission standards. When using natural gas or diesel, a low-nitrogen burner (NOₓ emissions<30 mg/m³) ensures compliance with strict urban industrial regulations. A sealed combustion chamber and negative-pressure draft system prevent smoke leakage, maintaining a clean workshop environment and protecting operator health.

Robust Construction for Continuous Industrial Operation:

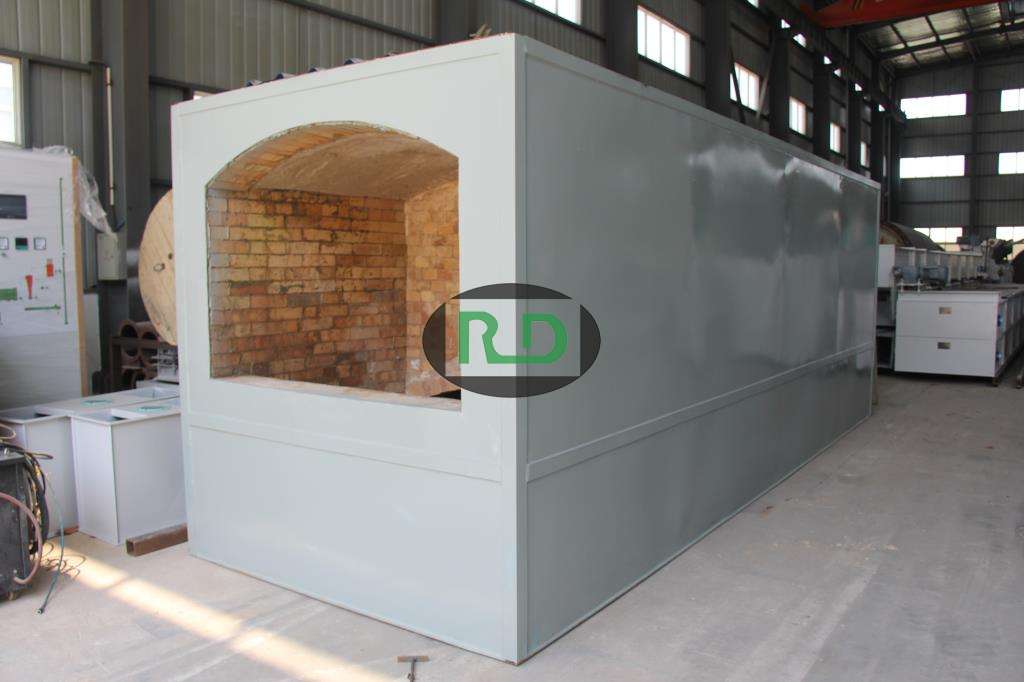

The stove's outer shell is made of 10mm thick Q345B steel with a high-temperature resistant paint coating (withstanding 400°C), preventing heat loss and corrosion. The combustion chamber is lined with high-alumina refractory bricks (resisting 1,500°C) to withstand intense heat during long-term operation. A water-cooled fire door prevents overheating and ensures safe access for ash cleaning.

Easy Maintenance & Ash Handling:

A mechanical ash conveyor (with adjustable speed) automatically removes ash from the combustion chamber, reducing manual labor and minimizing downtime for ash cleaning. The conveyor discharges ash into a sealed ash bin, preventing dust pollution. The heat exchanger features easy-access inspection hatches, allowing technicians to clean tube surfaces (to remove soot buildup) in 30 minutes—maintaining high thermal efficiency over time.

Technical Specifications: Model-by-Model Performance

The Industrial Hot Blast Stove is available in five models to match different heat output and airflow requirements. Below is a comprehensive parameter table:

Industry Applications: Powering Global Industrial Heating Needs

The Industrial Hot Blast Stove's versatility and precision make it a critical asset across diverse industrial sectors. Below are real-world case studies that demonstrate its impact:

1. Biomass Pellet Plant (HBS-50 Model)

Case Study: A biomass plant in Germany produces 25 tons of wood pellets daily, requiring 180°C hot air to dry wood chips (moisture content from 40% to 12%) before pelletizing. The plant installed the HBS-50 Hot Blast Stove, using its own pellet output as fuel. The stove delivers 500kW heat output and 35,000 m³/h airflow, maintaining ±2°C temperature precision—ensuring consistent chip drying and reducing pellet moisture variation from 5% to 1%. The stove's 89% thermal efficiency cuts fuel consumption by 18% compared to the plant's old coal-fired stove, saving €12,000/month in fuel costs.

2. Grain Drying Facility (HBS-30 Model)

Case Study: A grain storage facility in Canada processes 1,000 tons of wheat monthly, requiring 120°C hot air to dry wheat (moisture content from 20% to 13%) for long-term storage. The facility chose the HBS-30 Hot Blast Stove, switching between natural gas (during peak drying season) and biomass pellets (during off-peak) to optimize costs. The stove's quick-change fuel feeder allows switching in 90 minutes, and its ±2°C temperature control prevents wheat overheating (which damages gluten content). The facility's drying time per batch has been reduced by 25%, and fuel costs have dropped by €8,000/year compared to using a diesel-only stove.

3. Chemical Factory (HBS-80 Model)

Case Study: A chemical plant in China produces 50 tons of powdered detergent daily, requiring 250°C hot air to dry detergent slurry (moisture content from 60% to 5%). The plant installed the HBS-80 Hot Blast Stove, using natural gas for low emissions and stable combustion. The stove's 90% thermal efficiency and 50,000 m³/h airflow ensure uniform drying, reducing detergent clumping from 10% to 2%. The plant's desulfurization and dust collection system (paired with the stove) meets China's GB 13271-2014 emission standards, avoiding regulatory fines and improving workshop air quality.

4. Food Processing Plant (HBS-20 Model)

Case Study: A food plant in Italy produces 10 tons of dried pasta daily, requiring 80°C hot air to dry fresh pasta (moisture content from 30% to 12%) without cracking. The plant selected the HBS-20 Hot Blast Stove, using biomass pellets (sourced from local agricultural waste) to align with its sustainability goals. The stove's precise temperature control (±2°C) ensures gentle drying, reducing pasta breakage from 8% to 1%. The plant's carbon footprint has been reduced by 30% compared to using a natural gas-only stove, and it qualifies for local green energy subsidies—saving €5,000/year.

Why Choose Rongda Machinery? Your Partner for Industrial Heating Excellence

At Rongda Machinery, we understand that industrial heating equipment is a long-term investment—one that needs to align with your production goals, fuel availability, and environmental commitments. The Industrial Hot Blast Stove is backed by our commitment to customization, support, and reliability:

• Tailored Heating Solutions: We help you select the right model (HBS-10 to HBS-80) based on your heat output, airflow, and fuel preferences. For specialized needs, we offer customizations like a heat recovery system (capturing waste heat to pre-warm cold air, boosting efficiency by 5%), remote monitoring (via mobile app for off-site temperature tracking), and explosion-proof design (for hazardous environments like chemical plants).
• Global Industrial Support: Our technicians provide on-site installation, operator training (1-2 days), and preventive maintenance planning to ensure optimal stove performance. We offer 24/7 technical support via phone or video call, and our global spare parts network ensures fast delivery of critical components (heat exchanger tubes, burners, controllers) within 3-5 days for minimal downtime.
• Durability & Compliance Guarantee: Each Industrial Hot Blast Stove comes with a 3-year warranty on the heat exchanger and combustion chamber, and a 1-year warranty on electrical components. We also provide emission testing reports to ensure compliance with local regulations, helping you avoid regulatory risks.
