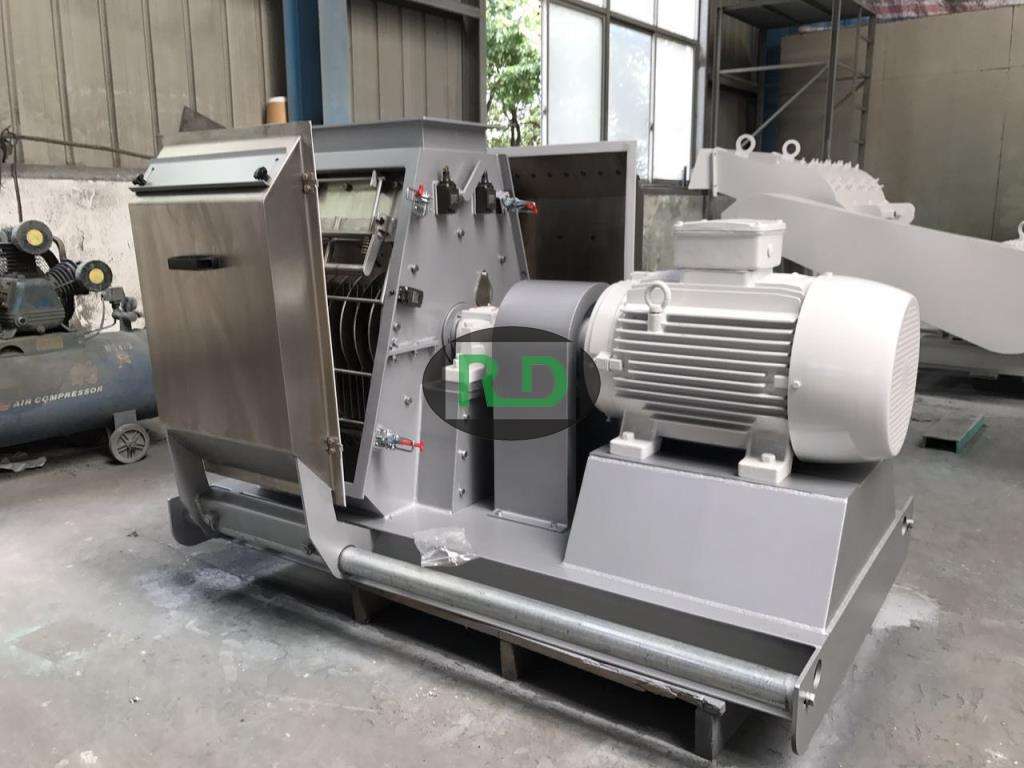

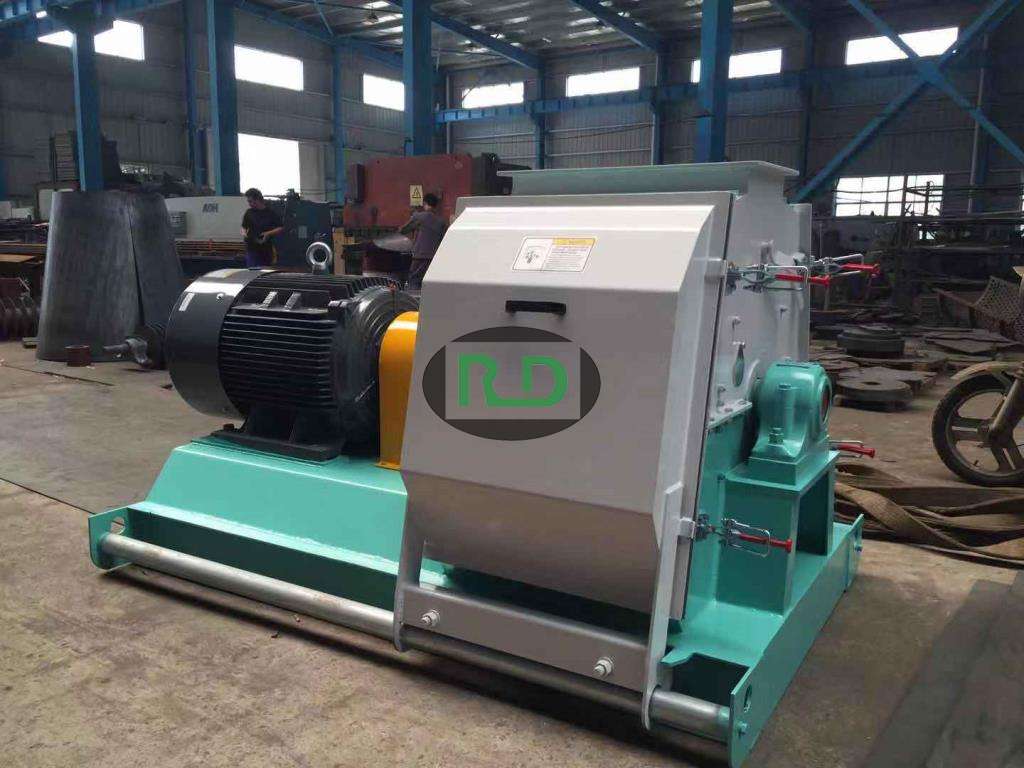

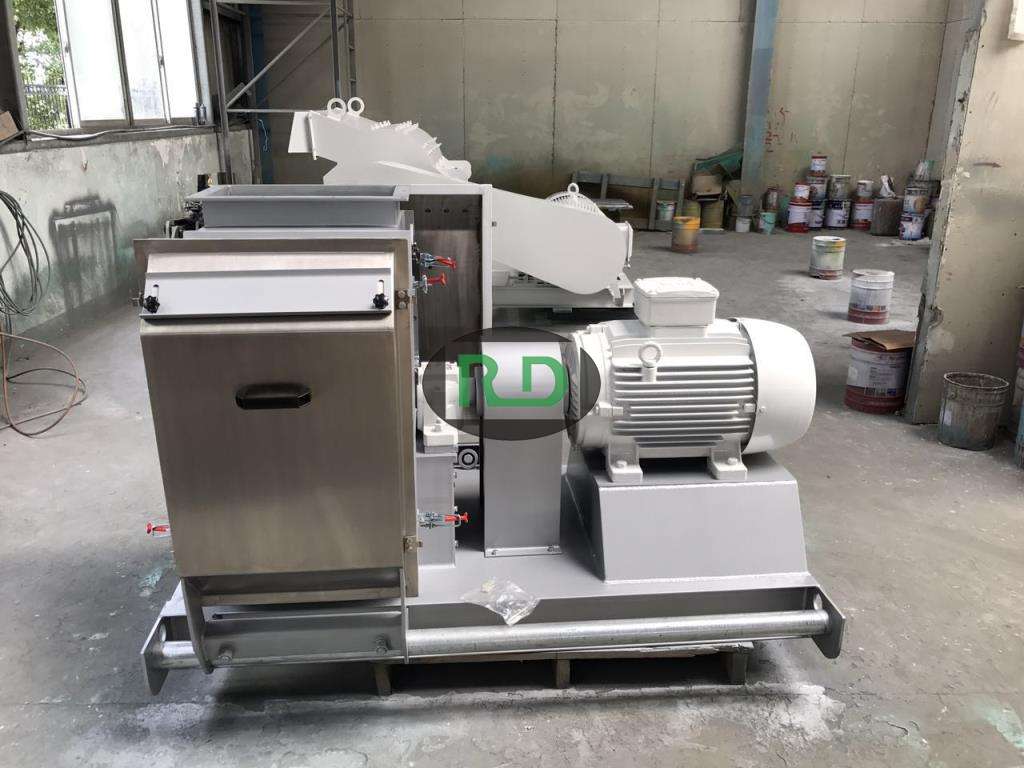

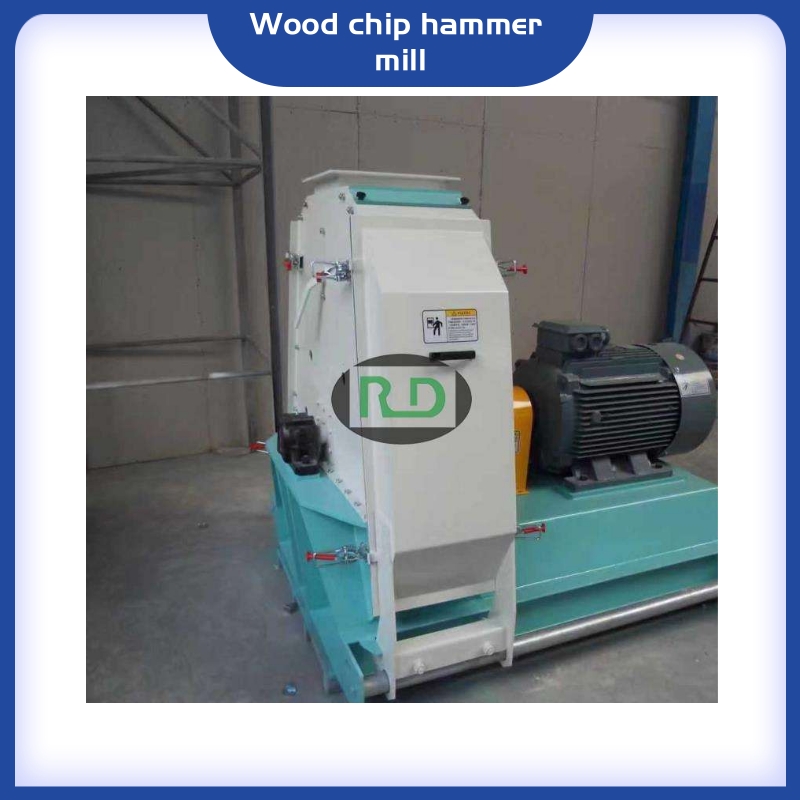

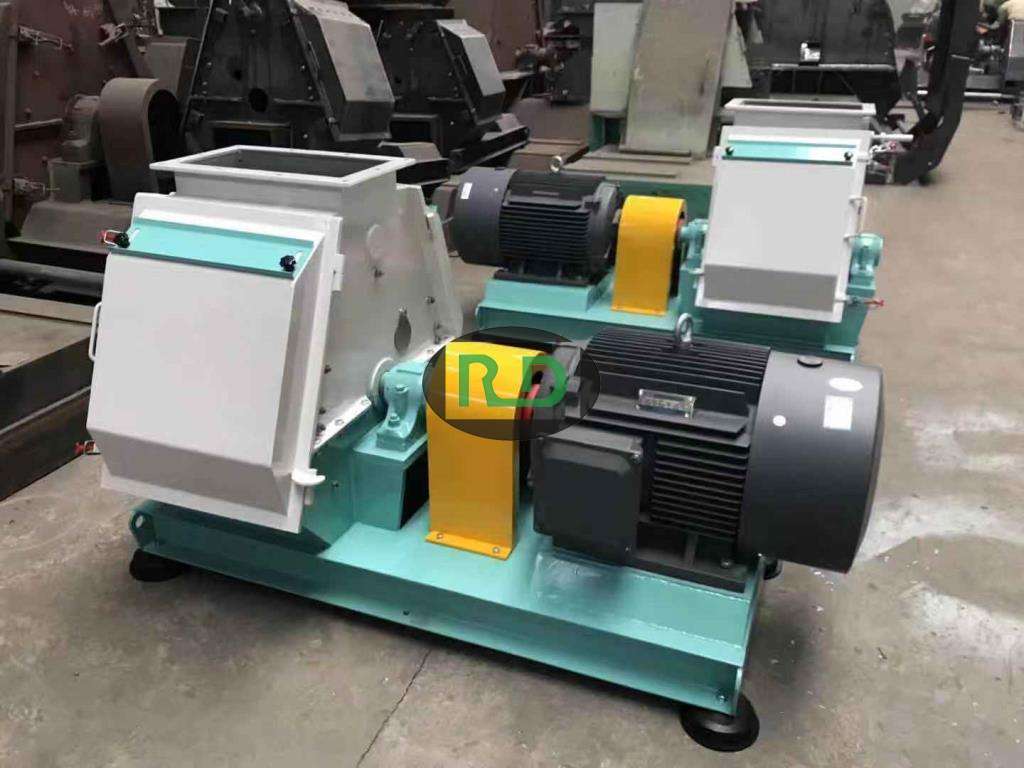

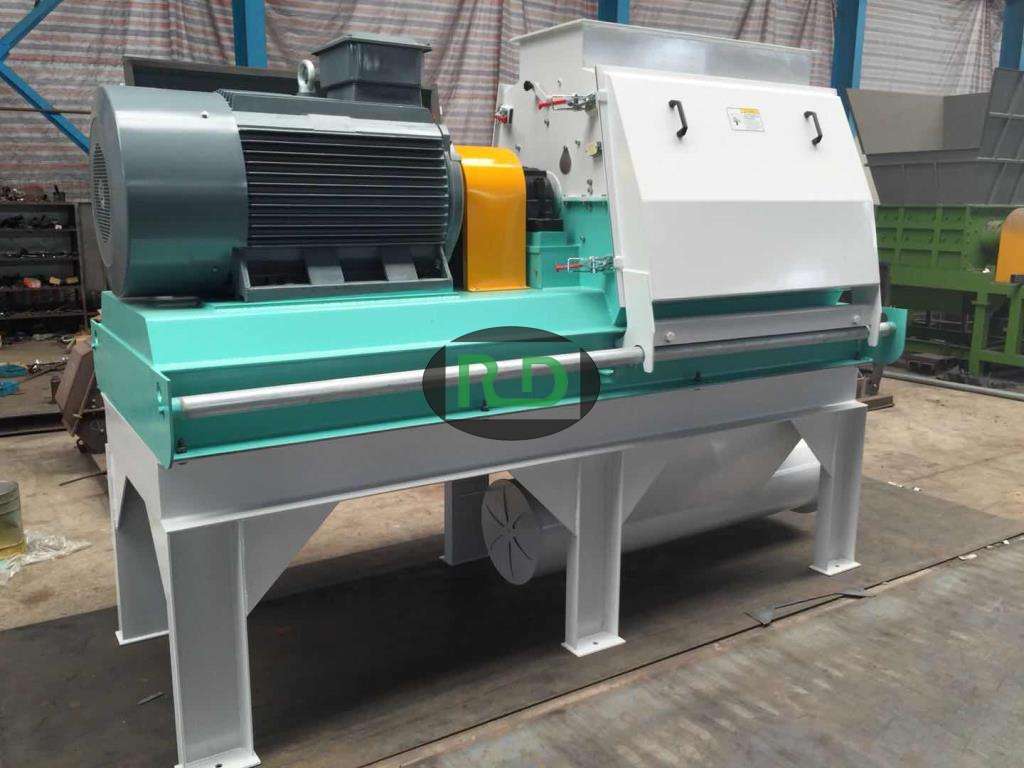

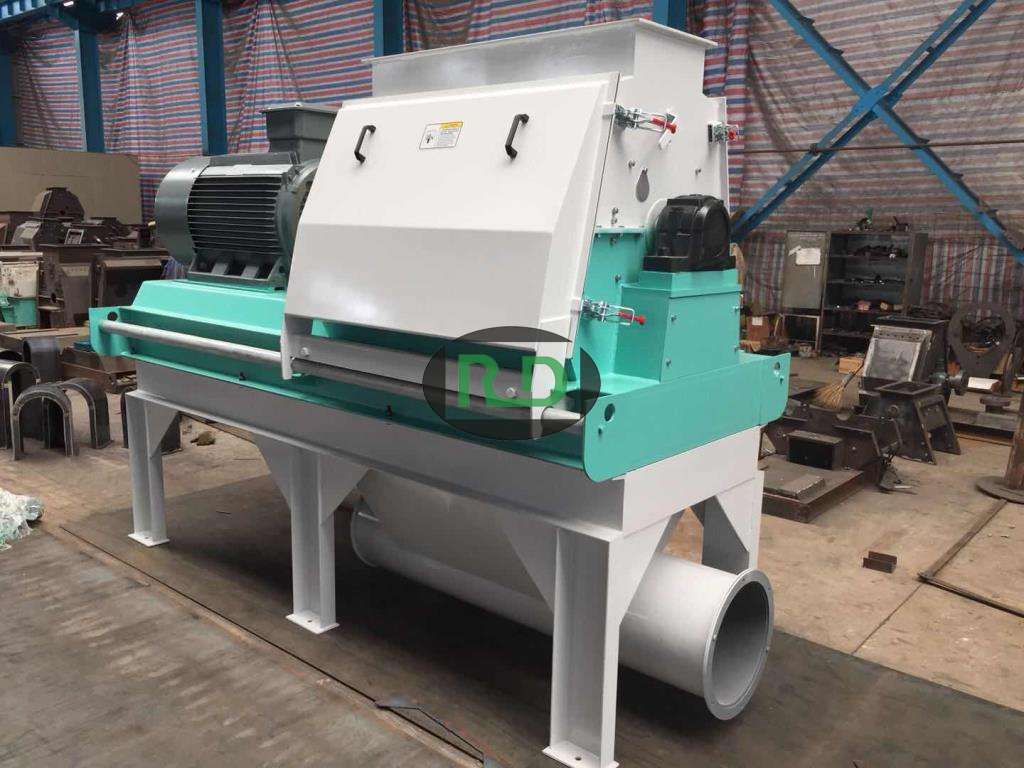

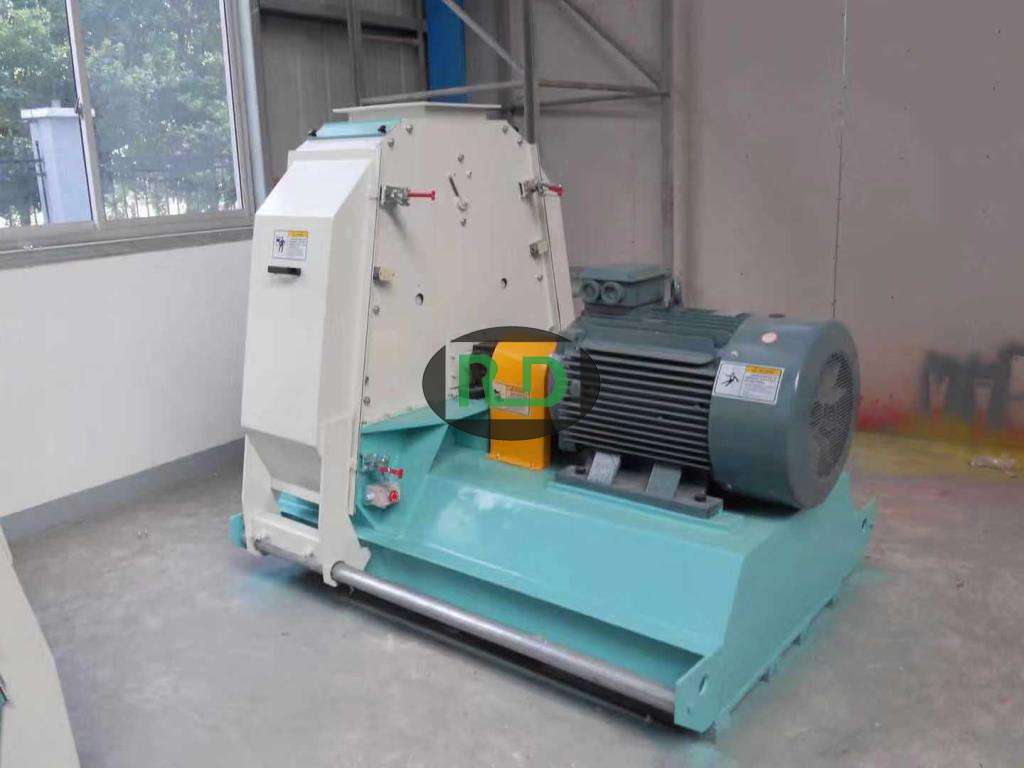

Rongda Mechanical Industrial Wood Chip Hammer Mill

Professional Industrial Wood Processing Solution - High-Capacity Hammer Mill

Introduction: Advanced Industrial Wood Processing

In the industrial landscape of biomass processing, large-scale woodworking, and waste management, the demand for high-capacity, reliable wood chipping equipment is non-negotiable. The Industrial Wood Chip Hammer Mill from RD Machinery is engineered to meet this demand head-on, designed for continuous, heavy-industrial operation. It transforms large wood materials—including full logs, thick branches, wood scraps, and recycled construction wood—into uniform, industry-standard chips (5-60mm adjustable size). Built with industrial-grade durability and high throughput in mind, this machine caters to large-scale biomass plants, industrial sawmills, paper and pulp factories, and municipal waste processing centers that require consistent, high-volume wood chipping to support their core operations.

Why Choose Our Industrial Wood Chip Hammer Mill?

Industrial wood processing operations face unique challenges: standard hammer mills can't keep up with massive material volumes, while low-quality equipment leads to frequent breakdowns, inconsistent chip quality, and costly production delays. The Industrial Wood Chip Hammer Mill solves these pain points by combining rugged industrial construction with smart, productivity-driven design. It handles a broad spectrum of wood types—from dense hardwoods (oak, maple) to softwoods (pine, spruce) and even contaminated recycled wood—while delivering uniform chips that meet the strict standards of downstream processes (e.g., pellet production, pulp manufacturing).

Key Features: Engineered for Industrial-Scale Performance

The Industrial Wood Chip Hammer Mill is built to withstand the relentless demands of 24/7 industrial operation. Here's what sets it apart from standard and mid-tier hammer mills:

Industrial-Grade Construction for Maximum Durability:

The mill's frame is constructed from 25mm thick high-tensile steel (Q460) with reinforced, double-welded joints at stress points—resisting vibration and deformation even during continuous high-volume processing. The crushing chamber (1500×1000mm) is lined with ultra-wear-resistant Mn18Cr2 manganese steel plates, which offer 400% longer service life than standard steel liners when processing abrasive hardwoods or recycled wood with minor contaminants.

High-Impact Hammer System for Efficient Crushing:

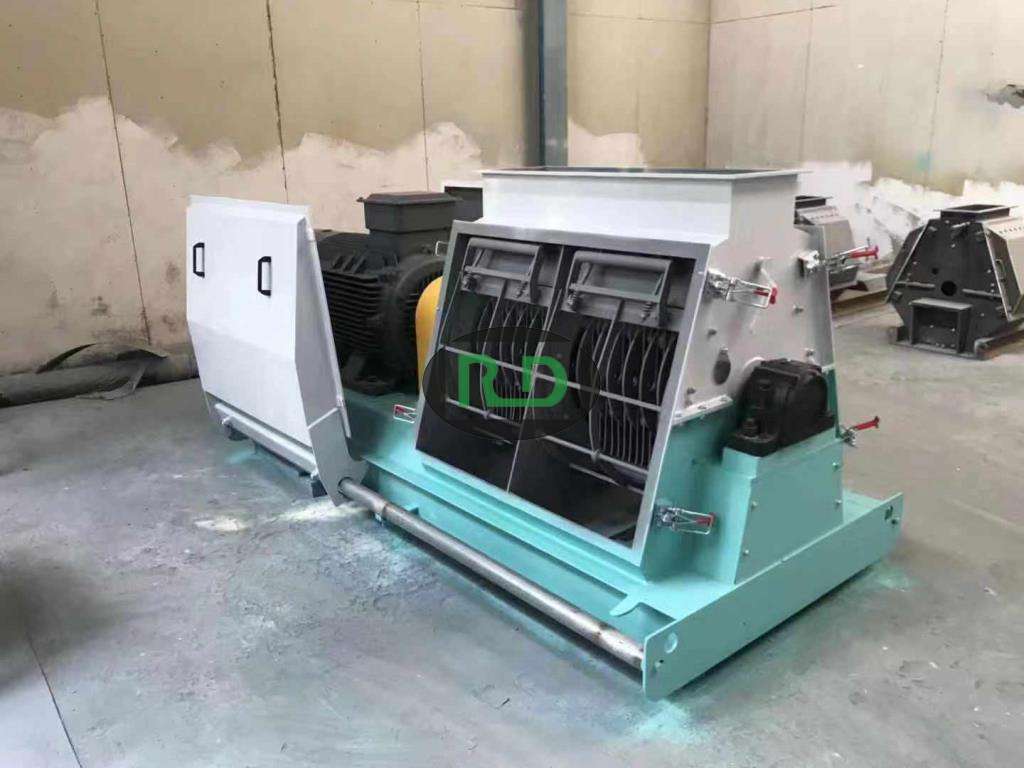

Equipped with 24 high-chromium alloy steel hammers (Cr25MoV), each weighing 12kg, the mill delivers exceptional impact force to break down thick logs and dense wood scraps. The hammers are mounted on a massive, dynamically balanced rotor (diameter 800mm) that operates at 1200 RPM—ensuring smooth operation with minimal vibration, even at maximum load. A reversible hammer design doubles service life: when one side wears, operators flip the hammers to continue processing, reducing replacement costs and cutting downtime by 50% compared to single-sided hammers.

Adjustable Chip Size for Versatile Industrial Applications:

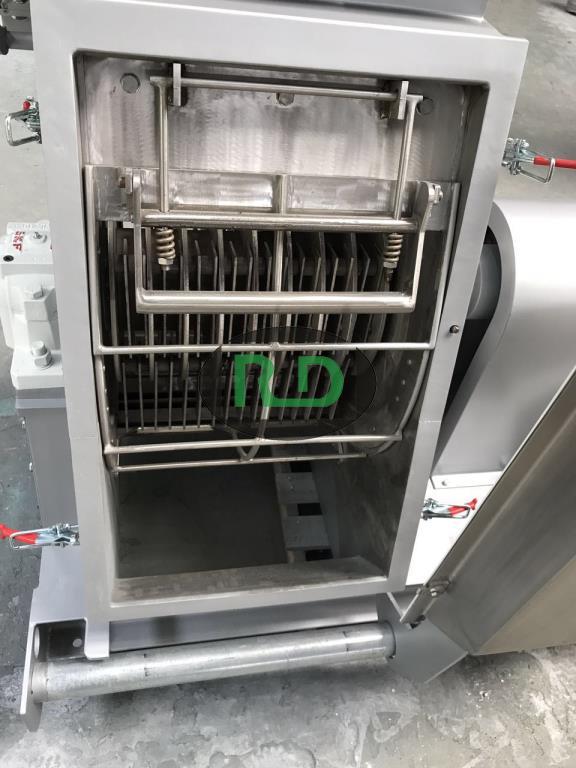

A modular screen system at the discharge port allows operators to customize chip size using interchangeable screens (5mm, 10mm, 20mm, 40mm, 60mm). This flexibility supports diverse downstream needs—from fine 5mm chips for biomass pellets to coarse 60mm chips for pulp production or industrial boiler fuel. Screen changes are completed in 45 minutes by a 2-person team, with no need for specialized lifting equipment.

Heavy-Duty Feeding & Industrial Safety Systems:

A hydraulic-driven, wide-belt feeding conveyor (1200mm belt width) with a 10m³ hopper ensures consistent material flow, even for irregularly shaped logs or bulky wood waste. The conveyor's variable-frequency drive (VFD) adjusts speed to match crushing capacity, preventing overloads and ensuring steady production. Safety features meet global industrial standards: a 15,000 Gauss magnetic separator at the feed inlet removes metal contaminants (nails, screws) from recycled wood, protecting the hammer system; dual emergency stop circuits (on the control panel and machine frame) shut down operations instantly; and thermal overload protectors for all motors prevent overheating during extended use.

Low-Maintenance Design for Industrial Uptime:

The mill's top cover is lifted by dual hydraulic cylinders, providing full access to the crushing chamber in 3 minutes—simplifying hammer replacement, screen changes, and cleaning. This eliminates the need for overhead cranes, reducing maintenance time by 60% compared to mills with manual covers. A fully automated centralized lubrication system delivers precise amounts of high-performance gear oil to bearings, the rotor shaft, and conveyor components every hour—ensuring optimal lubrication and extending bearing life to over 15,000 operating hours.

Energy Efficiency for Industrial Cost Savings:

The 132 KW main motor (optional 160 KW for higher capacity) is optimized for industrial load profiles, consuming 25-30% less energy than two mid-tier 75 KW mills when processing the same volume of wood. The motor's high starting torque ensures reliable operation even with fully loaded hoppers, while the VFD-fed conveyor minimizes energy waste by matching speed to material input.

Technical Specifications: Precision-Tuned for Industrial Operations

The Industrial Wood Chip Hammer Mill's specifications are tailored to meet the demands of 24/7 industrial wood processing. Below is a comprehensive parameter table:

Industry Applications: Powering Global Industrial Operations

The Industrial Wood Chip Hammer Mill's versatility and industrial-grade performance make it a critical asset across key sectors. Below are real-world case studies demonstrating its impact:

1. Large-Scale Biomass Pellet Plant (Hardwood/Softwood Processing)

Case Study: A biomass plant in Canada produces 50 tons of wood pellets daily for export to European industrial clients. The plant requires consistent 8mm chips to ensure pellet density meets ENplus A1 standards. Using the Industrial Wood Chip Hammer Mill with an 8mm screen, the plant processes 28 tons of mixed hardwood (maple, birch) and softwood (spruce) logs daily. The magnetic separator removes metal contaminants from recycled wood, preventing damage to downstream pellet mills. Since installation, the plant's pellet rejection rate has dropped from 10% to 1.5%, and maintenance costs for chipping equipment have fallen by 45%.

2. Industrial Sawmill (Wood Waste Monetization)

Case Study: A sawmill in Brazil processes 100 tons of eucalyptus logs daily to produce lumber for the construction industry. Previously, the sawmill paid 8,000/month to dispose of 30 tons of wood waste (offcuts, bark, small logs). After installing the Industrial Wood Chip Hammer Mill, the sawmill converts this waste into 20mm chips—sold to a local pulp mill for 0.08/kg, generating $19,200/month in revenue. The mill's Mn18Cr2 liners have withstood abrasive eucalyptus for over 12,000 operating hours, far exceeding the 3,000-hour life of their previous mill's liners.

3. Paper & Pulp Factory (Pulp Preparation)

Case Study: A pulp factory in Sweden produces 150 tons of paper pulp daily, requiring coarse 40mm wood chips. The factory installed two Industrial Wood Chip Hammer Mills (equipped with 40mm screens) to process 60 tons of pine logs daily. The mills' high throughput (25 T/h each) ensures a steady chip supply to the pulping line, eliminating bottlenecks that previously delayed production by 2 hours daily. The automated lubrication system reduces maintenance labor by 30%, and the reversible hammers cut hammer replacement costs by $20,000 annually.

4. Municipal Waste Processing Center (Recycled Wood Management)

Case Study: A municipal waste center in Germany processes 50 tons of construction and demolition waste daily, extracting 15 tons of recyclable wood. Using the Industrial Wood Chip Hammer Mill (with a 10mm screen and magnetic separator), the center converts this wood into chips—sold to a district heating plant for fuel. The mill's hydraulic feeder handles irregularly shaped wood (broken pallets, wooden beams), and the emergency stop system ensures operator safety when feeding bulky items. The center now diverts 100% of recyclable wood from landfills, meeting EU waste reduction targets and generating $3,600/month in chip sales.

Why Choose Rongda Machinery? Your Industrial Wood Processing Partner

At Rongda Machinery, we understand that industrial operations require equipment that delivers uncompromising reliability, scalability, and support. The Industrial Wood Chip Hammer Mill is backed by our commitment to industrial excellence:

• Customized Industrial Solutions: We offer tailored upgrades, including a 1800×1200mm extra-large crushing chamber for processing 500mm+ logs, additional hammers for higher impact force, and integration with industrial dust collection systems (meeting EU CE and US OSHA standards). Our team works with you to align the mill with your specific feedstock, throughput, and downstream process requirements.
• Global Industrial Support: Our certified technicians provide on-site installation, operator training (2-3 days), and preventive maintenance planning. We offer 24/7 technical support via phone, video call, or remote diagnostic tools, and our global spare parts network ensures delivery of critical components (liners, hammers, screens) within 24-48 hours for industrial emergencies.
• Industrial-Grade Warranty: The mill comes with a 3-year warranty on the frame and rotor, and a 1-year warranty on wear parts—reflecting our confidence in its ability to withstand continuous industrial use.
