Rongda Mechanical Pre-Cleaning Equipment

The First Line of Defense for Raw Material Processing - Multi-Stage Impurity Removal for Grain, Biomass, and Oilseed Industries

Introduction: Advanced Pre-Cleaning Solution

In the grain storage, feed production, biomass processing, and oilseed industries, the first step in raw material handling—removing large, bulky impurities (e.g., straw bundles, stones, plastic bags, metal scraps)—is critical to protecting downstream equipment, reducing production downtime, and ensuring product safety. Raw materials straight from farms or suppliers often contain these contaminants, which can jam grinders, damage pellet mill dies, or contaminate finished products if not removed early. The Pre-Cleaning Equipment from RD Machinery is engineered to handle this foundational task, combining a multi-stage separation system (screening + aspiration + magnetic separation) to remove 99% of large and medium impurities from bulk materials. Available in three models (PCE-8 to PCE-25) with capacities ranging from 8 to 25 tons per hour, this equipment caters to small-to-large scale operations—from local grain silos and regional feed mills to industrial biomass plants and oilseed processing facilities—that require reliable, low-maintenance pre-cleaning to safeguard their production lines.

Why Choose Our Pre-Cleaning Equipment?

Operations processing bulk raw materials face two costly challenges: unremoved impurities cause frequent equipment breakdowns (e.g., a single stone can crack a $10,000 pellet mill die) and manual pre-cleaning is labor-intensive (wasting 3-4 hours daily). Conventional pre-cleaners may remove large debris but miss hidden contaminants like metal fragments or lightweight plastics, while industrial systems are too complex and expensive for mid-sized operations. The Pre-Cleaning Equipment solves these pain points by offering multi-stage impurity removal, high throughput, and equipment protection. It operates at 99% impurity removal efficiency, reduces downstream equipment maintenance costs by 50%, and integrates seamlessly into raw material intake lines—ensuring only clean materials enter subsequent processing steps.

Key Features: Engineered for Efficiency, Protection, and Versatility

The Pre-Cleaning Equipment is built to deliver thorough, reliable impurity removal while adapting to diverse raw material types. Here's what sets it apart from conventional pre-cleaning tools:

Three-Stage Impurity Removal System:

The equipment uses a sequential process to target different types of contaminants, ensuring no impurity escapes:

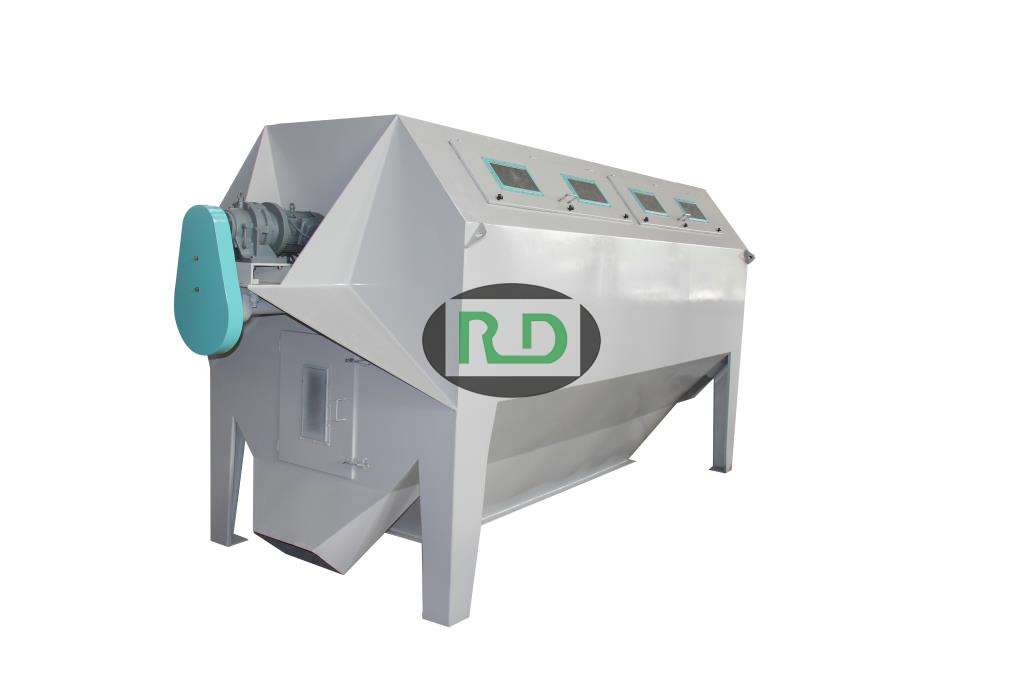

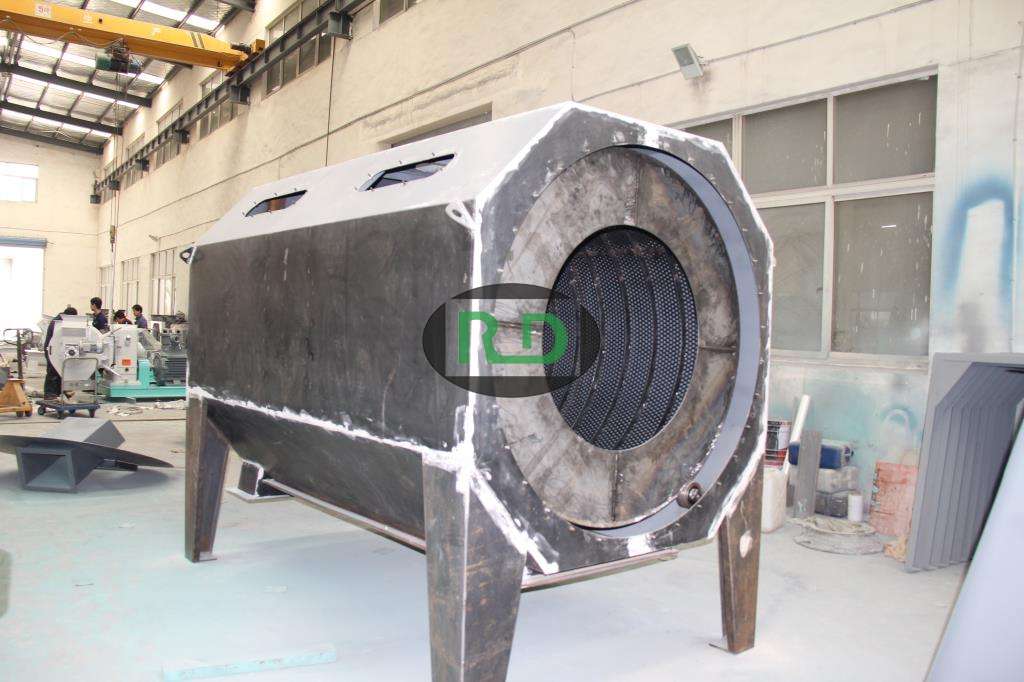

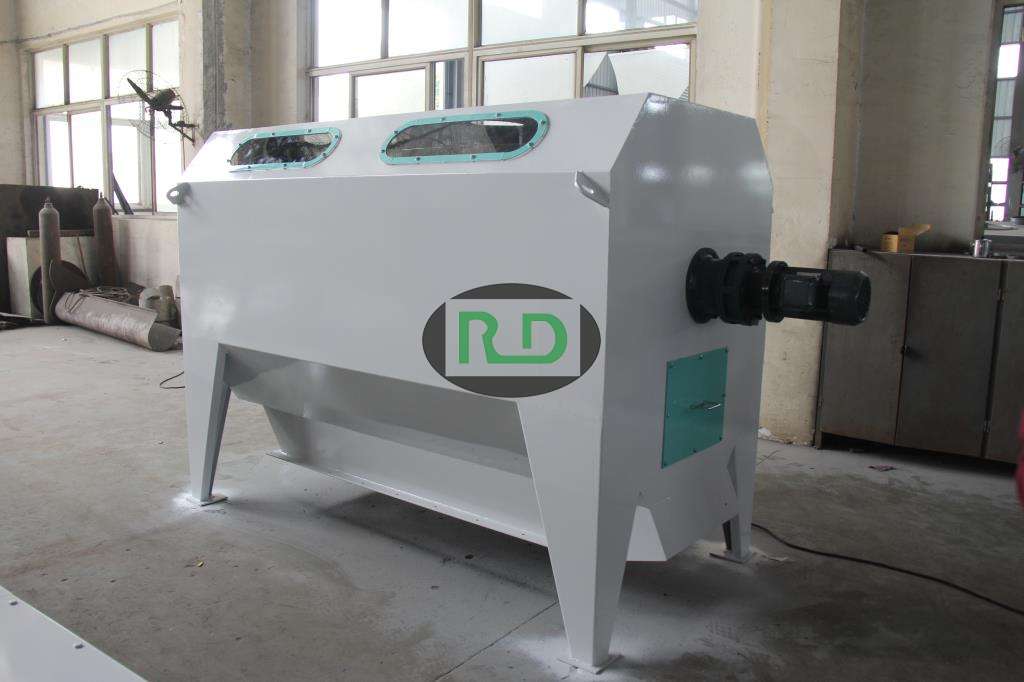

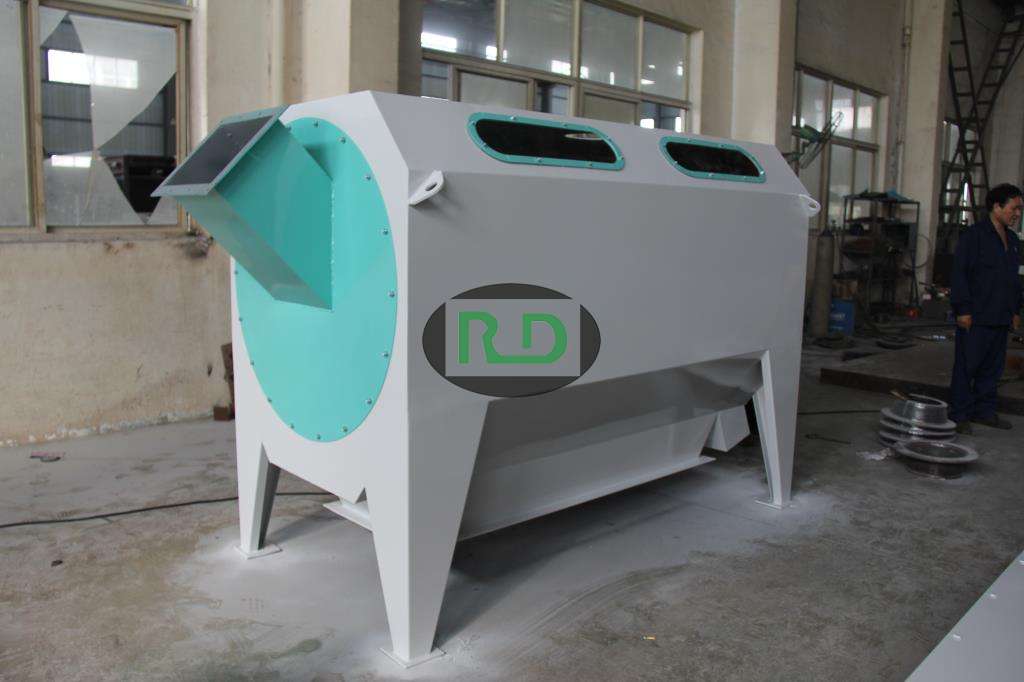

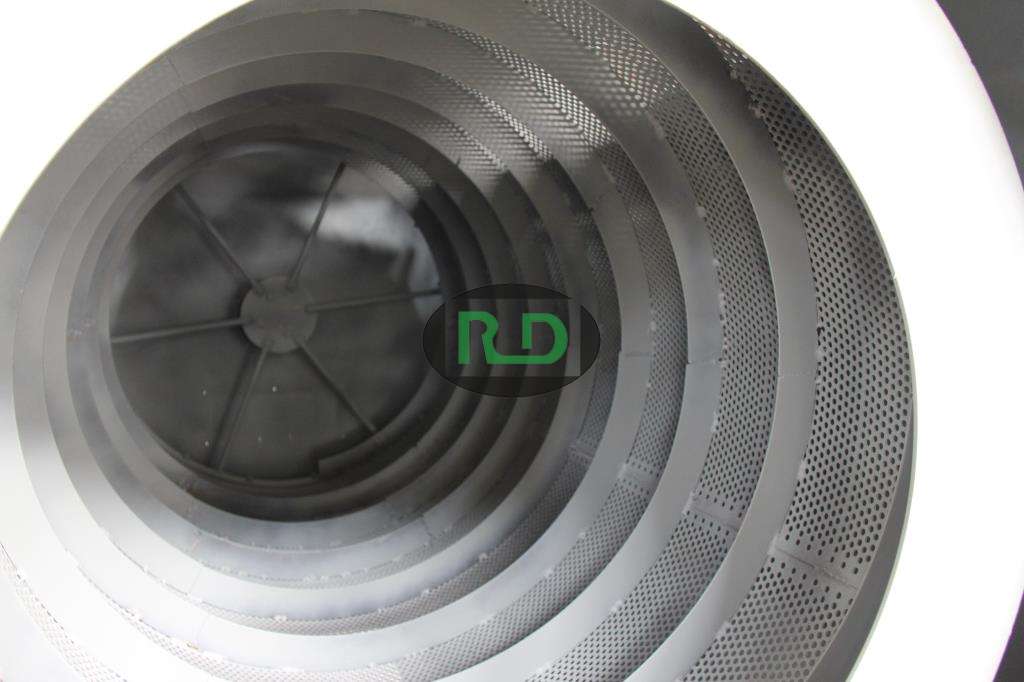

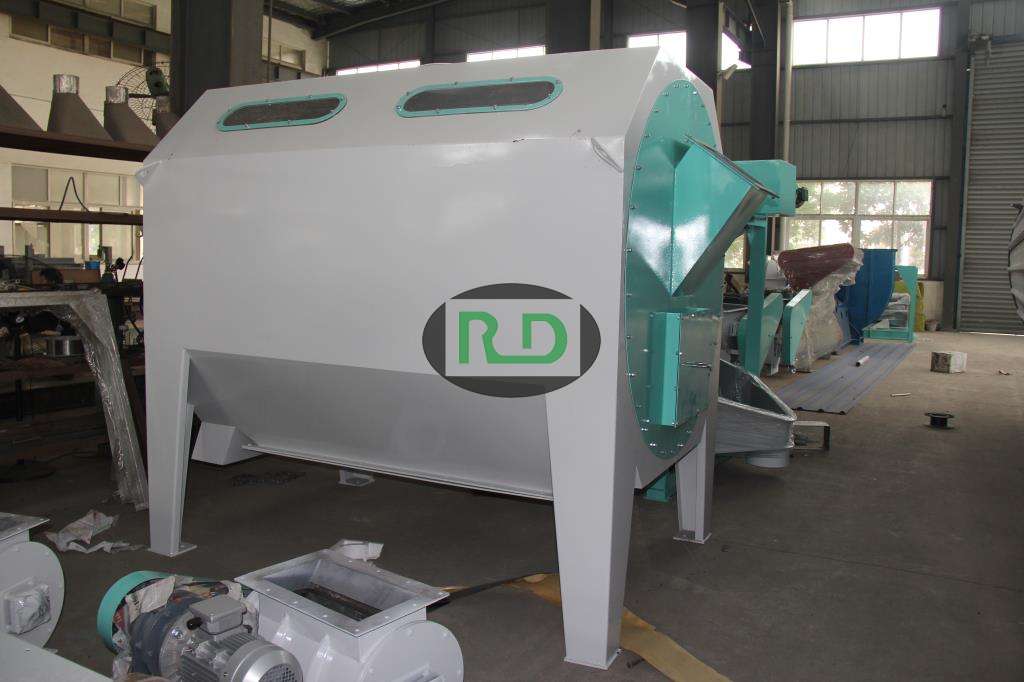

• Stage 1: Coarse Screening: A rotating cylindrical screen (diameter 600-1000mm, mesh size 20-50mm) separates large impurities (straw bundles, large stones, wooden sticks) from raw materials. The screen's gentle rotation (15-25 RPM) prevents material damage, while its self-cleaning design (built-in brush) eliminates clogging—even for high-moisture grain or biomass.
• Stage 2: Aspiration Separation: A high-powered fan (airflow 5000-12,000 m³/h) removes lightweight impurities (plastic fragments, chaff, dust) by suction. Adjustable air velocity (3-5 m/s) ensures only contaminants are pulled away, preserving valuable raw materials (e.g., no loss of small grain kernels).
• Stage 3: Magnetic Separation: A high-strength magnetic roller (15,000 Gauss) captures ferrous metal fragments (nails, wire, farm equipment scraps) that could damage downstream grinders or extruders. The magnetic roller is positioned at the equipment's outlet, ensuring final protection before materials move to processing.

Material-Specific Customization:

• Screen Mesh Size: 20mm mesh for grain (wheat, corn) to remove straw and small stones; 30-40mm mesh for biomass (wood chips, straw) to separate large branches; 50mm mesh for oilseeds (soybeans, sunflower seeds) to remove oversized stems.
• Airflow Adjustment: Lower air velocity (3 m/s) for lightweight grains (rice) to prevent kernel loss; higher velocity (5 m/s) for biomass to remove dense chaff.
• Food-Grade Options: For food-related applications (grain, oilseeds), all material-contacting parts (screen, chutes, magnetic roller housing) are made of 304 stainless steel—meeting FDA and EU 10/2011 standards to prevent contamination.

High Throughput & Space-Saving Design:

• Capacity Matching: The three models (8-25 TPH) align with common raw material intake rates—e.g., the PCE-25 handles 25 TPH, enough to supply a large feed mill's 20 TPH production line without bottlenecks.
• Compact Footprint: The equipment's vertical integration of three stages (screen → aspiration → magnetic separation) reduces floor space by 60% compared to separate standalone systems. For example, the PCE-15 occupies just 2.5×1.8m—ideal for facilities with limited intake area (e.g., small grain silos).
• Dust-Free Operation: A sealed housing and dust collection port (100mm diameter) connect to industrial dust extractors, preventing dust emission and meeting global air quality standards (EU EN 15251, US EPA 40 CFR Part 63).

Low Maintenance & Easy Operation:

• Quick Component Access: Removable side panels and a hinged top cover allow full access to the screen, fan, and magnetic roller—screen replacement takes 30 minutes, and magnetic roller cleaning (removing collected metal) takes 5 minutes.
• Minimal Moving Parts: The equipment uses only three key moving components (screen motor, fan motor, magnetic roller motor), reducing maintenance needs. Sealed bearings in all motors require lubrication only once every 6 months—cutting maintenance labor by 70% compared to complex pre-cleaning systems.
• Intuitive Controls: A simple 4-button control panel (start/stop, screen speed, fan speed) and LED status indicators make operation easy for untrained staff. No programming is required—perfect for rural facilities with limited technical expertise.

Safety & Durability:

• Safety Guards: All moving parts (rotating screen, fan blades) are enclosed in heavy-duty steel guards meeting EU CE and US OSHA standards. Emergency stop buttons are positioned on both the control panel and equipment frame for quick shutdown.
• Rugged Construction: The frame is made of 10mm thick Q345B steel, with anti-corrosion paint (epoxy coating) for outdoor or high-humidity environments (e.g., biomass plants with wet wood chips). The equipment's service life exceeds 10 years with proper maintenance.

Technical Specifications: Model-by-Model Performance

The Pre-Cleaning Equipment's specifications are tailored to each model's capacity and application scope. Below is a comprehensive parameter table:

Industry Applications: Protecting Operations Globally

The Pre-Cleaning Equipment's versatility makes it a critical asset across industries processing bulk raw materials. Below are real-world case studies that demonstrate its impact:

1. Grain Silo (PCE-15 Model)

Case Study: A grain silo in Ukraine stores 500 tons of wheat annually, receiving raw wheat from local farmers that contains straw, small stones, and occasional metal fragments from farm equipment. Before installing the PCE-15, the silo relied on manual cleaning—taking 4 hours daily and missing 15% of impurities. These impurities caused frequent jams in the silo's grain elevator, leading to 2 hours of weekly downtime. After installing the PCE-15 (25mm mesh, 4 m/s air velocity), the equipment removes 99% of impurities, eliminating elevator jams entirely. Manual labor is reduced to 30 minutes daily, and the silo's maintenance costs have dropped by 6,000 annually. Clean wheat also fetches a 5% premium from local bakeries—generating 2,500 in extra revenue yearly.

2. Biomass Pellet Plant (PCE-25 Model)

Case Study: A biomass plant in Canada produces 22 tons of wood pellets daily, using wood chips sourced from sawmills that contain large branches, bark chunks, and metal fasteners. Previously, these impurities damaged the plant's RD-768MX Biomass Pellet Mill die every 3 months (costing 8,000 per replacement). The plant installed the PCE-25 (35mm mesh, 5 m/s air velocity) to pre-clean wood chips before pelletizing. The equipment removes 99% of large branches and metal fragments, extending die life to 9 months—saving 16,000 annually. The plant also reports fewer pellet quality issues (no "dirty" pellets with bark), allowing it to sell pellets to European customers at a 10% premium.

3. Feed Mill (PCE-8 Model)

Case Study: A small feed mill in Thailand produces 10 tons of chicken feed daily, using corn, soybean meal, and rice bran that often contains straw, plastic fragments, and small stones. The mill's grinder frequently jammed due to stones, requiring 1 hour of weekly maintenance. After installing the PCE-8 (20mm mesh, 3.5 m/s air velocity), the equipment removes all stones and plastic, eliminating grinder jams. Feed quality has improved—chicken farmers report a 3% increase in egg production due to cleaner feed—and the mill's maintenance costs have dropped by $2,400 annually. The PCE-8's compact size fits in the mill's narrow intake area, making it a perfect fit for small-scale operations.

4. Oilseed Processing Plant (PCE-25 Model)

Case Study: An oilseed plant in Argentina processes 20 tons of sunflower seeds daily, extracting oil for local markets. Raw sunflower seeds contain large stems, soil clods, and metal fragments from harvest equipment—impurities that damaged the plant's dehulling machine, requiring monthly repairs. The plant installed the PCE-25 (50mm mesh, 4.5 m/s air velocity) with food-grade 304 SS parts. The equipment removes 99% of impurities, eliminating dehulling machine damage and meeting Argentina's ANMAT food safety standards. Oil yield has increased by 2% (impurities no longer absorb oil), and the plant has expanded to supply two new supermarkets—generating $1,800 in additional monthly revenue.

Why Choose Rongda Machinery? Your Partner for Reliable Pre-Cleaning

At Rongda Machinery, we understand that pre-cleaning is the foundation of efficient, cost-effective raw material processing. The Pre-Cleaning Equipment is backed by our commitment to customization, support, and durability:

• Tailored Solutions: We help you select the right model (PCE-8 to PCE-25) and customize features (mesh size, material, airflow) based on your raw material type, capacity, and regulatory requirements. For example, we offer cold-resistant motors for polar regions (e.g., Canadian grain silos) and corrosion-resistant 316 SS parts for coastal facilities (e.g., Argentine oilseed plants near the ocean).
• Global Technical Support: Our technicians provide on-site installation, operator training (half-day), and preventive maintenance plans. We offer 24/7 technical support via phone or video call, and our global spare parts network ensures fast delivery of screens, fans, and magnetic rollers (typically within 3-5 days) to minimize downtime.
• Durability & Compliance Guarantee: Each Pre-Cleaning Equipment unit comes with a 2-year warranty on the frame and motors, and a 1-year warranty on consumable parts (screen mesh, magnetic roller). We provide compliance documentation (CE, ISO 9001, FDA for food-grade models) to help you meet local industry regulations.
