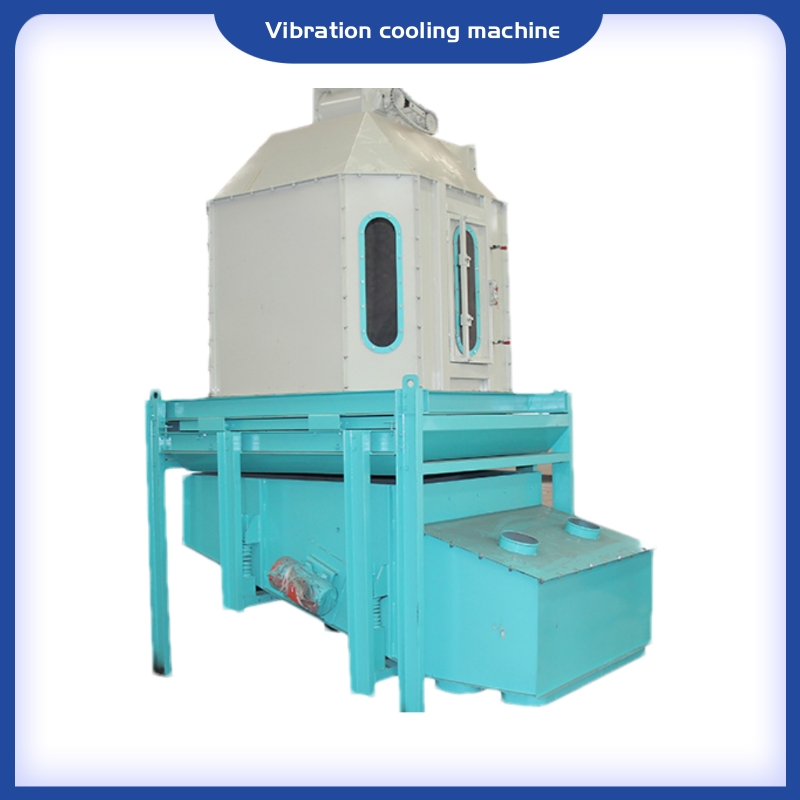

Rongda Mechanical Vibratory Cooling Machine

Efficient Post-Processing Cooling Solution - Vibratory Cooling System

Introduction: Advanced Post-Processing Cooling

In the biomass pellet production, feed processing, and mineral refining industries, cooling hot finished products (e.g., biomass pellets, feed pellets, mineral granules) from 60-90°C to ambient temperature (20-30°C) is a critical post-processing step. Hot products not only cause moisture condensation and mold growth during storage but also risk damaging packaging materials and reducing product shelf life. The Vibratory Cooling Machine from RD Machinery is engineered to solve this challenge, using high-frequency vibration and forced air circulation to cool bulk materials efficiently while preserving their integrity. Built for continuous industrial operation, this machine caters to biomass pellet plants, feed mills, and mineral processing facilities that require fast, uniform cooling to optimize product quality and storage stability.

Why Choose Our Vibratory Cooling Machine?

Operations handling hot bulk materials often face three critical pain points: slow cooling (bottlenecking production lines), uneven temperature distribution (leading to partial mold growth), and product breakage (reducing yield). Conventional cooling methods like natural air-drying are too slow for high-volume operations, while rotary coolers risk damaging fragile pellets or granules. The Vibratory Cooling Machine addresses these issues by combining gentle vibration (to prevent breakage) with multi-layer air circulation (for fast, uniform cooling). It achieves cooling efficiency of up to 95%, reduces cooling time by 60% compared to natural drying, and maintains product integrity with a breakage rate below 1%—critical for preserving the value of high-quality biomass or feed pellets.

Key Features: Engineered for Speed, Uniformity, and Product Protection

The Vibratory Cooling Machine is built to tackle the unique challenges of bulk material cooling, balancing high efficiency with gentle handling. Here's what sets it apart from conventional cooling equipment:

Dual-Action Cooling: Vibration + Forced Air Circulation:

The machine uses a high-frequency vibrator (1,500-3,000 RPM) to create gentle, uniform vibration that spreads materials into a thin, even layer (50-100mm thickness) on the cooling bed. Simultaneously, a multi-fan air system (3-8 fans, depending on model) blows ambient air from below the bed through the material layer, while exhaust fans remove hot, moist air from above. This "bottom-up air flow + top exhaust" design ensures every particle is exposed to cooling air, eliminating temperature gradients and reducing cooling time from 2-3 hours (natural drying) to 15-30 minutes.

Gentle Vibration for Minimal Product Breakage:

The vibrator uses an eccentric block design to generate low-amplitude (3-5mm) vibration, which moves materials forward without violent shaking. This gentle motion is critical for fragile products like biomass pellets (6-10mm) or feed pellets, keeping breakage rates below 1%—far lower than rotary coolers (5-8% breakage). The cooling bed is lined with food-grade polyurethane (PU) material (or 304 stainless steel for high-corrosion environments), which further protects products from scratches or impact damage.

Adjustable Parameters for Diverse Materials:

A variable-frequency drive (VFD) allows operators to adjust vibration frequency (1,500-3,000 RPM) and material forward speed (0.2-0.8 m/min) based on material type: slower speeds for dense minerals, faster speeds for light biomass pellets. Air flow rate (5,000-30,000 m³/h) can be adjusted via fan speed controls, ensuring optimal cooling for materials with different heat capacities—e.g., higher air flow for high-temperature mineral granules, lower flow for moderately hot feed pellets.

Easy Cleaning & Low Maintenance Design:

The cooling bed features a tiltable structure (30° angle) that allows quick removal of residual materials or debris—completed in 15 minutes by one operator. Removable side panels provide access to fans and air ducts for periodic cleaning, preventing dust buildup that reduces cooling efficiency. The vibrator and fans use sealed bearings (NSK or SKF) that require lubrication only once every 3 months, reducing maintenance labor by 70% compared to equipment with open bearings.

Compact Layout for Seamless Production Line Integration:

The machine's low-profile design (height 1.2-1.8m) and modular structure allow easy integration into existing production lines—typically installed between the pellet mill/extruder and packaging machine. It requires minimal floor space (1.5-5 m², depending on model), making it suitable for both new facilities and retrofits of older plants.

Technical Specifications: Model-by-Model Performance

The Vibratory Cooling Machine is available in five models (VCM-10 to VCM-80) to match different production capacities and material types. Below is a comprehensive parameter table:

Industry Applications: Powering Global Post-Processing Operations

The Vibratory Cooling Machine's versatility makes it a critical asset across industries dependent on efficient bulk material cooling. Below are real-world case studies that demonstrate its impact:

1. Biomass Pellet Plant (VCM-50 Model)

Case Study: A biomass plant in Germany produces 12 tons of wood pellets daily, with pellets exiting the RD-768MX Biomass Pellet Mill at 80-85°C. The plant installed the VCM-50 Vibratory Cooling Machine to cool pellets to 25-30°C before packaging. The machine reduces cooling time to 20 minutes (vs. 2 hours of natural drying), eliminating production bottlenecks. The gentle vibration keeps pellet breakage below 0.8%, and the uniform cooling prevents moisture condensation in 25kg bags—reducing mold-related product loss from 5% to 0.5%. The plant estimates annual savings of €12,000 from reduced waste and increased production throughput.

2. Feed Mill (VCM-30 Model)

Case Study: A feed mill in Brazil produces 6 tons of chicken feed pellets daily, with pellets exiting the extruder at 75-80°C. The mill installed the VCM-30 to cool pellets to 25°C, as hot pellets were melting plastic packaging and causing mold growth in storage. The machine's food-grade PU bed ensures no contamination of feed, and the adjustable air flow rate (15,000 m³/h) cools pellets uniformly. The mill's packaging line now operates continuously (no more waiting for cooling), and feed shelf life has extended from 30 days to 60 days—reducing returns from customers by 80%.

3. Mineral Processing Facility (VCM-80 Model)

Case Study: A mineral facility in Australia processes 20 tons of iron ore granules daily, with granules exiting the dryer at 85-90°C. The facility uses the VCM-80 to cool granules to 30°C before storage, as hot granules were damaging steel storage bins and causing safety hazards for workers. The machine's 304 stainless steel bed resists corrosion from mineral dust, and the high air flow rate (28,000 m³/h) cools dense iron ore efficiently. The facility's storage bin maintenance costs have dropped by 40%, and worker safety incidents related to hot materials have been eliminated.

4. Small Biomass Plant (VCM-20 Model)

Case Study: A small biomass plant in Canada produces 4 tons of alfalfa pellets daily for animal bedding, with pellets exiting the mill at 70-75°C. The plant installed the VCM-20 to replace natural air-drying, which previously took 1.5 hours and required extra floor space. The VCM-20 cools pellets to 27°C in 18 minutes, freeing up floor space and allowing the plant to add a second packaging line. The gentle vibration keeps pellet integrity intact, and the plant's customers (livestock farms) report less dust in bedding—improving animal health and increasing repeat orders by 25%.

Why Choose Rongda Machinery? Your Partner for Efficient Cooling Solutions

At Rongda Machinery, we understand that cooling is a critical link in your production chain—one that needs to align with your throughput, material type, and quality standards. The Vibratory Cooling Machine is backed by our commitment to customization, support, and reliability:

• Tailored Cooling Solutions: We help you select the right model (VCM-10 to VCM-80) and bed material (PU for food/biomass, 304 SS for minerals) based on your product type and capacity. For specialized needs, we offer upgrades like a dust collection port (to capture fine particles during cooling), a temperature alarm (alerting operators to abnormal outlet temperatures), and an automatic material level sensor (preventing overloading the cooling bed).
• Global Industrial Support: Our technicians provide on-site installation, operator training (1 day), and preventive maintenance guidance to ensure optimal machine performance. We offer 24/7 technical support via phone or video call, and our global spare parts network ensures fast delivery of critical components (vibrator bearings, fans, PU bed liners) within 3-5 days for minimal downtime.
• Durability & Quality Guarantee: Each Vibratory Cooling Machine comes with a 2-year warranty on the frame and vibrator, and a 1-year warranty on electrical components (fans, VFD). We also provide periodic maintenance checks (annually) to ensure the machine maintains peak cooling efficiency long-term.
