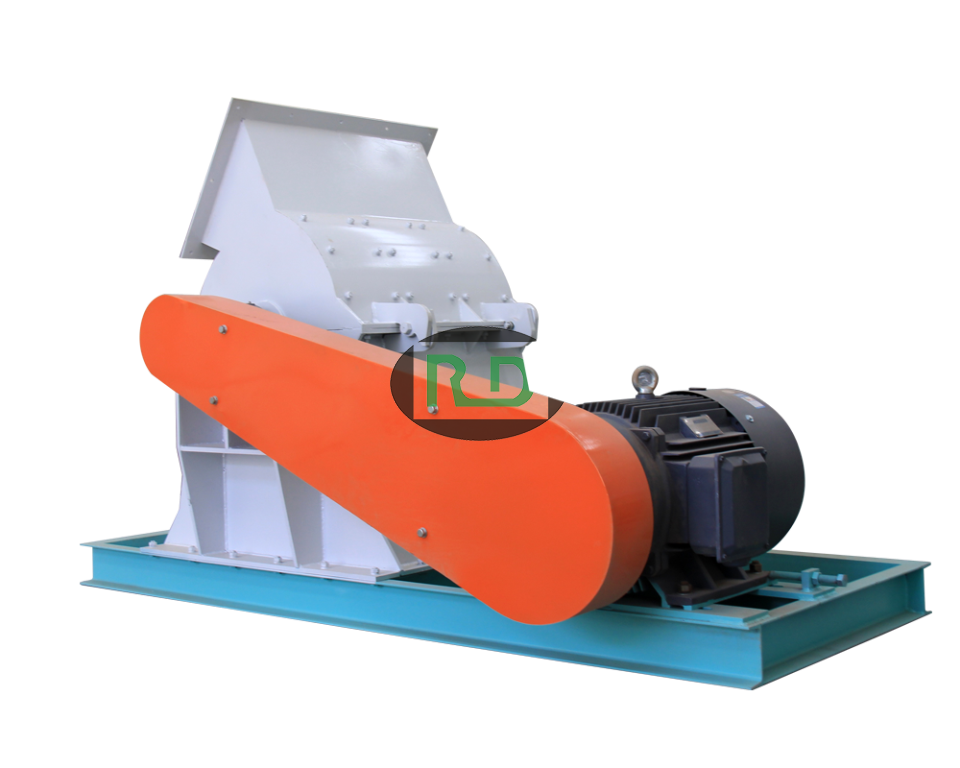

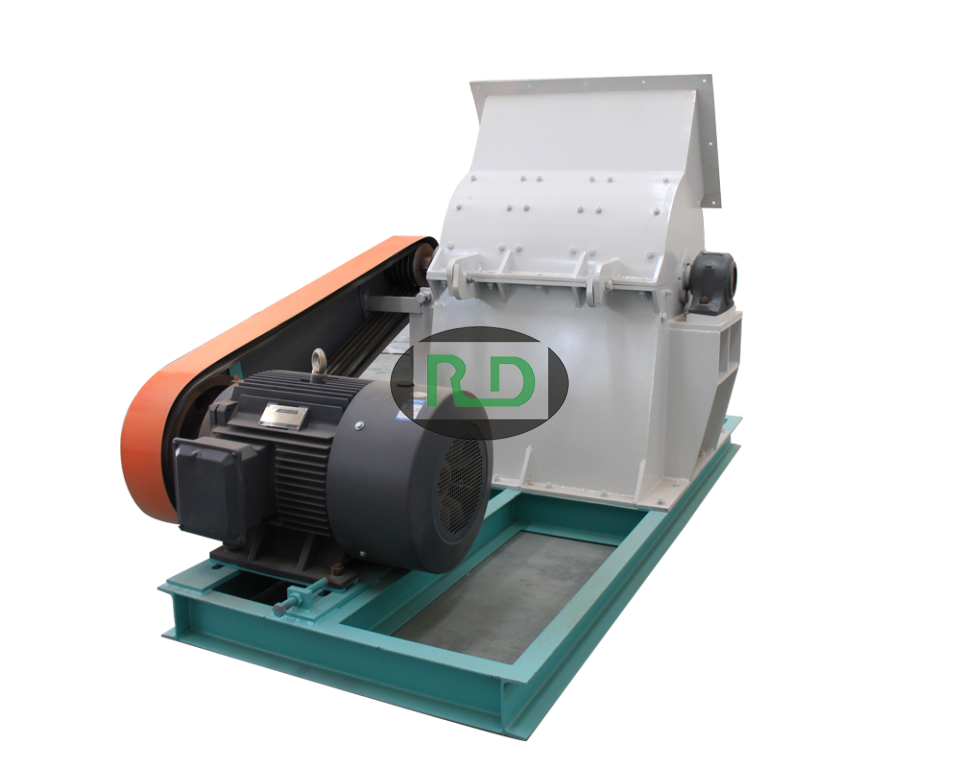

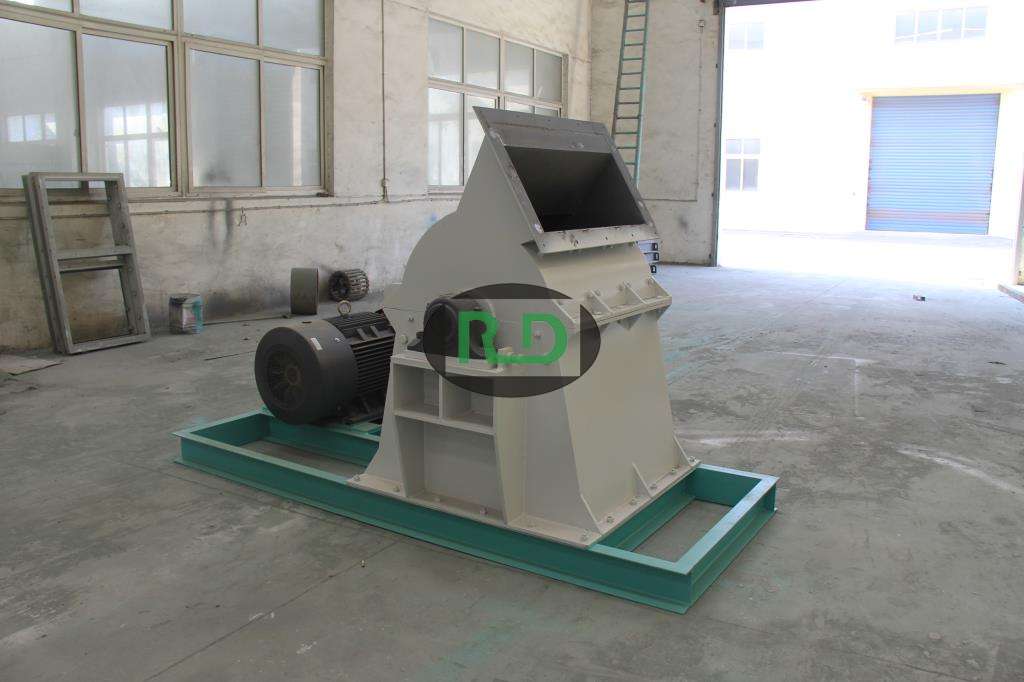

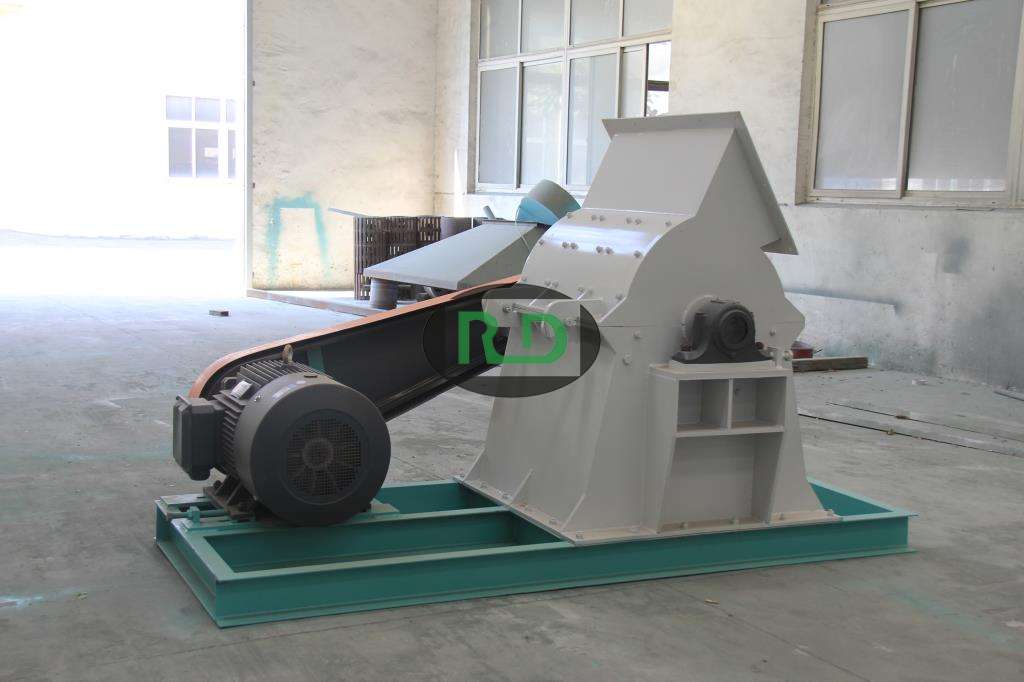

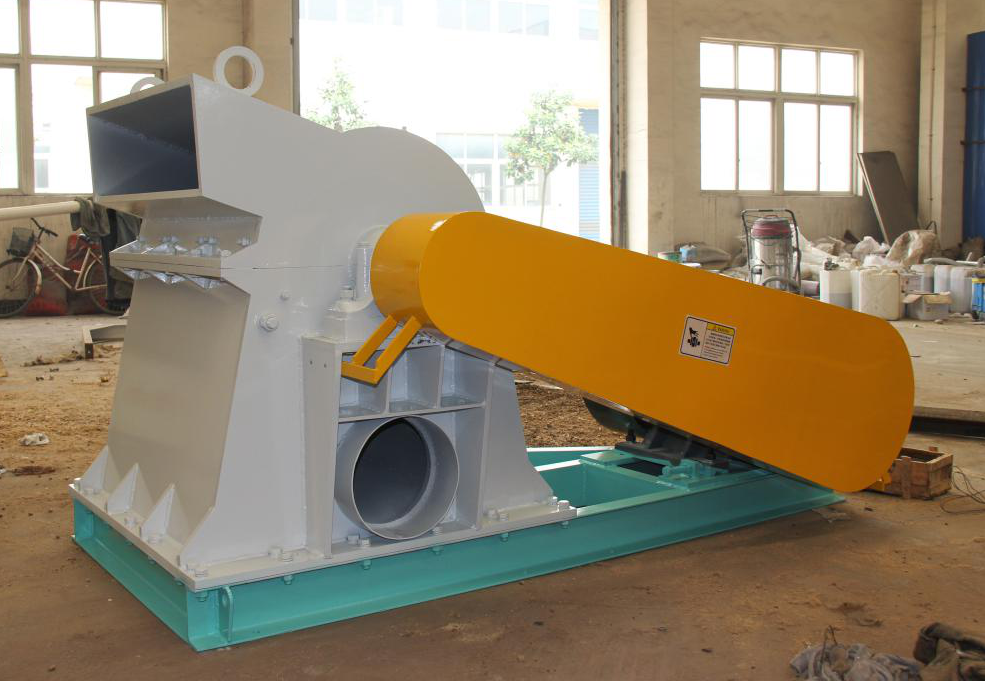

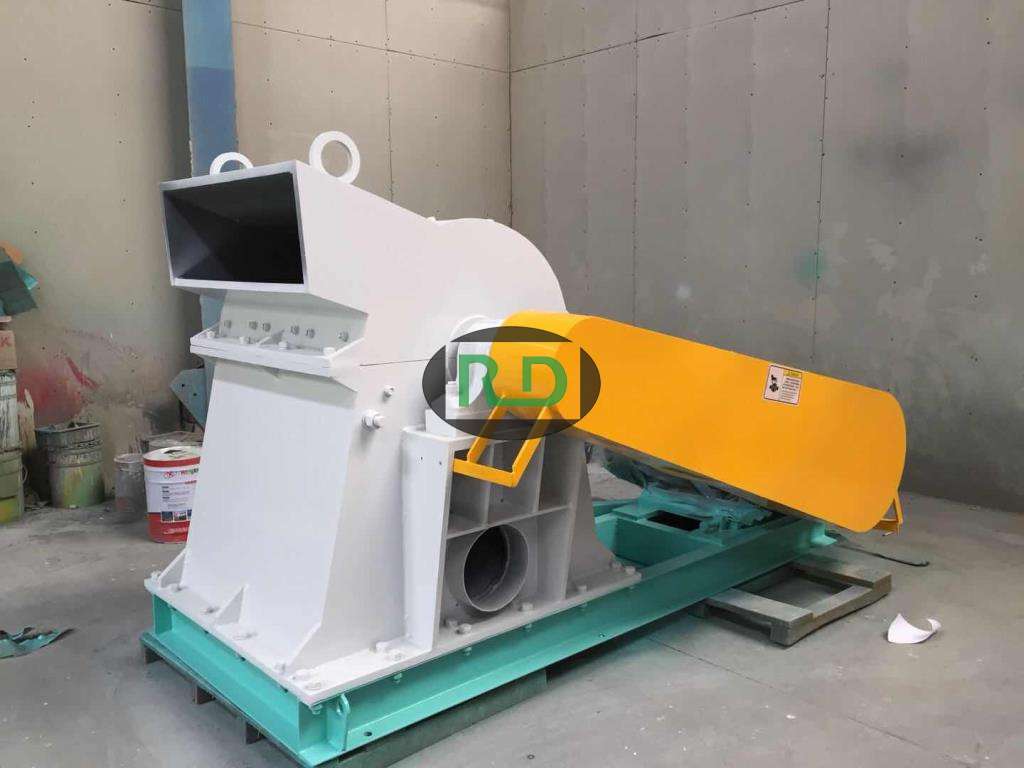

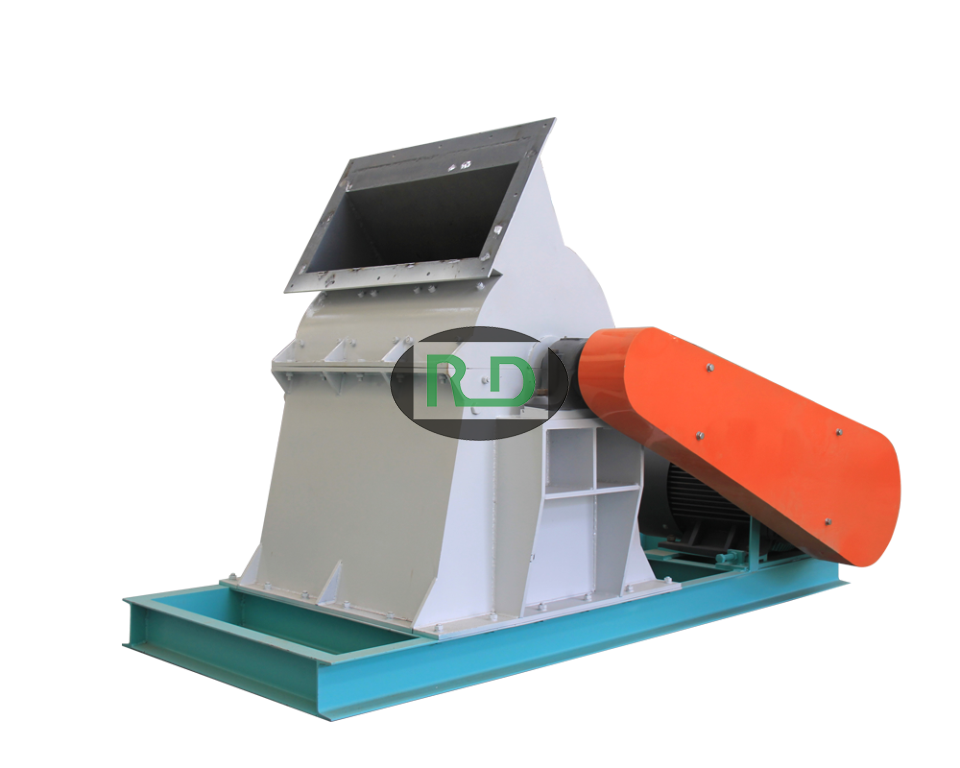

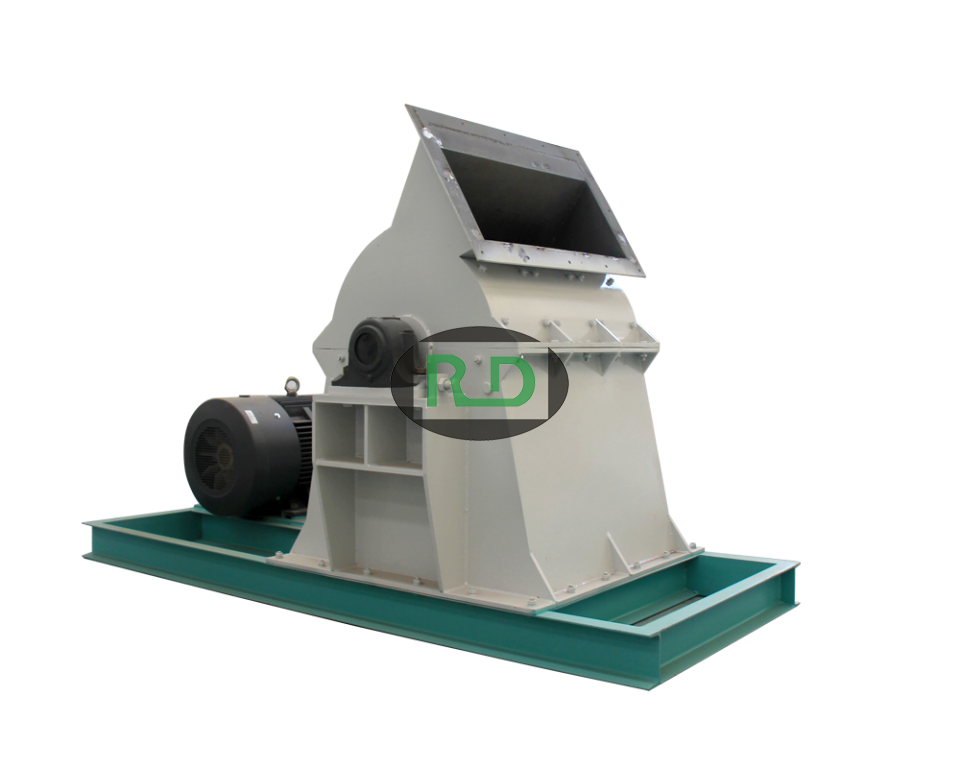

Rongda Mechanical Wood Block Crushing Hammer Mill

Powerful Wood Block Processing Solution - High-Efficiency Crushing System

Introduction: Advanced Wood Block Crushing

In the woodworking, furniture manufacturing, and biomass processing industries, handling large wood blocks—such as production offcuts, defective lumber, and reclaimed wooden scraps—poses a unique challenge: standard crushers struggle to break down dense, solid blocks without jamming, while industrial shredders are often too large and costly for workshop-scale operations. The Wood Block Crushing Hammer Mill from RD Machinery is engineered to solve this problem, designed specifically for crushing solid wood blocks (up to 300×300×300mm) into uniform, processable particles (10-50mm adjustable size). Built for workshop and mid-scale industrial use, this machine caters to furniture factories, wooden pallet manufacturers, biomass pellet plants, and waste wood recycling centers that need to convert bulky wood blocks into usable raw materials efficiently and cost-effectively.

Why Choose Our Wood Block Crushing Hammer Mill?

Operations dealing with wood blocks often face two critical pain points: inconsistent crushing (resulting in unprocessed large chunks that disrupt downstream equipment) and frequent downtime due to jamming. Conventional hammer mills may handle small chips or sawdust but lack the torque and chamber design to process solid blocks, while specialized wood splitters require manual feeding and produce irregular pieces. The Wood Block Crushing Hammer Mill addresses these issues by combining a high-torque rotor system, a spacious crushing chamber, and intelligent feeding controls. It processes solid wood blocks—including hardwood (oak, maple) and softwood (pine, spruce)—into uniform particles, supports seamless integration with downstream equipment (e.g., chippers, pellet mills), and minimizes maintenance to keep operations running smoothly.

Key Features: Engineered for Power, Consistency, and Workshop Adaptability

The Wood Block Crushing Hammer Mill is built to tackle the unique challenges of solid wood block processing, balancing industrial-grade performance with workshop-friendly design. Here's what sets it apart:

High-Torque Rotor & Heavy-Duty Hammer System:

At the core of the mill is a reinforced rotor (diameter 700mm) driven by a 75-110 KW main motor (depending on model), delivering exceptional torque to break down dense wood blocks. The rotor is fitted with 12 high-chromium alloy steel hammers (Cr20MoV), each weighing 10kg—designed to impact solid blocks with enough force to split and crush them without bouncing or jamming. The hammers are mounted on anti-loosening bolts, ensuring stability even during high-speed operation (1450 RPM).

Spacious Crushing Chamber for Unobstructed Processing:

The mill's crushing chamber (1300×900mm) features a wide inlet (400×400mm) to accommodate large wood blocks (up to 300×300×300mm) without pre-cutting. The chamber's inner walls are lined with wear-resistant Mn13 manganese steel plates, which withstand abrasion from hardwood blocks and extend chamber life by 300% compared to standard steel. A unique "funnel-shaped" chamber design guides blocks toward the rotor center, preventing them from getting stuck in corners and ensuring continuous processing.

Adjustable Particle Size for Diverse Downstream Needs:

A modular screen system at the chamber outlet allows operators to customize particle size using interchangeable screens (10mm, 20mm, 30mm, 50mm). This flexibility supports a range of applications: 10-20mm particles for biomass pellet feedstock, 30-50mm particles for wood chip mulch or animal bedding, and 20-30mm particles for furniture factory reprocessing. Screen changes are completed in 40 minutes by 2 operators, with no need for specialized tools.

Intelligent Feeding System & Safety Features:

A hydraulic-driven push feeder with a 3m³ hopper ensures controlled feeding of wood blocks. The feeder's speed is adjustable via a variable-frequency drive (VFD), matching the mill's crushing capacity to prevent overloads. A built-in block detection sensor pauses feeding if a block is too large (exceeding 300mm), protecting the rotor and hammers from damage. Safety features meet global workshop standards: an emergency stop button on both the control panel and machine frame, a safety guard over the feed inlet (preventing accidental hand contact), and a thermal overload protector for the main motor (preventing overheating during continuous use).

Workshop-Friendly Design for Easy Integration:

The mill's compact overall dimensions (3800×2200×2800mm) and wheeled base (optional) make it easy to position in workshop spaces with limited floor area. It runs on standard 380V/50Hz industrial power (or 480V/60Hz for North America), eliminating the need for specialized electrical upgrades. A dust collection port (150mm diameter) at the chamber outlet allows connection to industrial dust extractors, maintaining a clean workshop environment.

Technical Specifications: Model-by-Model Performance

The Wood Block Crushing Hammer Mill is available in two models to match different workshop and mid-scale industrial needs. Below is a comprehensive parameter table:

Industry Applications: Powering Workshop & Mid-Scale Operations Globally

The Wood Block Crushing Hammer Mill's versatility makes it a critical asset for operations dealing with bulky wood blocks. Below are real-world case studies that demonstrate its impact:

1. Furniture Factory (WB-75 Model)

Case Study: A medium-sized furniture factory in Italy produces 8 tons of wood block waste (offcuts, defective table legs, and cabinet frames) weekly. Previously, the factory paid €1,500/month to dispose of this waste. After installing the WB-75 Wood Block Crushing Hammer Mill, the factory now crushes the blocks into 20mm particles—used as feedstock for a small on-site biomass boiler (reducing natural gas costs by €800/month) and sold to a local pellet plant for €0.06/kg (generating €720/month in revenue). The mill's compact size fits in the factory's waste processing area, and the dust collection system keeps the workshop clean.

2. Wooden Pallet Manufacturer (WB-75 Model)

Case Study: A pallet manufacturer in the US produces 10,000 pallets monthly, generating 6 tons of wood block waste (broken pallet stringers, excess lumber) weekly. The manufacturer invested in the WB-75 mill to crush the blocks into 30mm particles, which are reused to make pallet feet (reducing lumber purchasing costs by 1,200/month). The mill's adjustable feeder handles irregularly shaped pallet blocks without jamming, and the Mn13 liners have withstood 6,000 hours of use with minimal wear—saving 3,000 in liner replacement costs compared to their previous crusher.

3. Biomass Pellet Plant (WB-110 Model)

Case Study: A biomass plant in Canada produces 25 tons of wood pellets daily, requiring large volumes of uniform feedstock. The plant sources wood blocks (reclaimed lumber, sawmill offcuts) and uses the WB-110 mill to crush them into 15mm particles. The mill's 12-15 T/h capacity (for softwood) ensures a steady supply of feedstock to the pellet mill, and the uniform particle size reduces pellet mill die wear by 25%. The plant's pellet production has increased by 10% since installing the mill, as downtime from uneven feedstock has been eliminated.

4. Waste Wood Recycling Center (WB-110 Model)

Case Study: A recycling center in Germany processes 15 tons of waste wood (including large blocks from construction demolition) daily. The center uses the WB-110 mill to crush the blocks into 50mm particles, which are sold to local landscaping companies for mulch. The mill's block detection sensor prevents jamming from oversized pieces, and the hydraulic feeder handles mixed wood types (hardwood and softwood) without adjustments. The center now diverts 100% of wood blocks from landfills, meeting EU waste reduction targets and generating €1,800/month in mulch sales.

Why Choose Rongda Machinery? Your Partner for Wood Block Crushing Success

At Rongda Machinery, we understand that workshop and mid-scale operations need equipment that balances performance, space efficiency, and affordability. The Wood Block Crushing Hammer Mill is backed by our commitment to tailored solutions and reliable support:

• Customized Configurations: We offer optional upgrades to match your needs, including a wheeled base for easy workshop repositioning, an automatic lubrication system (reducing manual maintenance by 40%), and a PLC control panel (for remote monitoring of production and maintenance alerts). For tropical regions, we also provide corrosion-resistant coatings to protect against humidity.
• Global Workshop Support: Our technicians provide on-site installation and operator training (1-2 days) to ensure your team can safely and efficiently run the mill. We offer 24/7 technical support via phone or video call, and our global spare parts network ensures fast delivery of hammers, screens, and liners (typically within 3-5 days) to minimize downtime.
• Durability Guarantee: Each Wood Block Crushing Hammer Mill comes with a 2-year warranty on the rotor and frame, and a 6-month warranty on wear parts (hammers, liners)—a reflection of our confidence in its ability to withstand continuous workshop use.
