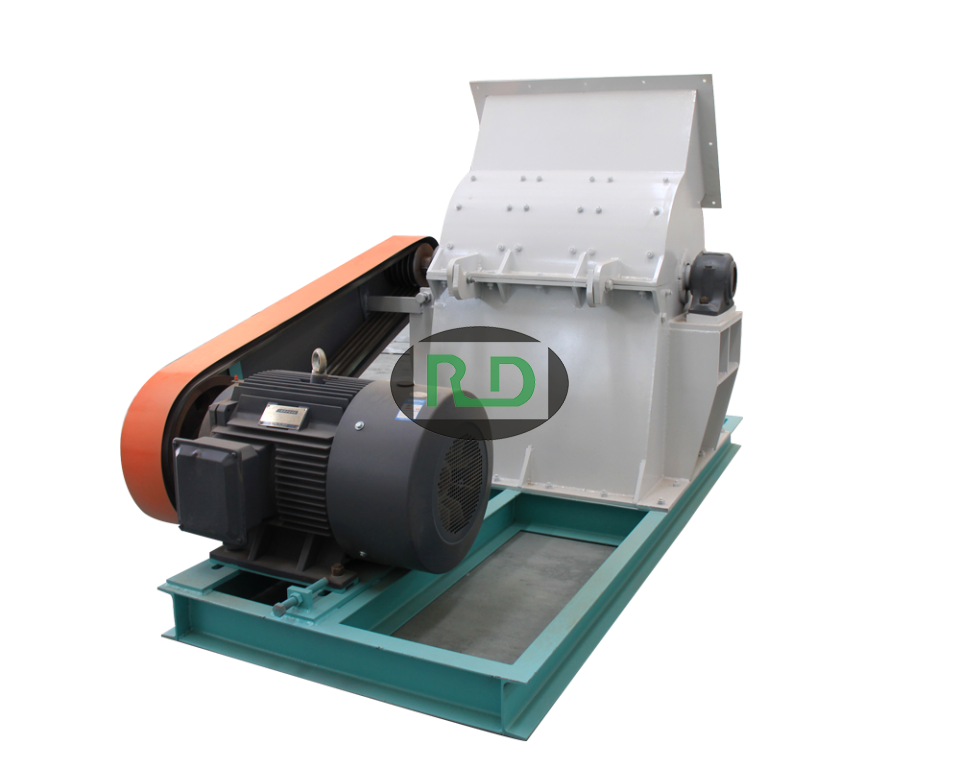

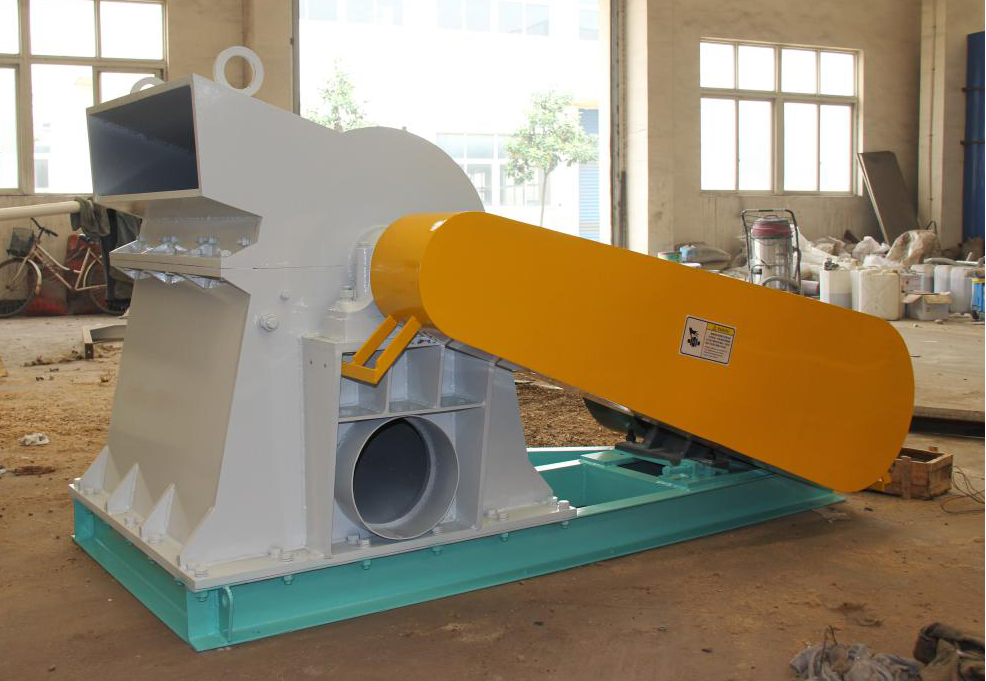

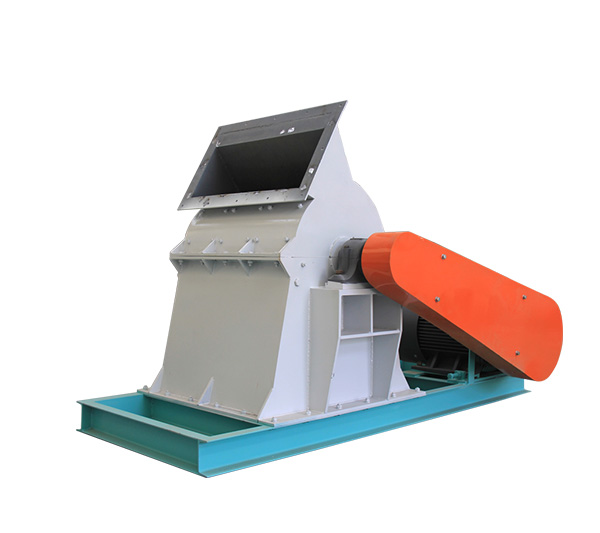

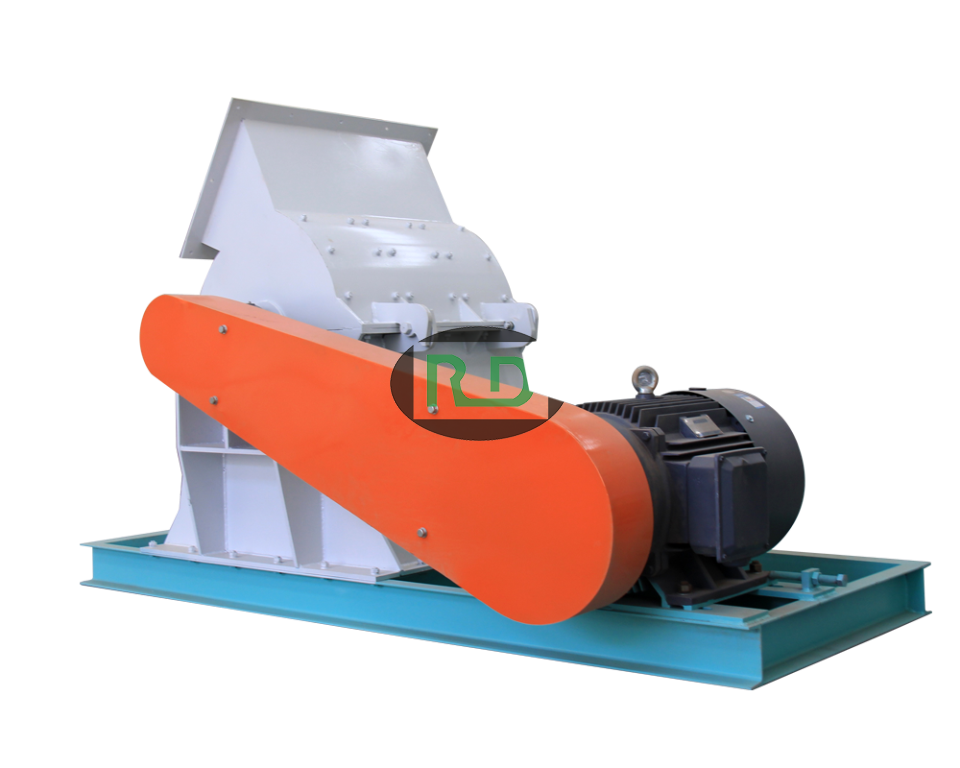

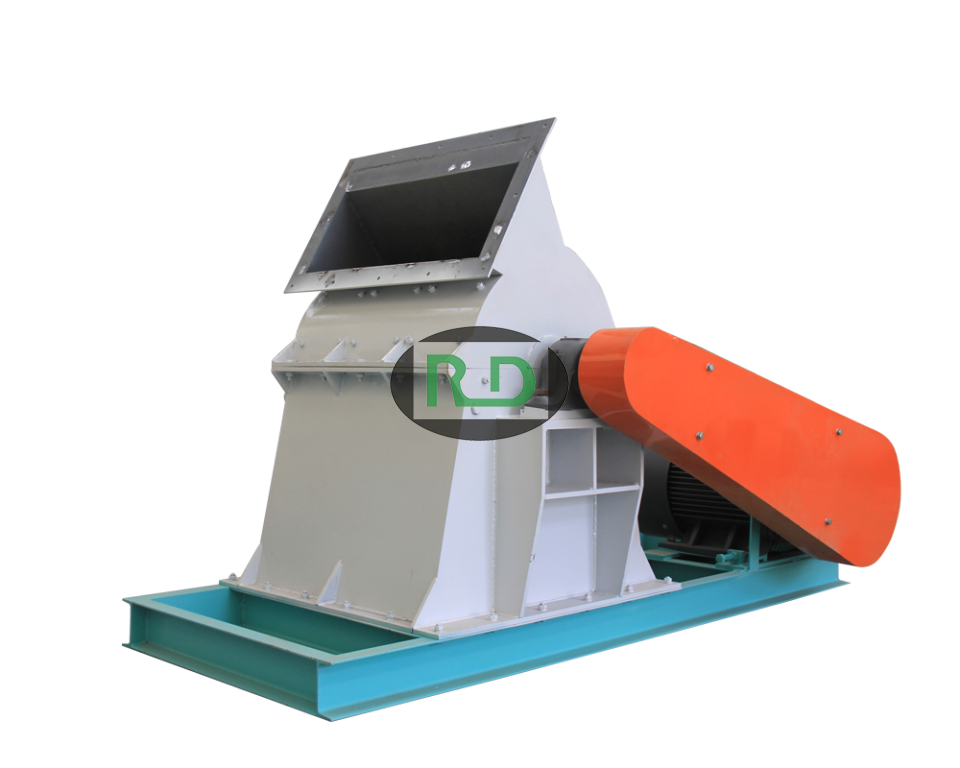

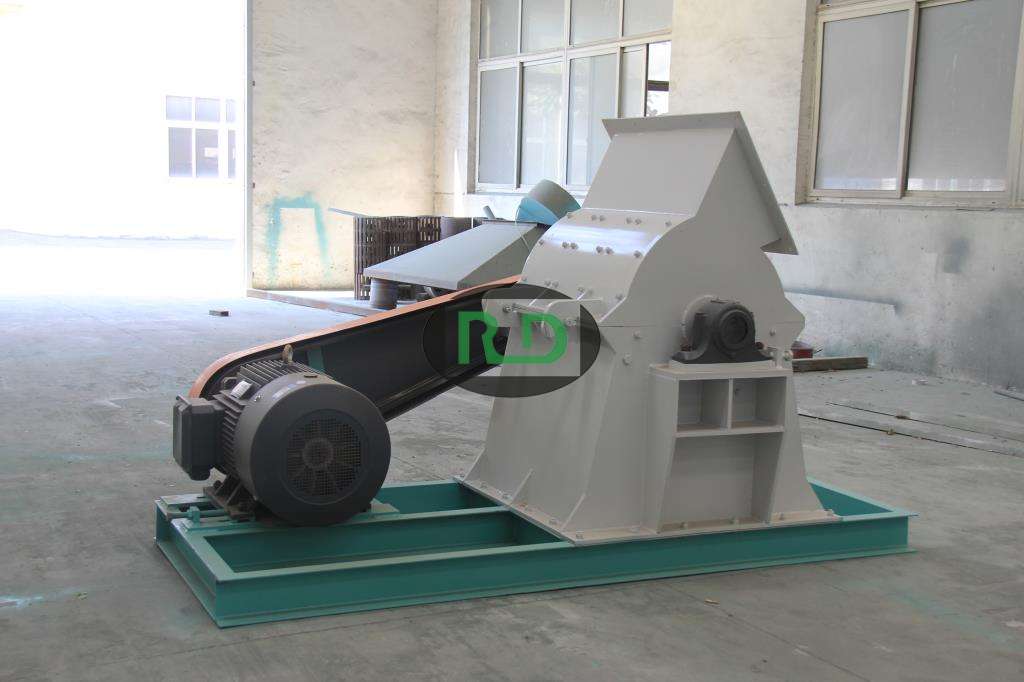

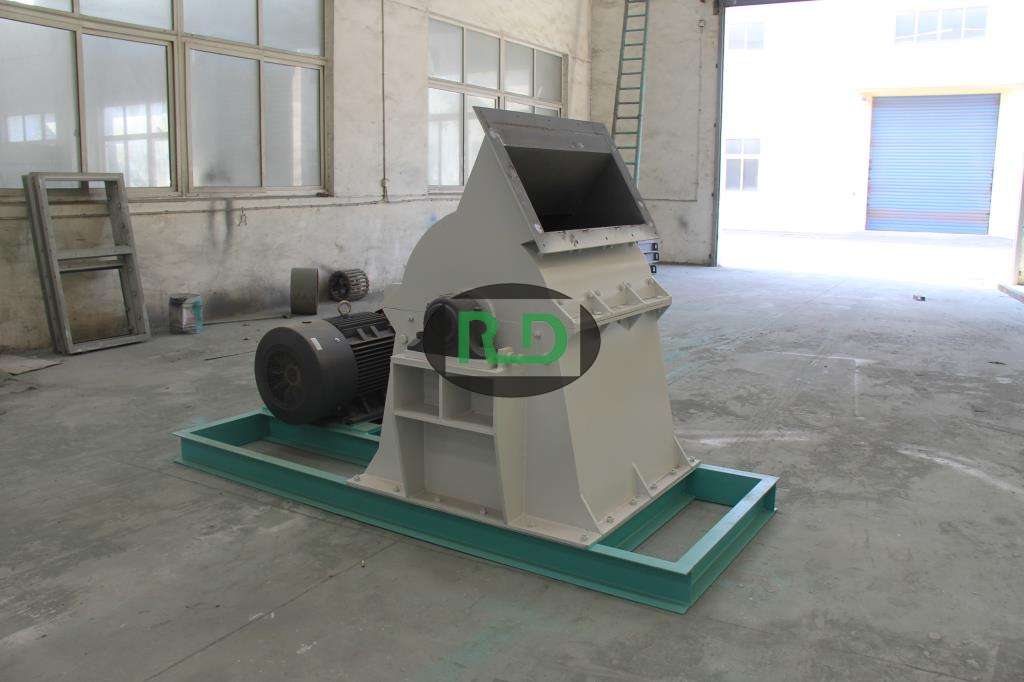

What Makes Our Wood Block Hammer Mill Stand Out?
Unlike standard hammer mills that are limited to small, pre-shredded materials, our Wood Block Hammer Mill is purpose-built for heavy-duty rough crushing. Below are its key advantages, validated by customers across 20+ countries:
1. Exceptional Capacity for Large Wood Blocks
Equipped with an extra-wide feeding hopper (up to 800mm in width) and a high-power motor (37KW-160KW), our mill can handle wood blocks, logs, and thick branches with diameters up to 300mm—eliminating the need for pre-cutting and saving valuable time. A German sawmill specializing in oak and beech processing reported a 40% increase in throughput after switching to our mill: it now processes 8-10 cubic meters of wood blocks per hour (vs. 5-6 cubic meters with their old crusher), even when handling hard, knotty wood.
2. Durable Design for Long-Term Reliability
Thickened Steel Body: The mill's frame is made of 16mm thick Q235 steel, providing strong support for high-impact crushing and resisting deformation under heavy loads.
Wear-Resistant Hammers: Hammers are crafted from high-chromium alloy (Cr20) and undergo quenching treatment, with a surface hardness of HRC 58-62. In a case study with a Chinese biomass power plant processing pine and poplar logs, the hammers maintained sharpness for over 6 months (vs. 2-3 months for ordinary steel hammers), reducing replacement costs by 50%.
Reinforced Rotor: The rotor shaft is forged from 40Cr steel and precision-machined to ensure stable rotation at 980rpm—minimizing vibration and extending bearing life.
3. Flexible Adjustment for Different Output Sizes
By replacing the interchangeable screen (available in 20mm-80mm apertures), you can easily adjust the output particle size to match your downstream needs—whether you require 30-50mm wood chips for biomass pellets or 50-80mm chunks for wood fiberboard production. A U.S. furniture factory uses our mill to crush scrap wood blocks into 20-30mm chips for reprocessing into plywood, achieving a 95% material utilization rate (up from 85% with their previous equipment).
4. Safe & Low-Maintenance Operation
Emergency Stop System: The mill is equipped with dual emergency stop buttons (on the control panel and feeding hopper) to ensure quick shutdown in case of jams or anomalies.
Easy Access for Maintenance: The side cover can be opened with a hydraulic rod, allowing fast replacement of hammers and screens—reducing maintenance time by 30% compared to bolted covers. A Canadian wood waste recycling center noted that their maintenance team now spends just 1 hour per week on the mill (vs. 2.5 hours before), freeing up time for other tasks.
5. Technical Specifications (Model Comparison)
| Model | Max. Input Size (mm) | Rotor Speed (rpm) | Motor Power (KW) | Output Capacity (m³/h) |
|---|
| WBHM-600 | ≤200 | 980 | 37/45 | 5-7 |
| WBHM-800 | ≤250 | 980 | 55/75 | 7-9 |
| WBHM-1000 | ≤300 | 980 | 90/110 | 8-12 |
| WBHM-1200 | ≤300 | 750 | 132/160 | 12-15 |
6. Industry Applications & Real-World Success Stories
Our Wood Block Hammer Mill adapts to diverse wood processing needs, with proven results in key sectors:
1. Sawmill Industry
Application: Rough crushing of leftover wood blocks, logs, and sawmill scraps into uniform chips for sale or internal use (e.g., heating).
Case Study: A Swedish sawmill producing spruce and pine lumber was generating 15 tons of wood block waste daily. After installing our WBHM-1000 model, they converted this waste into 8-10m³ of high-quality chips per day—selling them to a local biomass plant for $150/m³, creating an additional $1,200-$1,500 in daily revenue.
2. Biomass Energy Sector
Application: Crushing logs and wood blocks into 30-50mm chips for biomass pellet production or direct combustion in power plants.
Case Study: A Vietnamese biomass power plant needed to process 50 tons of rubberwood logs daily. Our WBHM-1200 mill handled the heavy workload with ease, producing consistent chips that met the plant's combustion efficiency standards—reducing fuel waste by 12% and lowering electricity generation costs.
3. Furniture & Woodworking Industry
Application: Recycling scrap wood blocks (e.g., from table legs, chair frames) into small chips for reprocessing into particleboard or MDF.
Case Study: An Italian furniture manufacturer was sending 8 tons of wood scrap to landfills monthly. With our WBHM-800 mill, they now recycle 90% of this scrap into chips for particleboard—saving $2,000/month in landfill fees and reducing raw material purchases by 15%.
7. Explore Our Full Wood Processing Line
To create a seamless, end-to-end wood processing solution, pair our Wood Block Hammer Mill with our other specialized equipment:
- [Wood Chipper]: For pre-shredding large logs into smaller blocks (ideal for feeding into the Wood Block Hammer Mill).
- [Wood Pellet Mill]: Convert the mill's output chips into high-density biomass pellets for energy or animal bedding.
- [Dust Collector]: Maintain a clean working environment by capturing dust generated during crushing.
- [Request a Custom Quote]: Get a tailored solution based on your wood type, daily processing volume, and output requirements.
At Rongda Mechanical, we combine 15+ years of wood processing equipment expertise with global customer feedback to design solutions that boost efficiency and reduce costs. Whether you're processing softwood, hardwood, or wood waste, our Wood Block Hammer Mill is built to perform—contact our team today to schedule a live demo or get technical support!
