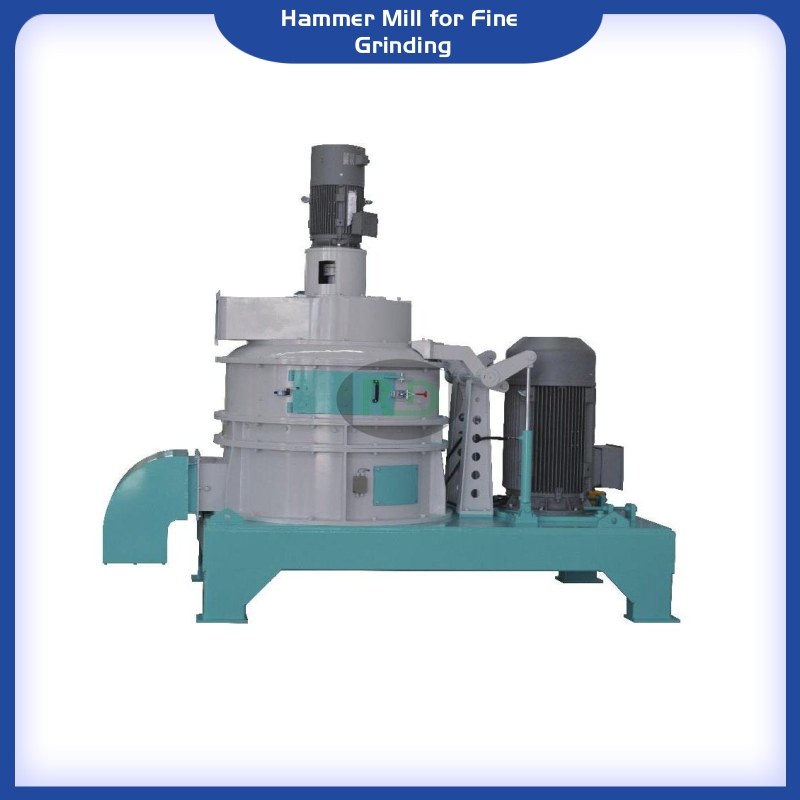

Rongda Mechanical Hammer Mill for Fine Grinding

Precision Pulverization for Ultra-Fine Material Processing

Introduction: The Need for Ultra-Fine Grinding in Modern Production

In industries ranging from food processing to advanced chemical manufacturing, the fineness of raw materials directly impacts end-product performance—whether it's the texture of powdered spices, the solubility of pharmaceutical APIs, or the reactivity of chemical catalysts. Our Hammer Mill for Fine Grinding is engineered to meet this demand, delivering micron-level pulverization (50-200 mesh) with consistent particle size distribution, far exceeding the capabilities of standard hammer mills.

Unlike conventional mills that produce uneven coarse particles (often requiring secondary grinding), our fine-grinding hammer mill uses a combination of high-speed rotating hammers, precision sieves, and airflow classification to achieve ultra-fine results in one pass. It integrates seamlessly with upstream pre-treatment equipment (such as Primary Cleaning Screens for impurity removal) and downstream processing systems (like Industrial Dust Collectors for dust control or Vibrating Grading Screens for particle classification). Whether you're grinding wheat into fine flour, pulverizing limestone into mineral powder, or processing pharmaceutical-grade materials, this mill sets a new standard for precision and efficiency.

Key Features & Ultra-Fine Grinding Advantages

Our Hammer Mill for Fine Grinding is built to solve the unique challenges of ultra-fine material processing—from uneven particle size to low efficiency. Below are its core strengths, paired with real-world industry success stories:

1. High-Speed Hammer System for Micron-Level Fineness

Function: Equipped with 8-12 high-hardness steel hammers (60-62 HRC) rotating at 3000-6000 rpm (adjustable via variable-frequency drive), the mill generates intense impact and shear forces to break down materials into ultra-fine particles (50-200 mesh). A precision-classified sieve (mesh size customizable) ensures only particles meeting the fineness requirement pass through, while larger particles are retained for re-grinding—achieving a particle size uniformity of ≥90%.

Industry Case: A Japanese spice manufacturer struggled with unevenly ground pepper powder (20-80 mesh), leading to inconsistent flavor in their seasoning blends. After switching to our fine-grinding hammer mill, they achieved a uniform 100-mesh powder, improving flavor consistency and increasing product sales by 25% in high-end restaurant chains.

2. Airflow-Assisted Grinding for Efficiency & Cooling

Function: A built-in high-pressure fan generates directional airflow that cools the grinding chamber (preventing heat-sensitive materials like sugar or pharmaceuticals from melting) and accelerates the discharge of fine particles—reducing grinding time by 40% compared to standard mills. The airflow also minimizes particle agglomeration (common in ultra-fine grinding) by keeping particles suspended until they pass through the sieve.

Industry Case: A US pharmaceutical company needed to grind heat-sensitive aspirin API without degrading its active ingredients. Our mill's airflow cooling system kept the grinding chamber temperature below 40℃, preserving API potency and meeting FDA requirements for pharmaceutical processing. Previously, their old mill caused 15% API degradation, leading to costly batch rejects.

3. Durable Construction for Abrasive Materials

Function: The grinding chamber is lined with wear-resistant manganese steel (Mn13) plates, capable of handling abrasive materials like quartz, limestone, or cement clinker without rapid wear. The hammers are made of high-chromium alloy steel (Cr12MoV), extending their service life to 3000+ hours (2x longer than standard carbon steel hammers). The mill's frame is reinforced with heavy-duty carbon steel to withstand high-speed vibration.

Industry Case: An Indian mineral processing plant used a standard hammer mill to grind limestone, requiring hammer replacement every 2 months. Our high-chromium alloy hammers lasted 6 months, cutting replacement costs by 67% and reducing unplanned downtime during peak production seasons.

4. Easy Adjustment for Variable Fineness Needs

Function: The mill's fineness can be adjusted in 3 ways: ① Changing the sieve mesh size (50-200 mesh); ② Adjusting the hammer rotation speed (3000-6000 rpm via VFD); ③ Tuning the airflow rate (via fan speed control). This flexibility allows operators to switch between different fineness requirements (e.g., 80-mesh wheat flour to 150-mesh pharmaceutical powder) in less than 30 minutes—no major disassembly needed.

Industry Case: A German chemical company produces both 100-mesh calcium carbonate (for paint) and 180-mesh calcium carbonate (for plastic fillers). Our mill's easy fineness adjustment let them switch between the two products in 25 minutes, eliminating the need for two separate mills and saving 50% of factory floor space.

5. Seamless Integration with Production Lines

Function: Designed with flexible inlet/outlet ports to connect to upstream and downstream equipment:

• Upstream: Primary Cleaning Screens (to remove impurities that could damage hammers) or conveyors for raw material feeding.
• Downstream: Industrial Dust Collectors (to capture ultra-fine dust, meeting environmental standards) or Vibrating Grading Screens (for further particle classification).

Industry Case: A Chinese food processing plant integrated our fine-grinding hammer mill with their Integrated Packaging Equipment line. The mill grinds wheat into 80-mesh flour, which is then directly fed to a packaging scale—eliminating intermediate material transfer and reducing flour loss by 8% compared to their old multi-step process.

Technical Specifications (Model Comparison)

Our Hammer Mill for Fine Grinding (standard model: RD-HM-F120) is built for precision, durability, and high-volume ultra-fine processing. Below are its key parameters:

Industry-Specific Applications & Customer Success

The Hammer Mill for Fine Grinding is tailored to the unique ultra-fine processing needs of different industries, with customizations for material type and regulatory requirements:

Why Choose Our Hammer Mill for Fine Grinding?

• Ultra-Fine Precision: 50-200 mesh fineness with ≥90% particle uniformity—ideal for high-quality end products in food, pharma, and chemicals.
• Efficient Cooling: Airflow-assisted grinding prevents heat damage to sensitive materials and speeds up processing.
• Durable Design: Wear-resistant hammers and chamber lining reduce replacement costs and minimize downtime, even for abrasive materials.
• Flexible Adjustment: Quick fineness changes (30 minutes or less) adapt to diverse production needs without reconfiguring the entire mill.
• Compliance Ready: Food-grade stainless steel and GMP/explosion-proof options meet global standards (FDA, CE, ATEX for combustibles).

Ready to achieve ultra-fine material perfection? Discover how our Hammer Mill for Fine Grinding can elevate your product quality, boost efficiency, and reduce processing costs. Let's turn coarse materials into ultra-fine excellence—together.
