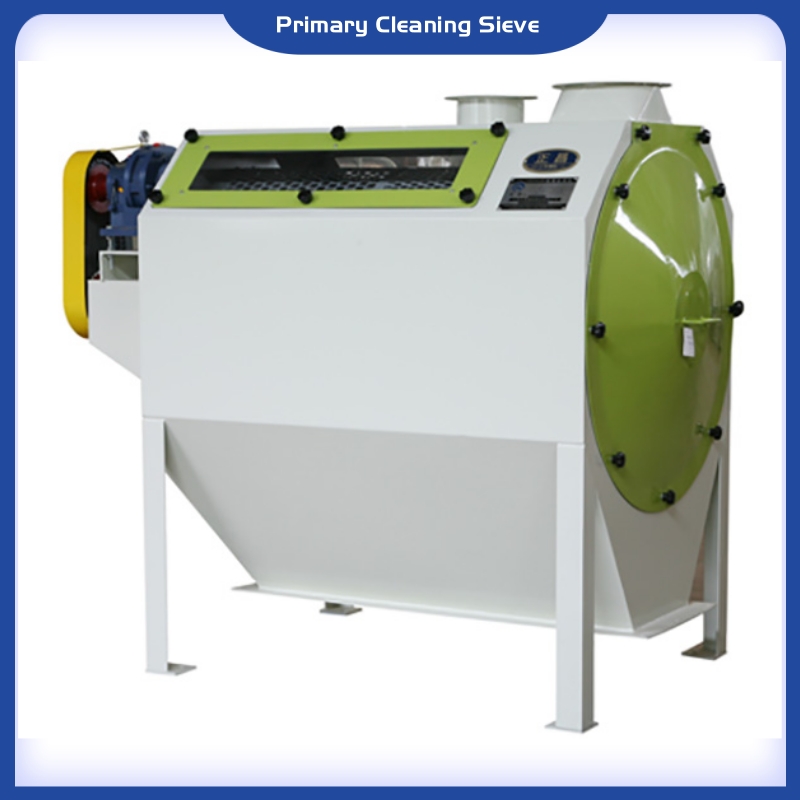

Rongda Mechanical Primary Cleaning Sieve

The First Line of Defense for Raw Material Quality - Multi-Stage Impurity Removal System

Introduction: Advanced Primary Cleaning Solution

In the grain processing, feed production, biomass pellet manufacturing, and oilseed processing industries, removing large impurities (e.g., stones, straw, clods, metal fragments) from raw materials is a critical first step—one that protects downstream equipment (e.g., grinders, pellet mills, extruders) from damage, improves product quality, and reduces production downtime. The Primary Cleaning Sieve from RD Machinery is engineered to handle this foundational task, using a combination of vibrating screens and specialized separators to efficiently remove 98% of large and medium impurities from bulk materials (grain, wood chips, feed ingredients, oilseeds). Available in three models (PCS-5 to PCS-20) with capacities ranging from 5 to 20 tons per hour, this sieve caters to small-to-medium scale operations—from local grain silos and regional feed mills to biomass cooperatives and small oilseed processing plants—that require reliable, low-maintenance primary cleaning solutions.

Why Choose Our Primary Cleaning Sieve?

Operations processing bulk raw materials often face two critical challenges: unremoved impurities cause costly damage to expensive downstream machinery (e.g., a single stone can crack a pellet mill die costing $5,000+), and manual cleaning is time-consuming and inconsistent. Conventional primary screens may remove large debris but miss smaller stones or metal fragments, while industrial cleaning systems are too large and costly for mid-sized operations. The Primary Cleaning Sieve addresses these pain points by combining multi-stage impurity removal (screening + magnetic separation), high throughput, and easy maintenance. It protects downstream equipment, reduces waste, and ensures raw materials meet the purity standards required for further processing—all while occupying minimal floor space and operating at low noise levels.

Key Features: Engineered for Efficiency, Protection, and Simplicity

The Primary Cleaning Sieve is built to deliver reliable, thorough impurity removal while integrating seamlessly into raw material handling workflows. Here's what sets it apart from conventional primary cleaning equipment:

Multi-Stage Impurity Removal System:

The sieve uses a two-stage cleaning process to target different types of impurities:

• Stage 1: Vibrating Screen Deck: A high-frequency vibrating screen (1,500-2,000 RPM) with adjustable amplitude (3-5mm) separates large impurities (straw, clods, large sticks) from raw materials. The screen deck features a coarse mesh (10-50mm, customizable by material type)—raw materials pass through the mesh, while large impurities are discharged via a side outlet.
• Stage 2: Magnetic Separator & Stone Trap: After screening, a high-strength magnetic roller (12,000 Gauss) removes ferrous metal fragments (nails, wire, metal shavings) that could damage downstream equipment. A built-in stone trap (with adjustable weight sensitivity) separates heavy impurities (stones, glass, metal chunks) by gravity—heavy objects sink to the bottom and are automatically discharged, while cleaned materials move forward.

Material-Specific Screen Customization:

The sieve's screen deck is fully customizable to match different raw material types:

• Grain (wheat, corn, rice): 10-15mm mesh to remove straw, clods, and large weed seeds.
• Biomass Wood Chips: 20-30mm mesh to remove large branches, bark chunks, and soil clods.
• Feed Ingredients (soybean meal, corn bran): 12-18mm mesh to remove agglomerates and foreign debris.
• Oilseeds (soybeans, sunflower seeds): 15-20mm mesh to remove stems, leaves, and small stones.

Screens are made of wear-resistant 304 stainless steel (food-grade) or manganese steel (for abrasive materials like wood chips), ensuring 3,000+ hours of service life.

High Throughput & Space-Saving Design:

The sieve's compact footprint (1.2×1.8m to 2.0×2.5m, depending on model) is 40% smaller than industrial cleaning systems, making it suitable for facilities with limited space (e.g., small grain silos, narrow feed mill workshops). Its high throughput (5-20 TPH) matches the capacity of mid-sized processing lines, ensuring raw materials are cleaned without bottlenecking production. For example, the PCS-15 model processes 15 TPH of wheat—enough to supply a 10 TPH feed mill with clean raw material.

Low Maintenance & Easy Operation:

• Quick-Screen Replacement: The screen deck is secured with hand-tightened clamps, allowing operators to replace or clean the screen in 20 minutes—no tools required. A built-in screen cleaning brush automatically removes material buildup during operation, reducing manual cleaning frequency by 80%.
• Minimal Moving Parts: The sieve uses only two key moving components (vibrating motor, magnetic roller), reducing maintenance needs compared to complex cleaning systems. Sealed bearings in the vibrating motor require lubrication only once every 6 months, cutting maintenance labor by 60%.
• Intuitive Control: A simple 3-button control panel (start/stop, vibration adjustment) makes operation easy for untrained staff—no complex programming required. LED indicators alert operators to issues like screen clogging or motor overload.

Safety & Environmental Compliance:

• Noise Reduction: The sieve's vibrating motor is mounted on high-damping rubber pads that reduce noise levels to<70 dB (quieter than a vacuum cleaner), making it suitable for indoor installation near worker areas.
• Safety Guards: All moving parts (vibrating screen, magnetic roller) are enclosed in safety guards meeting EU CE and US OSHA standards, preventing operator injury.
• Food-Grade Options: For food-related applications (grain, oilseeds), the sieve can be built with full 304 stainless steel contact parts and smooth surfaces to meet FDA and EU 10/2011 food safety standards—eliminating bacterial buildup and ensuring easy sanitization.

Technical Specifications: Model-by-Model Performance

The Primary Cleaning Sieve's specifications are tailored to each model's capacity and application scope. Below is a comprehensive parameter table:

Industry Applications: Protecting Operations Globally

The Primary Cleaning Sieve's versatility makes it a critical asset across industries processing bulk raw materials. Below are real-world case studies that demonstrate its impact:

1. Grain Processing Facility (PCS-10 Model)

Case Study: A small grain processing facility in Ukraine handles 12 tons of wheat daily, supplying local bakeries with cleaned grain. Previously, the facility relied on manual cleaning, which missed small stones—one of which cracked a grinder's rotor costing $2,000 to repair. After installing the PCS-10 Primary Cleaning Sieve (12mm mesh + 12,000 Gauss magnetic roller), the facility removes 99% of impurities (straw, stones, metal fragments). No downstream equipment damage has occurred in 18 months, and manual labor for cleaning has been reduced by 70%. The facility's bakery customers report improved flour quality, with fewer dark specks from impurities—increasing repeat orders by 25%.

2. Biomass Pellet Cooperative (PCS-8 Model)

Case Study: A biomass cooperative in Canada produces 8 tons of wood pellet daily, using wood chips sourced from local sawmills. The wood chips often contain small stones, metal fasteners, and large bark chunks—impurities that were damaging the cooperative's RD-508MX Biomass Pellet Mill die (needing replacement every 3 months). The cooperative installed the PCS-8 (25mm mesh + 10,000 Gauss magnetic roller) to clean wood chips before pelletizing. The sieve removes 98% of impurities, extending die life to 9 months (saving $4,000 in die replacement costs annually). Pellet quality has also improved, with fewer "dirty" pellets containing bark or stone dust—allowing the cooperative to sell pellets at a 10% premium.

3. Feed Mill (PCS-15 Model)

Case Study: A regional feed mill in India produces 14 tons of dairy feed daily, using a mix of corn, soybean meal, and wheat bran. The raw materials often contain straw, clods, and metal fragments from farm equipment—impurities that caused frequent jams in the mill's extruder. The mill installed the PCS-15 (18mm mesh + 12,000 Gauss magnetic roller) to clean ingredients before mixing. The sieve reduces extruder jams from 3 times weekly to once monthly, cutting downtime by 80%. Feed quality has improved, with dairy farmers reporting a 5% increase in milk production due to cleaner, more digestible feed. The mill's maintenance costs have dropped by $3,000 annually.

4. Oilseed Processing Plant (PCS-20 Model)

Case Study: A small sunflower seed processing plant in Argentina handles 19 tons of seeds daily, extracting oil for local markets. Stones and metal fragments in raw seeds were damaging the plant's dehulling machine, requiring monthly repairs. The plant installed the PCS-20 (20mm mesh + 12,000 Gauss magnetic roller) with food-grade stainless steel components. The sieve removes 99% of impurities, eliminating dehulling machine damage and meeting Argentina's food safety standards (ANMAT). Oil yield has increased by 3% due to cleaner seeds (impurities absorb oil), and the plant has expanded to supply two new local supermarkets—generating $1,500 in additional monthly revenue.

Why Choose Rongda Machinery? Your Partner for Reliable Primary Cleaning

At Rongda Machinery, we understand that primary cleaning is a non-negotiable step for protecting your equipment and ensuring product quality. The Primary Cleaning Sieve is backed by our commitment to customization, support, and durability:

• Tailored Solutions: We help you select the right model (PCS-5 to PCS-20) and customize features (screen mesh size, material, food-grade components) based on your raw material type, capacity, and regulatory requirements. For example, we offer a dust collection port for facilities in dusty environments (e.g., biomass plants) and automatic stone discharge for operations handling high-stone-content materials (e.g., grain from rocky fields).
• Global Technical Support: Our technicians provide on-site installation, operator training (half-day), and preventive maintenance guidance. We offer 24/7 technical support via phone or video call, and our global spare parts network ensures fast delivery of screens, magnetic rollers, and motors (typically within 3-5 days) to minimize downtime.
• Durability & Compliance Guarantee: Each Primary Cleaning Sieve comes with a 2-year warranty on the frame and motors, and a 6-month warranty on screens. We provide compliance documentation (CE, ISO 9001, FDA for food-grade models) to help you meet local industry regulations.
