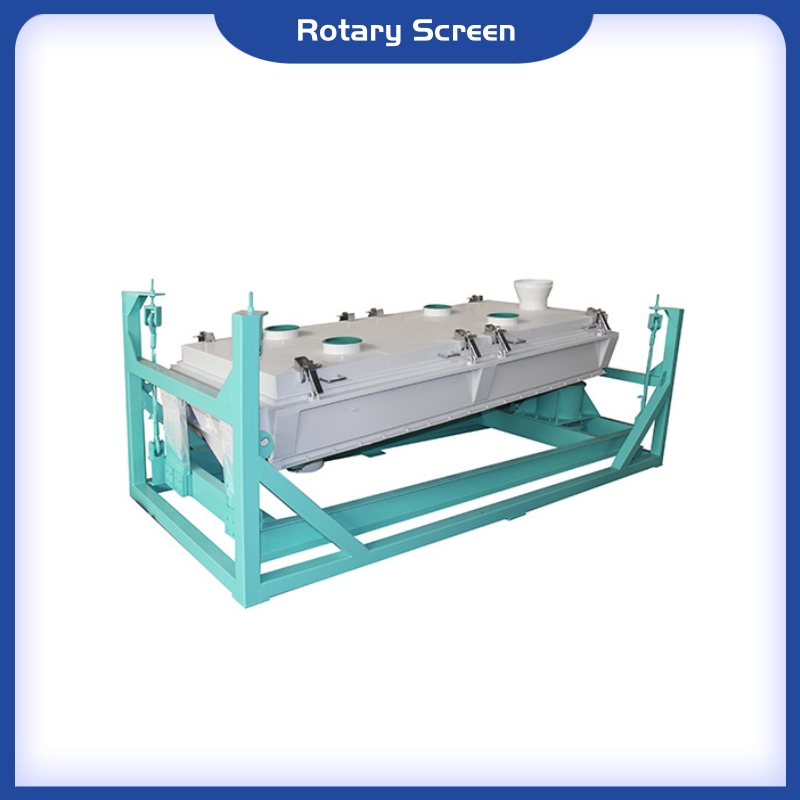

Rongda Mechanical Rotary Screening Machine

The Versatile Solution for Challenging Screening Tasks - Efficient Separation of Granular and Powdered Materials

Introduction: Advanced Rotary Screening Solution

In the biomass processing, mineral refining, construction material, and fertilizer industries, separating granular or powdered materials into uniform size fractions is a critical step that directly impacts product quality, process efficiency, and market competitiveness. Traditional static screens often struggle with high-moisture or sticky materials (e.g., wet biomass, clay-rich minerals) due to clogging, while vibratory screens may damage fragile particles (e.g., organic fertilizer prills). The Rotary Screening Machine from RD Machinery is engineered to solve these challenges, leveraging a rotating cylindrical screen drum to deliver consistent, high-efficiency screening of materials (0.5-100mm) across diverse applications. Available in four models (RSM-10 to RSM-40) with capacities ranging from 10 to 40 tons per hour, this machine caters to mid-to-large scale operations—from industrial biomass plants and mineral processing facilities to construction material yards and fertilizer factories—that require reliable, low-maintenance screening solutions.

Why Choose Our Rotary Screening Machine?

Operations handling complex materials face unique screening pain points: static screens require frequent manual cleaning (wasting 2-3 hours daily), vibratory screens cause 5-8% particle breakage, and generic rotary screens lack adaptability for mixed material types. The Rotary Screening Machine addresses these issues by combining gentle rotary motion (breakage rate<1%), anti-clogging design (self-cleaning drum reduces downtime by 90%), and material-specific customization (screen mesh, drum speed, inclination angle). It screens wet, sticky, or fragile materials with 95%+ efficiency, integrates seamlessly into continuous production lines, and reduces maintenance costs by 40% compared to conventional equipment.

Key Features: Engineered for Efficiency, Adaptability, and Durability

The Rotary Screening Machine is built to handle diverse material challenges while maintaining consistent performance. Here's what sets it apart from conventional screening equipment:

Rotary Cylindrical Drum for Gentle, Efficient Screening:

The machine's core component is a horizontally mounted cylindrical drum (diameter 800-1500mm, length 2000-4000mm) with a replaceable screen mesh (0.5-100mm). The drum rotates at 10-30 RPM (adjustable via VFD), creating a gentle tumbling motion that exposes every particle to the screen mesh—ensuring thorough separation without damaging fragile materials. For high-moisture or sticky materials (e.g., wet wood chips, clay minerals), the tumbling action prevents particle agglomeration and self-cleans the mesh, eliminating the need for manual brushing or air purging.

Material-Specific Customization Options:

• Screen Mesh Material: For abrasive materials (e.g., quartz, granite), mesh is made of Mn13 wear-resistant steel (service life 5000+ hours); for food/fertilizer applications, mesh uses 304 stainless steel (meets FDA/EU 10/2011 standards); for high-moisture materials, a "wave-shaped" mesh (1.5mm gap) prevents clogging.
• Drum Inclination Angle: The drum is mounted on an adjustable frame (0-5° inclination) to control material residence time: steeper angles (3-5°) for fast screening of free-flowing materials (e.g., dry sand), shallower angles (0-2°) for thorough screening of sticky materials (e.g., wet biomass).
• Auxiliary Cleaning Systems: For ultra-sticky materials (e.g., wet clay), an optional internal brush system (mounted inside the drum) rotates opposite the drum to dislodge stuck particles—further reducing clogging and maintenance.

High Throughput & Continuous Operation:

• Large Drum Volume: The machine's large drum volume (1.2-7.1 m³, depending on model) and wide feed inlet (400-800mm) enable high throughput (10-40 TPH)—matching the capacity of industrial production lines. For example, the RSM-40 model processes 40 TPH of construction sand, supplying a concrete batching plant without bottlenecks.
• Dust Control: A sealed drum design prevents material spillage and dust emission, maintaining a clean workshop environment and meeting global dust control standards (EU EN 15251, US EPA 40 CFR Part 63).

Low Maintenance & Easy Access Design:

• Quick Mesh Replacement: The drum's screen mesh is secured with snap-lock fasteners, allowing replacement in 45 minutes by two operators—no welding or heavy tools required. Mesh sections are modular (1m length), so only damaged sections need replacement (reducing spare part costs by 60%).
• Sealed Bearings & Drive System: The drum's support bearings (SKF/NSK) are sealed and lubricated for life, requiring no maintenance for 8000+ hours. The gearbox drive system is enclosed in a weatherproof housing, protecting it from dust and moisture (ideal for outdoor installations like construction yards).
• Simplified Cleaning: The drum's smooth internal surface and tumbling motion minimize material buildup—weekly cleaning takes 30 minutes (vs. 2 hours for static screens).

Intelligent Control & Safety Features:

• PLC Control Panel: A 7-inch touchscreen PLC control panel monitors key parameters: drum speed, material feed rate, and bearing temperature. Operators can save 8 custom screening profiles (e.g., "wet biomass," "dry sand," "fertilizer prills") to reduce setup time when switching materials.
• Safety Features: Safety features include emergency stop buttons on both the control panel and machine frame, a drum overspeed alarm, and a guard rail around the drum (meeting EU CE and US OSHA safety standards). For outdoor use, an optional rain cover protects the drum from weather damage.

Technical Specifications: Model-by-Model Performance

The Rotary Screening Machine's specifications are tailored to each model's capacity and application scope. Below is a comprehensive parameter table:

Industry Applications: Powering Multi-Sector Screening Operations

The Rotary Screening Machine's versatility makes it a critical asset across diverse industries. Below are real-world case studies that demonstrate its impact:

1. Industrial Biomass Plant (RSM-20 Model)

Case Study: A biomass plant in Germany produces 22 tons of wet wood chips (moisture 45%) daily, requiring screening to remove oversized branches (>50mm) before drying. The plant previously used a static screen that clogged every 2 hours, requiring manual cleaning and causing 3 hours of daily downtime. After installing the RSM-20 (wave-shaped mesh, 50mm size, 2° inclination), the machine screens 22 TPH of wet chips with 96% efficiency. The self-cleaning drum eliminates clogging, reducing downtime to 30 minutes daily. Oversized branches are recycled to a Wood Block Crushing Hammer Mill, increasing raw material utilization by 12%. Annual savings from reduced downtime and increased efficiency are €24,000.

2. Mineral Processing Facility (RSM-30 Model)

Case Study: A mineral facility in Australia processes 32 tons of iron ore fines (mixed with clay) daily, requiring screening to separate 5-20mm ore (for steel production) from fine clay (<5mm, waste). The facility installed the RSM-30 (Mn13 mesh, 5mm size, 3° inclination) with an internal brush system. The machine's anti-clogging design handles clay-rich ore without buildup, screening 32 TPH with 97% efficiency. The Mn13 mesh has lasted 6000 hours (vs. 1500 hours for standard steel mesh), saving AUD 12,000 in mesh replacement costs annually. The facility's steel mill customers report improved ore quality, with fewer clay-related smelting issues—increasing contract renewals by 40%.

3. Construction Material Yard (RSM-40 Model)

Case Study: A construction company in Brazil operates a sand processing yard, supplying 38 tons of screened sand daily to a concrete batching plant. The company replaced two static screens (which required 2 hours of daily cleaning) with the RSM-40 (304 SS mesh, 3mm size, 5° inclination). The RSM-40 processes 38 TPH of sand with 96% efficiency, supplying the batching plant continuously. Dust collection hoods reduce dust emission to<10 mg/m³ (meeting Brazilian environmental standards), and the sealed gearbox operates reliably in outdoor rain and heat. The company's maintenance labor has dropped by 70%, and concrete quality has improved (fewer oversized particles cause fewer cracks)—reducing construction rework by 15%.

4. Fertilizer Factory (RSM-10 Model)

Case Study: A fertilizer factory in India produces 12 tons of organic fertilizer prills (3-8mm) daily, requiring screening to remove undersized dust (<3mm)>8mm). The factory chose the RSM-10 (304 SS mesh, dual-layer 3mm/8mm, 1° inclination) for its gentle motion. The machine's 10 RPM drum speed keeps prill breakage below 0.8% (vs. 6% for vibratory screens), preserving fertilizer nutrient content. Screened prills meet Indian FCO (Fertilizer Control Order) standards, and the food-grade mesh ensures no metal contamination. The factory's retail customers report better prill flow in packaging, reducing bag clogging by 90% and increasing sales by 20%.

Why Choose Rongda Machinery? Your Partner for Reliable Screening Solutions

At Rongda Machinery, we understand that screening equipment must adapt to your material's unique properties—whether wet, sticky, abrasive, or fragile. The Rotary Screening Machine is backed by our commitment to customization, support, and durability:

• Tailored Configurations: We help you select the right model (RSM-10 to RSM-40) and customize features (mesh material, drum speed, inclination angle, auxiliary cleaning) based on your material type, capacity, and environmental requirements. For example, we offer cold-resistant mesh for polar regions and corrosion-resistant 316 SS mesh for salt-rich marine environments.
• Global Technical Support: Our technicians provide on-site installation, operator training (1 day), and preventive maintenance plans. We offer 24/7 technical support via phone or video call, and our global spare parts network ensures fast delivery of mesh sections, bearings, and brush systems (typically within 3-5 days) to minimize downtime.
• Durability & Compliance Guarantee: Each Rotary Screening Machine comes with a 2-year warranty on the drum frame and drive system, and a 6-month warranty on mesh and brush components. We provide compliance documentation (CE, ISO 9001, FDA for food-grade models) to help you meet local industry regulations.
