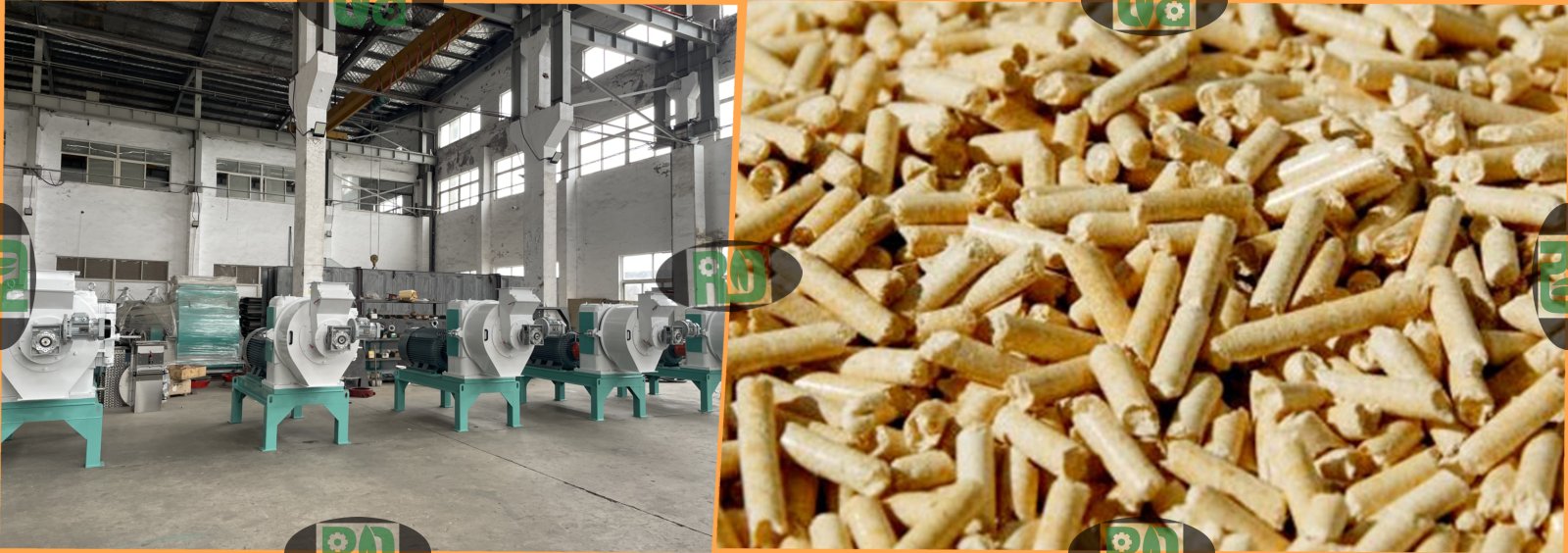

Biomass pellet machine, also known as biomass granulator or wood pellet machine, is a specialized mechanical device that compresses and forms crushed agricultural and forestry waste (such as wood chips, straw, rice husk, peanut shell, etc.) under high pressure to produce high-density, regularly shaped (usually cylindrical) solid fuel pellets.
Product Definition and Industry Chain Role
In the biomass energy "collection, storage, transportation, processing, and utilization" industry chain, the biomass pellet machine plays a core "processing" role, undertaking the key task of converting loose, low-energy density, and difficult-to-directly and efficiently utilize raw biomass into high-energy density, clean, and standardized commercial fuel.
The important significance of this conversion process lies in:
Transportation and Storage: Significantly improves the transportation economy and storage stability of fuel
Equipment Compatibility: Enables adaptation to specially designed automated combustion equipment (such as pellet fireplaces, industrial boilers)
Efficient Utilization: Realizes large-scale, high-efficiency, and low-pollution modern utilization of biomass energy
Environmental Impact: Promotes "dual carbon" strategy, realizes resource utilization and energy conversion of agricultural and forestry waste
Core Working Principle
The core working principle of biomass pellet machines follows the "high-pressure hot pressing forming" theory, with the specific process as follows:
1. Raw Material Preprocessing: Crush, dry, and condition the raw materials, controlling moisture content at 10%-18%
2. Feeding: Qualified raw materials are fed into the forming chamber (die holes) of the pellet machine
3. Extrusion Forming: Under the strong extrusion and friction of high-speed rotating pressure rollers or screws, materials are forced into the die holes of high-hardness ring die or flat die
4. Hot Pressing Effect: Materials withstand extremely high unit area pressure (up to 50-200 MPa), and the lignin inside undergoes plastic softening at high temperatures (about 70-110℃) generated by friction, acting as a natural binder
5. Molecular Bonding: Components such as cellulose generate intermolecular binding force under pressure
6. Shaping and Cutting: When passing through the narrow die holes, materials undergo further compression and shaping, and are finally cut into dense pellets of predetermined length by cutting knives
7. Cooling and Solidification: Pellets are cooled and solidified after extrusion to form the final product
Main Technical Routes
The main technical routes of biomass pellet machines are mainly divided into two categories based on die structure:
1. Ring Die Pellet Machine
Core Structure: An annular die (ring die) made of high-strength alloy steel with a large number of uniformly distributed die holes, with 2-3 rotating pressure rollers that revolve with the main shaft
Working Process: The ring die is driven by a motor to rotate at high speed, centrifugal force distributes materials between the inner wall of the ring die and the pressure rollers, and the pressure rollers rotate under the friction of materials, extruding materials into the ring die holes for forming
Advantages:
- Large output
- Stable operation
- Good forming quality
- Wide application range
Disadvantages:
- Complex structure
- High manufacturing cost
- Relatively high power consumption
- Mold replacement is more cumbersome
Application Scenarios: Industrial large-scale production
2. Flat Die Pellet Machine
Core Structure: A stationary flat disk (flat die) with die holes, with one or a group of rotating pressure rollers (or pressure wheels) above
Working Process: Materials are rolled into the vertical die holes below by rotating pressure rollers on the flat die for forming
Advantages:
- Relatively simple structure
- Low cost
- Molds are easy to manufacture and replace
- Certain flexibility in raw material adaptability
Disadvantages:
- Usually higher power consumption per unit output
- Pressure roller bearings are prone to damage due to dust ingress
- Stability and pellet uniformity in large-scale continuous production are usually inferior to high-end ring die machines
Application Scenarios: Small and medium-scale production or specific raw material (such as forage, some straw) processing
Rongda Machinery's Technical Innovations
As a professional biomass pellet machine manufacturer, Rongda Machinery continues to make breakthroughs in technical innovation:
1. High-Precision Gear Transmission Technology
Performance Improvement: Adopts high-precision gear transmission, increasing output by approximately 20% compared to belt-driven models
Operational Benefits: Lossless power transmission, stable operation, low noise
2. Intelligent Control System
Control Capabilities: Equipped with PLC intelligent control system, realizing real-time monitoring and automatic adjustment
Remote Monitoring: Can be equipped with remote monitoring function, realizing real-time equipment operation status viewing and remote fault diagnosis
3. High-Quality Material Application
Material Selection: Core components use Cr series alloy steel materials, such as Cr15MoV, Cr18MoV, Cr20MoV, etc.
Heat Treatment: Through strict heat treatment processes, improving wear resistance and service life
4. Customized Solutions
Personalized Configuration: According to customer raw material characteristics and production capacity requirements, provide personalized equipment configuration
Integrated Solutions: From raw material crushing, screening, drying to pelletizing, cooling, and packaging, providing full-process integrated solutions
Key Performance Indicators
The core performance indicators for measuring the level and cost-effectiveness of biomass pellet machines include:
1. Production Capacity (tons/hour)
Definition: Stable output capacity under specified raw materials and finished product specifications
Rongda's Range: Rongda Machinery's RD series pellet machines have a capacity range from 0.5 tons/hour to 5.5 tons/hour
2. Electricity Consumption per Ton (kWh/ton)
Significance: The amount of electricity consumed to produce one ton of qualified pellets, directly determining operating costs
Rongda's Advantage: By optimizing the transmission system, Rongda Machinery reduces electricity consumption per ton by 15%-20%
3. Forming Rate (%)
Definition: The proportion of complete pellets in finished products, reflecting equipment stability and process rationality
Rongda's Performance: Rongda Machinery's pellet machines can achieve a forming rate of over 98%
4. Pellet Density (g/cm³)
Requirement: Usually required to be greater than 1.0, high density means higher energy density and better mechanical durability
Rongda's Achievement: Pellet density produced by Rongda Machinery's pellet machines can reach more than 1.2g/cm³
5. Mold and Pressure Roller Life (tons/set)
Importance: The number of raw material tons that core wearing parts can process before failure, greatly affecting long-term maintenance costs
Rongda's Advantage: Rongda Machinery uses high-quality materials, extending mold and pressure roller life by more than 30%
6. Adaptability Range to Raw Material Moisture Content
Significance: The broader the range, the lower the pretreatment requirements, and the greater the operational flexibility
Rongda's Capability: Rongda Machinery's pellet machines can adapt to raw material moisture content of 10%-20%
7. Equipment Operation Stability and Automation Level
Indicators: Including continuous trouble-free operation time, whether equipped with intelligent lubrication, overload protection, and remote monitoring, etc.
Rongda's Configuration: Rongda Machinery's pellet machines are equipped with comprehensive safety protection devices and intelligent control systems
Application Fields
Biomass pellet machines are widely used in the following fields:
Biomass Fuel Production: Convert agricultural and forestry waste into high-value pellet fuel
Industrial Boiler Fuel: Replace traditional fossil fuels, reduce carbon emissions
Biomass Power Generation: Provide raw materials for biomass power plants
Home Heating: Used in pellet fireplaces and other home heating equipment
Agricultural Waste Treatment: Realize resource utilization of agricultural waste
Market Prospects
With the continuous growth of global demand for renewable energy, the biomass pellet machine market has broad prospects:
Policy Support: Governments around the world have introduced policies to support the development of biomass energy
Environmental Requirements: The improvement of environmental requirements promotes the application of biomass pellet fuel
Energy Security: Reduce dependence on fossil fuels, improve energy security
Economic Benefits: The resource utilization of biomass waste creates considerable economic benefits
Rongda Machinery's Advantages
As an industry-leading biomass pellet machine manufacturer, Rongda Machinery has the following advantages:
Technical Innovation: Nearly 20 years of focus on the R&D and manufacturing of feed machinery and biomass molding equipment
Product Quality: Strict quality control system to ensure product quality
Service System: Provides comprehensive services from equipment selection, installation and commissioning to operation training
Global Market: Products are exported to Southeast Asia, Europe, Middle East, Central Asia, South America and other regions
Conclusion
As a core equipment in the biomass energy industry chain, biomass pellet machines play an important role in promoting the "dual carbon" strategy and realizing the resource utilization and energy conversion of agricultural and forestry waste. Through technological innovation and quality services, Rongda Machinery provides reliable equipment support for the development of the biomass energy industry.
In the future, with the continuous advancement of technology and the growth of market demand, biomass pellet machines will develop in the direction of large-scale, intelligent, and efficient. Rongda Machinery will continue to focus on technological innovation, continuously optimize product performance, and provide more efficient and reliable biomass pellet machine equipment for customers, helping global green energy transition.
