Starting a chicken feed business requires careful planning and investment in quality equipment. The following table summarizes the key equipment specifications for a 3-4 TPH chicken feed production line:
Starting a chicken feed business requires careful planning and investment in quality equipment. A 3-4 ton per hour chicken feed pellet production line is ideal for medium to large chicken farms and small feed factories. The design of a 3-4 TPH small chicken feed production line varies based on factors such as raw materials and factory structure. Each feed production solutions is customized to meet specific customer requirements. This guide introduces the essential equipment configuration for a 3-4 TPH chicken feed mill to help you make informed investment decisions.

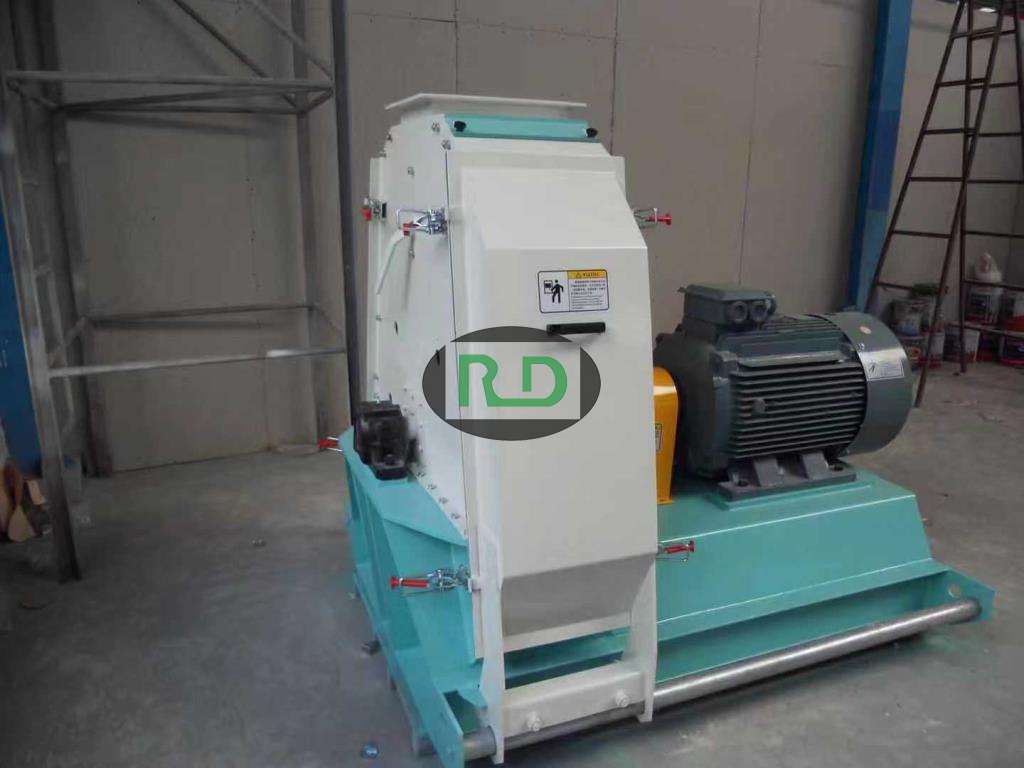

Feed Grinding Equipment
The first critical stage in chicken feed production is raw material grinding. A high-quality advanced grinding equipment is essential for achieving uniform particle size. This equipment features a spindle speed of 2970r/min, equipped with Siemens motors and SKF bearings for reliable operation. The crushing chamber with a drop-shaped structure is divided into two parallel grinding chambers with a shearing device, improving hammer efficiency.
The specially designed rotor with two different hammer screen spaces allows for flexible adjustment of particle size to meet different requirements. Hammer faces are hard-surfaced with wear-resistant materials, extending service life and reducing maintenance costs. For chicken feed production, a mesh aperture of 0.8-1.5mm is recommended to ensure optimal grinding results.
Feed Mixing System
Proper mixing ensures uniform distribution of nutrients and additives in the feed. A efficient mixing system with a capacity of 500kg/batch is ideal for 3-4 TPH production lines. This equipment uses Siemens motors and SKF bearings for reliable performance.
The mixing period ranges from 180-300 seconds, achieving high uniformity with a patented blade design that enhances material flow, shearing, and mixing. The mixing uniformity CV is ≤2.3%, ensuring consistent feed quality. The blades and chassis design ensures minimal material retention, preventing cross-contamination between batches. The discharge gate fully opens for instant material emptying with no residue.

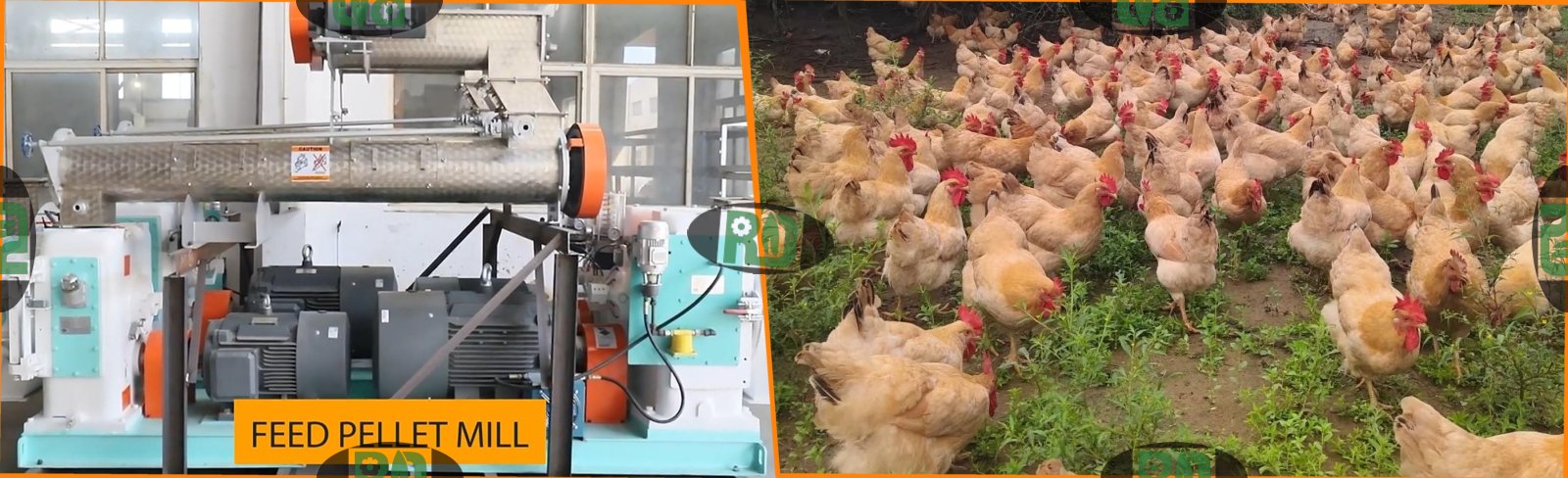

Feed Pellet Mill
The feed pellet mill is the core equipment in the production line. For a 3-4 TPH chicken feed plant, the high-capacity pellet mill delivers 3-10 TH ultra-high capacity with smart automation and industrial durability. This model uses a one-motor straight gear drive system with an ideal gear ratio, providing stable transmission, high output, low noise, and easy operation and maintenance.
The conditioner is made of SS304 stainless steel with dimensions of 2000mm×320mm, ensuring optimal steam conditioning. Imported high-quality spindle bearings from SKF and SIEMENS motors guarantee smooth and reliable operation. The roller design maximizes production capacity, while the cone roller axle combination allows for quick and easy gap adjustment. This model is available with various ring die apertures between Φ1.5-Φ12mm, allowing users to choose according to different needs for optimal technical and economic benefits.
Cooling and Drying System
Fresh pellets contain high moisture content and must be cooled to prevent spoilage. The efficient cooling system cools 10-80 t/h of pellets to ambient+5°C. The cooling air and reverse motion of granular materials ensure gradual cooling from bottom to top, providing better cooling results than other products.
The main parts use mechanical bending, rivet joints, and sealing for excellent airproof ability. With its large capacity, even huge amounts of material can be processed efficiently with a high degree of automation. This equipment is widely used for cooling various materials including pelleted feed, extruded feed, and mash material, especially for extruded feed applications.
Crumbler for Broiler Feed
For broiler chicken feed production, a crumbler is essential for processing pellets into smaller crumbles. The crumbler is used for crushing 1.8-5.0mm diameter pellets, resulting in particles of approximately 1mm after crumbling. This equipment uses a double-roller structure that contributes to uniformly reduced particle size and a high percentage of quality product.
Imported key parts ensure reliable performance and easy operation. The crumbler is widely used for crushing poultry chicken and livestock pellets as well as aquatic pellets. Siemens motors provide reliable power, ensuring consistent operation and product quality.
Screening and Separation Equipment
The rotary screener ensures final product quality by removing fines and oversized particles. This equipment operates steadily and reliably with easy operation and maintenance. The sieve can be easily changed for different applications. Combining the characteristics of circular motion, elliptical motion, and to-and-fro linear motion, it achieves high sieving efficiency with low energy consumption.
A pre-cleaning machine is also essential for removing impurities from raw materials before processing. This equipment removes 95%+ impurities from grains and biomass, protecting downstream equipment and boosting product quality. Multi-stage screening and magnetic separation ensure thorough cleaning of raw materials.
Packaging Equipment
Efficient packaging ensures product quality and reduces labor costs. The automatic packing machine features a unique anti-shock device to ensure measurement accuracy and fast packing. The external regulation machinery makes it convenient to repair and maintain. Key parts are imported for long service life.
For bulk packaging, a ton-bag packaging scale offers 0.1% accuracy with dust-free operation. This equipment handles 500-2000kg bags with dual feeding and automatic operation. For smaller bags, a packing scale with double hopper provides 40-60 bags/hour per hopper in the 20-50kg range.
Material Handling and Conveying
Efficient material handling is crucial for continuous production. The screw conveyor is specially designed to deliver powder materials with large capacity, safety, and reliability. It has strong adaptability, convenient installation and repair, and long service life. This equipment can be widely used for transporting powdery, granular, and small pieces of material at small angles (0°-20°).
Bucket elevators provide vertical transport for 5-100 m³/h capacity with less than 1% spillage. The 3-30m height range makes them ideal for grain, ore, and powder handling. Stainless steel and wear-resistant options are available for different applications. Belt conveyors handle 5-500 t/h with 400-2000mm width and 0.5-3 m/s speed, using durable rubber/PVC/PU belts for various materials.
Dust Collection and Control
A pulse dust collector with 8 bags ensures clean working conditions. The bag cleaning pressure is 0.5-0.7 MPa, with dusting efficiency ≥99.5%. The dismountable bag structure with skeletons and unique jet devices effectively cleans the bags. An observation hole makes maintenance convenient.
Additional auxiliary equipment includes iron removing devices, draft fans, settling chambers, buffer bins, pneumatic gate valves, oil adding machines, and boiler systems. These components work together to create a complete, efficient production line.
Electrical Control System
A smart electrical control system with Siemens/Schneider PLCs provides centralized control and monitoring. The mimic control panel handles power ranges from 22kw to 55kw for star-delta start, with main electric components from reputable brands. This system reduces operational errors by 90% while optimizing production parameters in real-time.
Remote monitoring capabilities allow operators to track production performance and make adjustments as needed. IP65 HMI ensures durability in industrial environments. The electrical control system is essential for maintaining consistent product quality and maximizing production efficiency.
Conclusion
Establishing a 3-4 ton per hour chicken feed pellet production line requires careful selection of equipment to ensure efficient operation and high-quality feed output. From grinding and mixing to pelleting, cooling, and packaging, each piece of equipment plays a critical role in the production process. Investing in high-quality equipment with advanced features may require higher initial investment but delivers superior long-term returns through reduced operational costs and improved feed quality.
A well-designed 3-4 TPH chicken feed production line represents a significant investment opportunity in the growing poultry feed market. By selecting reliable equipment and optimizing operational processes, investors can establish profitable chicken feed production facilities that serve this growing market while contributing to food security and economic development.
