Crushing stands as a fundamental pretreatment process in poultry feed production, transforming large raw material particles into smaller, digestible forms for poultry animals. This comprehensive guide explores the principles, equipment, and technologies behind effective feed material crushing, helping you optimize your feed production efficiency.
Understanding the Crushing Process
Crushing employs mechanical force to reduce large-particle materials into smaller particles and powder. Common crushing forces include extrusion, impact, shear, friction, splitting, and bending. In the poultry feed grinding process, materials undergo crushing through three primary mechanisms:
Impact Force: The crushing working component (impact column/hammer/blade) directly impacts the material, initiating the size reduction process.
Material Impact: The material impacts against working surfaces such as ring gears, tooth plates, or sieve plates, further reducing particle size.
Inter-Particle Collision: Moving materials collide with each other, particularly prominent in jet flow mills, achieving additional size reduction.
Evaluating Crushing Effectiveness
Common expressions like "coarse pulverization," "medium pulverization," "fine pulverization," and "micro pulverization" lack precision in describing specific particle sizes. What constitutes "fine pulverization" in one crusher may be "coarse crushing" in another machine designed for grinding poultry chicken feed.
Scientific Representation Methods: Particle size should be expressed using geometric average particle size (Dgw, D50), particle size distribution frequency curves, and sieving rates. For example, when corn is crushed to 750μm, the sieving rate through a 20-mesh sieve should be ≥50%, with 85% distributed between 10-40 mesh.
Crushing Uniformity: Express crushing uniformity using geometric standard deviation (Sgw), where smaller values indicate more uniform crushing (ideal state: 1).
Detection Methods: Use standard sieve methods for coarse/medium/fine/micro powders between 12-120 mesh, or particle size analyzers for micron/nano powders smaller than 120 mesh.
Key Factors Affecting Crushing Performance
The main factors affecting crushing particle size include raw material characteristics (moisture, fiber, protein, and grease content) and poultry feed crushing equipment specifications (model, hammer, screen, auxiliary suction system, etc.).
Raw Material Physical Properties: Feed ingredients typically consist of starch, protein, fiber, minerals, oil, and moisture. Key factors include air temperature, material temperature (lower temperatures increase brittleness, making nighttime crushing more energy-efficient), and crushing difficulty ranking: fiber > protein > starch > minerals.
Oil and Moisture Impact: Higher oil and moisture content results in coarser achievable crushing fineness. Effective methods for processing high-moisture/high-greasy materials include mixed crushing and freezing crushing techniques.

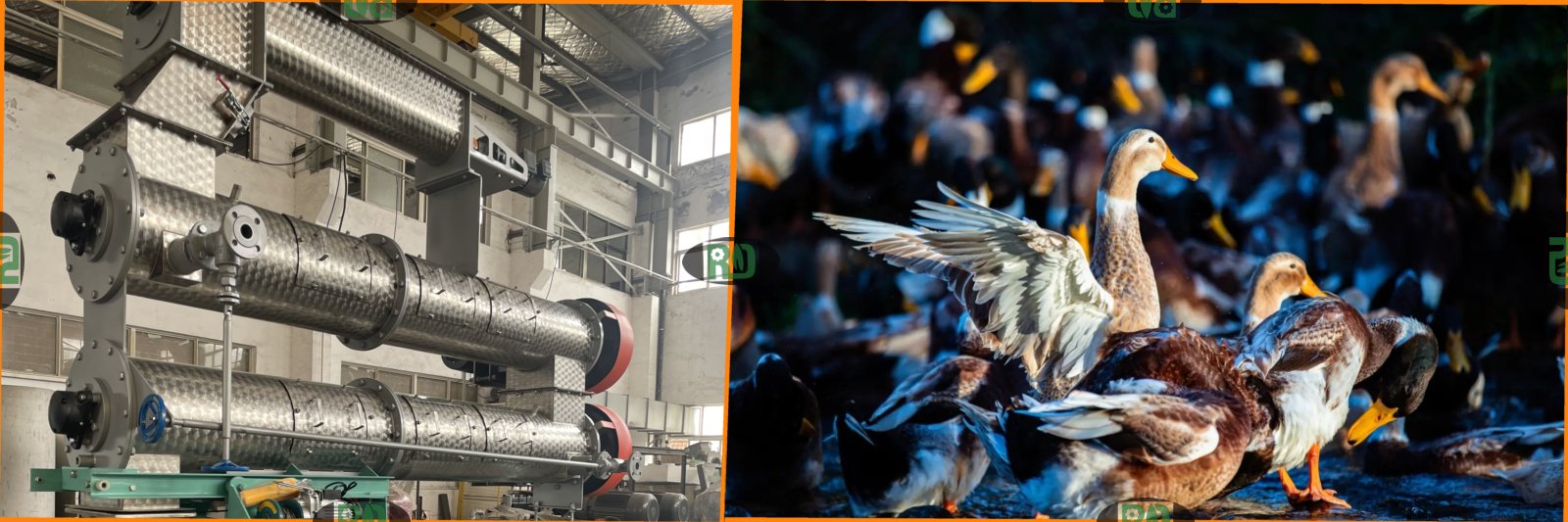

Equipment Influence: The impact of poultry chicken feed hammer mill grinder machine includes crushing models and equipment conditions. Different models suit different crushing conditions. For the commonly used hammer mill machinery for grinding poultry feeds, factors such as rotor speed, hammer count and thickness, sieve plate aperture and thickness, sieve hole arrangement, and auxiliary suction all affect efficiency.
Recommended Poultry Feed Hammer Mill Models
Selecting the appropriate hammer mill model is crucial for optimal crushing performance in your poultry feed production line. Below are two recommended models with their specifications:
SFSP56x40 Hammer Mill for Fine Grinding: With a capacity of 4-5 t/h, main power of 30 kW, rotating speed of 2970 r/min, and feeder power of 1.5 kW, this model features a rotor diameter of 560 mm and grinding chamber width of 400 mm. This hammer mill can grind various granular feed such as maize, sorghum, wheat and beans. It adopts welding structure with the motor and rotor installed in the same base. Direct driving is adopted, structure is compact and it is convenient and quick to replace the sieve plate. With safety interlock device at operation door, the vibration is small during running because the rotor has been dynamic balance tested.
SFSP65x60 Hammer Mill for Fine Grinding: With a capacity of 3-4 t/h, main power of 55 kW, rotating speed of 2970 r/min, and feeder power of 2.2 kW, this model features a rotor diameter of 666 mm and grinding chamber width of 600 mm. This hammer mill can grind various granular feed such as maize, sorghum, wheat and beans. It adopts welding structure with the motor and rotor installed in the same base. Direct driving is adopted, structure is compact and it is convenient and quick to replace the sieve plate. With safety interlock device at operation door, the vibration is small during running because the rotor has been dynamic balance tested.
Essential Poultry Feed Processing Equipment
Beyond the corn grinder for poultry chicken feed, a complete poultry feed production line requires various equipment types. Here are the common main poultry feed mill equipment components:
Poultry Feed Mixing Equipment: Various indicators comply with international standards. Features include good mixing effect (Cv = 2.5%, residue ≤0.1%), fast mixing speed (30s~120s cycle), and simultaneous addition of multiple liquid and solid types with accurate spraying and convenient control.
Poultry Chicken Feed Pellet Making Machine: This equipment transforms meal, fiber, or small granule products into pellets. The product, forced by rollers through die holes, emerges as small cylinders suitable for feeding.
Poultry Feed Pellet Cooler: Counter current coolers reduce pellet temperature from above 60°C to approximately +5°C above room temperature, improving storage stability and pellet quality.
Poultry Feed Pellet Crumblers: Crumblers break pellets after pelleting and cooling to obtain feed for small animals. Each crumb maintains the complete formula's characteristics, avoiding selective feeding by animals.
Sieves: Sieving equipment removes dust from pellets before packaging or bulk delivery, ensuring clean, high-quality final products.
Conclusion
Effective crushing is fundamental to producing high-quality poultry feed. By understanding the crushing principles, evaluating crushing effectiveness, and selecting appropriate equipment, feed producers can optimize their production processes for better digestibility and animal performance. Rongda Machinery, with nearly 20 years of experience in feed machinery and biomass molding fuel equipment R&D, design, manufacturing, and installation, offers comprehensive solutions for poultry feed production lines. Our equipment, certified with CE, GOST, and ISO9001 quality systems, serves markets across Southeast Asia, Europe, the Middle East, Central Asia, South America, and beyond.
