Malaysia 10-12 Tons Biomass Pellet Production Line
Malaysia 10-12 Tons Biomass Pellet Production Line Equipment
Liyang Rongda Machinery Co., Ltd. professionally provides complete biomass pellet production line solutions
descriptionProject Overview
This is a 10-12 tons per hour biomass pellet production line shipped to Malaysia, professionally designed and manufactured by Liyang Rongda Machinery Co., Ltd. The production line adopts advanced production technology to ensure efficient and stable operation, meeting international customers' needs for biomass pellet production.

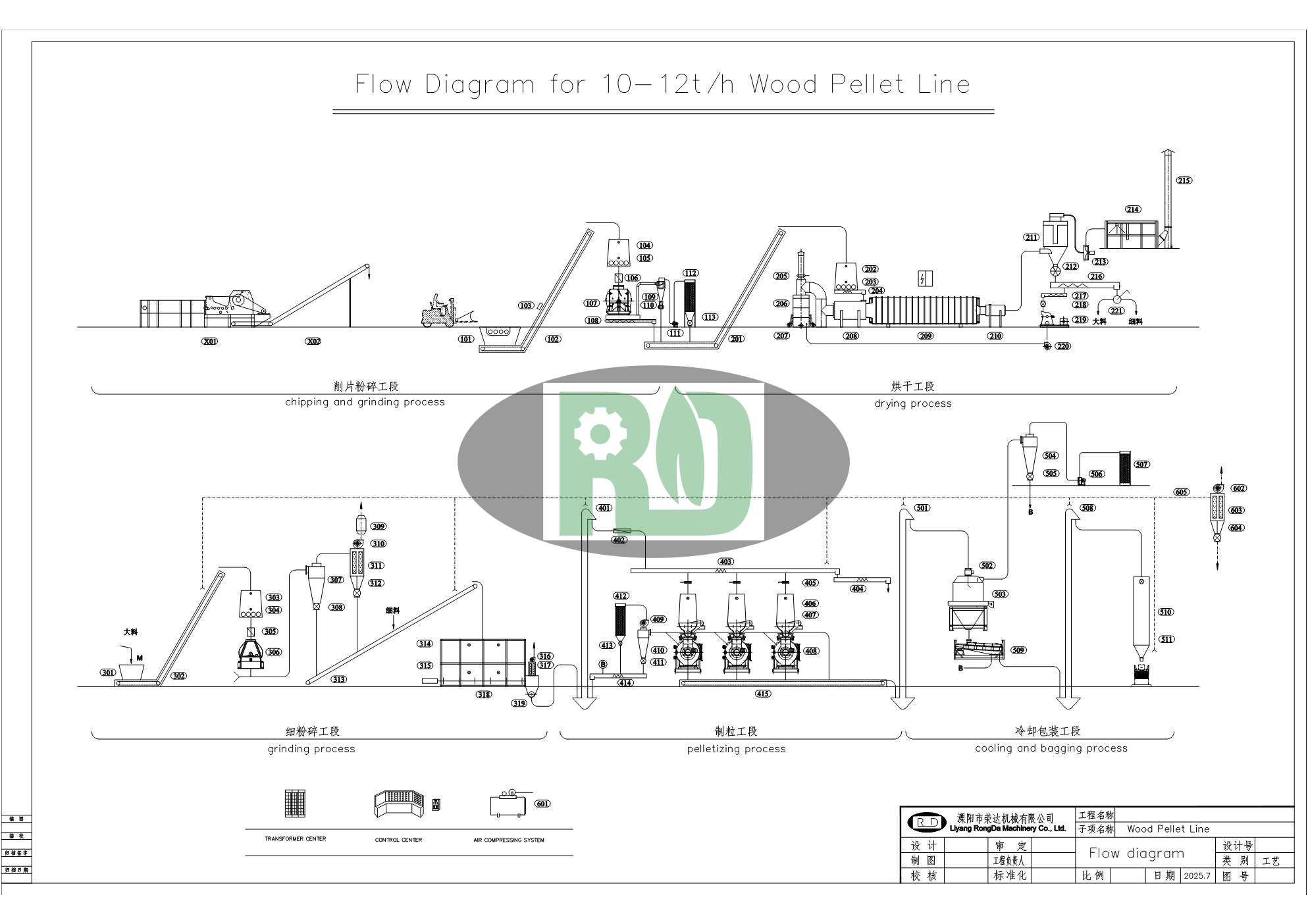

Figure 1: Overall Layout of Malaysia 10-12 Tons Biomass Pellet Production Line
settingsGROUP 1: Raw Material Chipping and Coarse Grinding Section
The raw material chipping and coarse grinding section is the first step of the biomass pellet production line, mainly responsible for preliminary processing of large raw material pieces to prepare for subsequent processes.

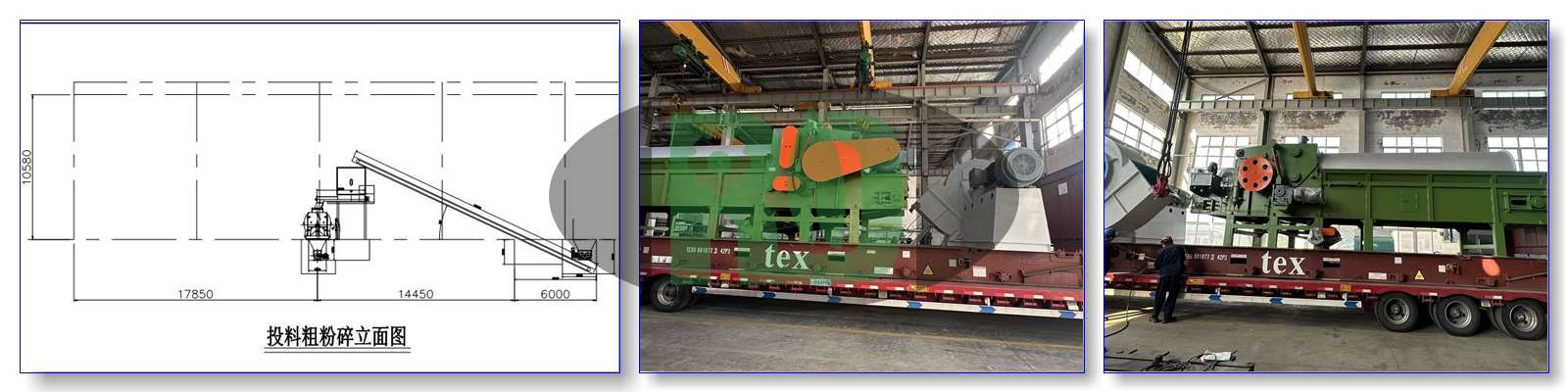

Figure 2: Raw Material Chipping and Coarse Grinding Section Equipment Layout
| Description | General Configuration |
|---|---|
| Conveying System | Multiple belt and chain conveyors for material transport |
| Chipping Equipment | High-capacity wood chipper for size reduction |
| Feeding System | Variable-frequency screw feeders with hopper |
| Metal Removal | Suspended iron remover and metal plate |
| Coarse Grinding | Heavy-duty hammer mill with dust collection |
| Dust Collection | Cyclone + bag filter system |
Total Power:Approx. 700+ KW (system dependent)
local_fire_departmentGROUP 2: Drying Section
The drying section adopts advanced triple drum drying technology to effectively remove moisture from raw materials, ensuring smooth operation of subsequent pelletizing processes.

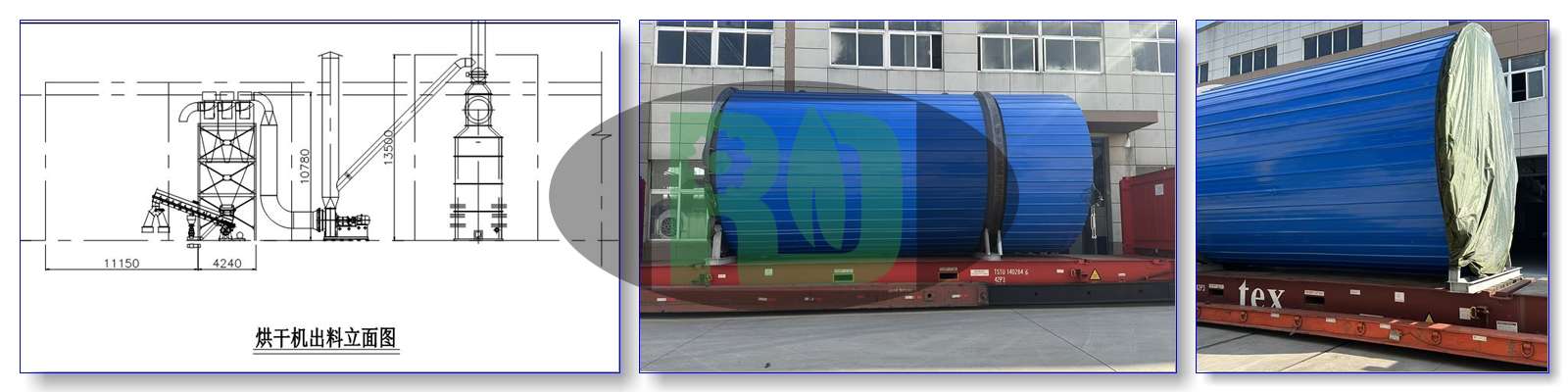

Figure 3: Drying Section Equipment Layout
| Description | General Configuration |
|---|---|
| Feeding System | Buffer bins and variable-frequency screw conveyors |
| Triple Drum Dryer | Large-capacity rotary dryer with frequency control |
| Heat Source | High-efficiency biomass furnace |
| Exhaust & Dust Control | Induced draft fan, cyclones, and multi-stage dust collector |
| Post-Drying Milling | Secondary hammer mill for particle refinement |
Total Power:Approx. 370+ KW (system dependent)
constructionGROUP 3: Fine Grinding Section
The fine grinding section further refines raw material particles to ensure uniform particle size, providing high-quality raw materials for the pelletizing section.

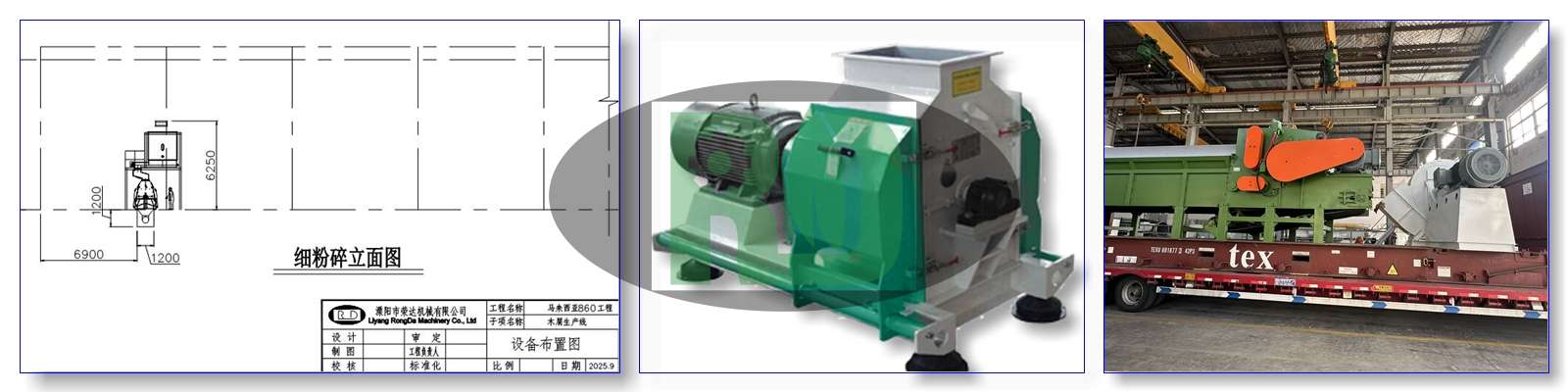

Figure 4: Fine Grinding Section Equipment Layout
| Description | General Configuration |
|---|---|
| Storage & Feeding | Buffer bin and variable-frequency feeding system |
| Fine Grinding Mill | High-efficiency hammer mill with VFD |
| Dust Collection | Pulse jet bag filter with cyclone pre-separator |
| Conveying | Belt and screw conveyors for material transfer |
| Hydraulic System | For auxiliary operations |
Total Power:Approx. 400 KW (system dependent)
buildGROUP 4: Pelletizing Section
The pelletizing section is the core of the entire production line, using multiple high-efficiency pellet mills to ensure high yield and high-quality biomass pellet production.

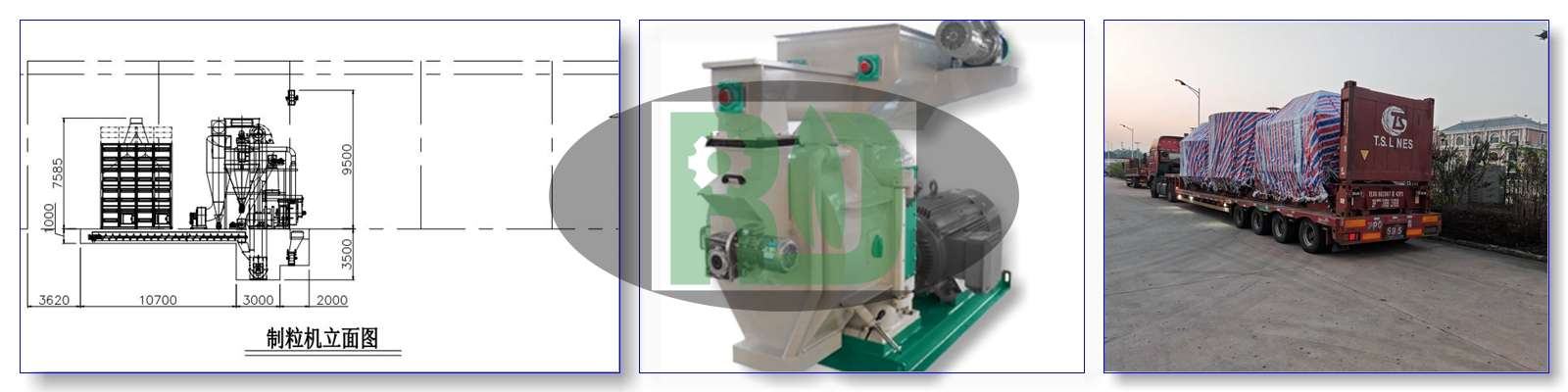

Figure 5: Pelletizing Section Equipment Layout
| Description | General Configuration |
|---|---|
| Pellet Mills | Multiple large-capacity biomass pellet mills in parallel |
| Feeding System | Distribution and return screw conveyors with pneumatic gates |
| Material Bins | Dedicated bins for each pellet mill |
| Dust Control | Cyclone + bag filter system at each mill |
| Output Conveying | Belt conveyor for hot pellet transfer |
Total Power:Over 1000 KW (main drive dominant)
local_shippingGROUP 5: Cooling and Packaging Section
The cooling and packaging section cools and grades the biomass pellets after pelletizing, ensures product quality, and performs finished product packaging.

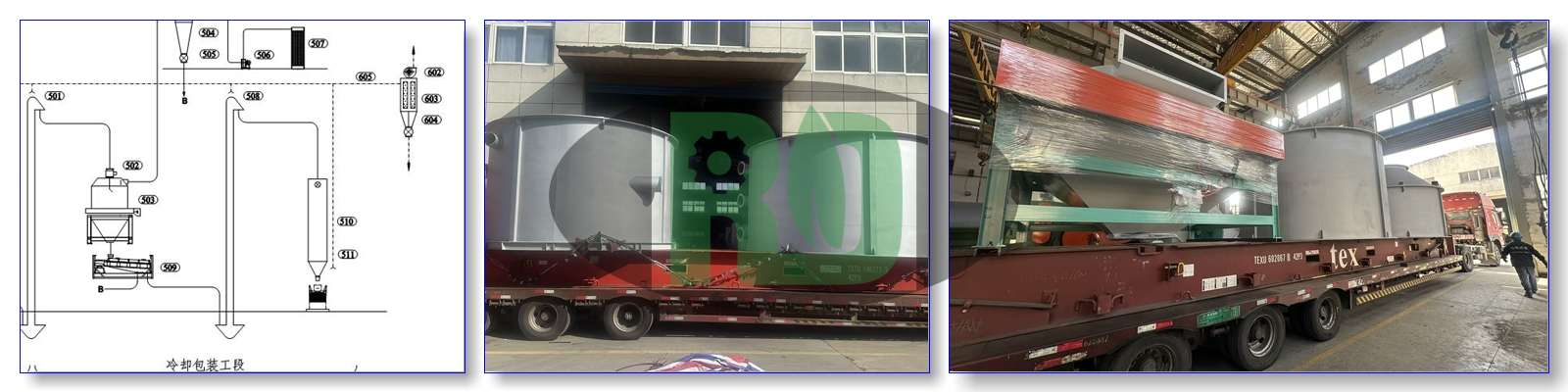

Figure 6: Cooling and Packaging Section Equipment Layout
| Description | General Configuration |
|---|---|
| Cooling System | Counter-flow cooler with dedicated fan |
| Screening | Rotary screener for pellet grading |
| Elevating & Conveying | Bucket elevators and belt conveyors |
| Finished Product Storage | Large-capacity silo with level indicator |
| Dust Collection | Bag filter system for cooling exhaust |
Total Power:Approx. 45–50 KW
settings_applicationsGROUP 6: Auxiliary Systems
The auxiliary system provides necessary support for the entire production line, including air compressor system, dust collection system, etc.
| Description | General Configuration |
|---|---|
| Air Compressor | Centralized air supply system |
| Auxiliary Dust Collection | Additional pulse filter for workshop environment |
| Pneumatic Components | Airlocks and valves for process control |
Total Power:Approx. 50–55 KW
infoTechnical Advantages and Features
Main Technical Features
- Adopting advanced triple drum drying technology, high thermal efficiency, low energy consumption
- Multiple high-efficiency pellet mills running in parallel to ensure high yield and stability
- Fully automated control system, easy operation, convenient maintenance
- Complete dust collection system, meeting environmental protection requirements
- Modular design, convenient for transportation and installation
Production Line Advantages
Environmental Protection and Energy Saving
Adopting advanced dust collection technology and energy-saving equipment, meeting international environmental protection standards, reducing energy consumption costs
High Efficiency Production
10-12 tons per hour production capacity, meeting large-scale production needs, improving return on investment
Stable and Reliable
Using high-quality materials and advanced manufacturing processes to ensure long-term stable operation of equipment
Related Equipment Recommendations
Biomass Pellet Machine
- Professional pelletizing equipment
- High efficiency, low energy consumption
- Multiple specifications available
Grinding Equipment
- High-efficiency grinding system
- Precise particle size control
- Suitable for various raw materials
