Palm Kernel Shell Pellet Production Line Professional Solution
Palm Kernel Shell Pellet Production Line
Transform palm oil industry waste into high-value renewable energy. Rongda Machinery delivers turnkey palm shell pellet production solutions — from raw material preprocessing through final packaging — engineered for 0.5–5.5 T/H capacity with ISO 9001 and CE certified equipment.
Palm Shell: The Future of Biomass Energy
Palm Kernel Shell (PKS) is the hard, shell-like byproduct remaining after palm oil extraction. As global demand for renewable energy surges, PKS has emerged as one of the most efficient and sustainable biomass fuel sources — with a market projected to reach USD 1.01 billion by 2034, growing at a CAGR of 9.1%.
High Calorific Value
PKS delivers 4,000–4,500 kcal/kg (18–20 MJ/kg), significantly outperforming rice husk and matching premium wood pellets. Low moisture content below 8% ensures complete, efficient combustion in industrial boilers.
Carbon Neutral & Sustainable
As a plant-based byproduct, PKS absorbs CO₂ during palm tree growth. Combustion releases only the carbon previously captured, making it carbon neutral. PKS requires no deforestation — it is a natural waste product from palm oil milling.
Abundant Global Supply
Indonesia and Malaysia alone produce over 22 million metric tons of PKS annually. Japan imported 4.5+ million tons in 2024, with demand growing 15–21% year-over-year. Southeast Asia's 1,200+ active palm oil mills ensure continuous, scalable supply.
Palm Waste Feedstock for Pellet Production
A complete palm shell pellet production line can process multiple types of palm oil industry waste. Each raw material has unique characteristics that influence the preprocessing requirements and final pellet quality.
Complete Palm Shell Pellet Production Process
The palm kernel shell pellet production line transforms raw palm waste into uniform, high-density fuel pellets through seven precisely engineered stages. Hover over each step to view detailed information and equipment specifications.
Palm Shell Crushing & Size Reduction
Raw palm kernel shells are fed into a heavy-duty hammer mill or wood chipper for initial size reduction. For EFB and palm fiber, a drum-type shredder first breaks long fibers into 5–10cm lengths, followed by a specialized palm chopping machine that reduces material to fine powder. The crushing section uses negative-pressure pneumatic conveying to minimize dust pollution and maximize throughput.
View Crushing Equipment →

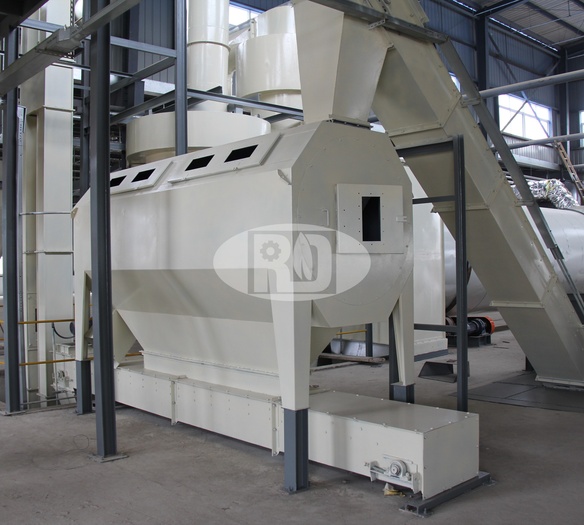

Impurity Removal & Screening
Crushed palm material passes through a rotary screen or primary cleaning sieve to remove large debris, stones, metal contaminants, and other impurities. Magnetic separators protect downstream equipment from damage. This stage achieves 95–98% impurity removal, ensuring smooth operation of pellet mills and consistent pellet quality.
View Cleaning Equipment →
Moisture Reduction to Optimal Level
Palm shell raw material often contains 40–65% moisture. A triple-pass rotary drum dryer, powered by an industrial hot blast stove, reduces moisture content to 12–15% — the optimal range for pelletizing. The drying system achieves 90% thermal efficiency with ±1% moisture uniformity. For PKS with naturally low moisture (8–12%), this step may be simplified or bypassed.
View Drying Equipment →

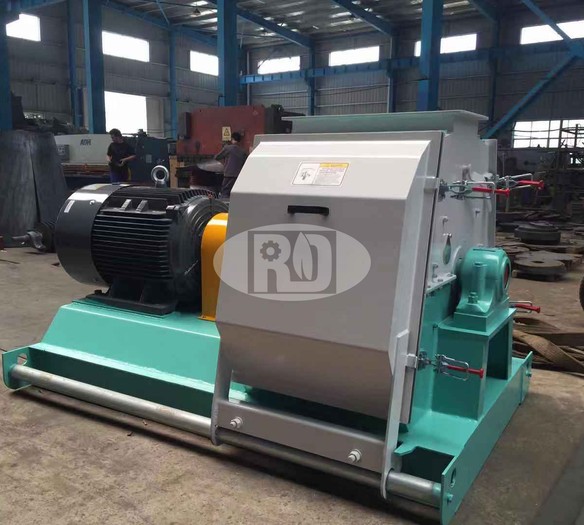

Particle Size Reduction for Pelletizing
Dried palm material is ground in a high-speed hammer mill to achieve uniform particle size of 3–6mm. The water-drop type hammer mill delivers 90%+ particle uniformity with 15–20% lower energy consumption. Adjustable screen sizes (1–30mm) provide flexibility for different pellet specifications and raw material conditions.
View Grinding Equipment →
High-Pressure Pellet Formation
The heart of the production line. Rongda's RD series vertical ring die pellet mill compresses prepared palm material into dense cylindrical pellets of 6–12mm diameter. Under strong extrusion between rollers and ring die, natural lignin in the palm shell acts as a binder, eliminating the need for chemical additives. The gear-driven system improves output by 20% compared to belt-driven alternatives. Capacity ranges from 0.5 T/H (RD-350MX) to 5.5 T/H (RD-915MX).
View Pellet Mill Series →
Temperature & Moisture Reduction
Hot pellets exiting the pellet mill (approximately 80–90°C) are cooled in a counterflow cooler to within 5°C of ambient temperature. This process simultaneously reduces pellet moisture to 8–10% and increases pellet hardness, minimizing breakage during handling and transport. The SKLN series cooler handles 5–30 T/H with less than 0.8% breakage rate.
View Cooling Equipment →
Automated Weighing & Bagging
Cooled pellets are screened to remove fines (which are recycled back into the process), then automatically weighed and packaged. Small bag packaging scales handle 20–50kg bags, while ton-bag scales package 500–2,000kg bulk bags. Rongda's packaging equipment achieves ±0.1% accuracy with throughput up to 1,200 units/hour. Automated palletizing systems are available for high-volume operations.
View Packaging Equipment →Rongda Palm Shell Pellet Production Equipment
Each piece of equipment in the Rongda palm shell pellet production line is engineered for durability, efficiency, and seamless integration. ISO 9001 and CE certified, with Cr15–Cr28MoV alloy steel wear parts for extended service life.

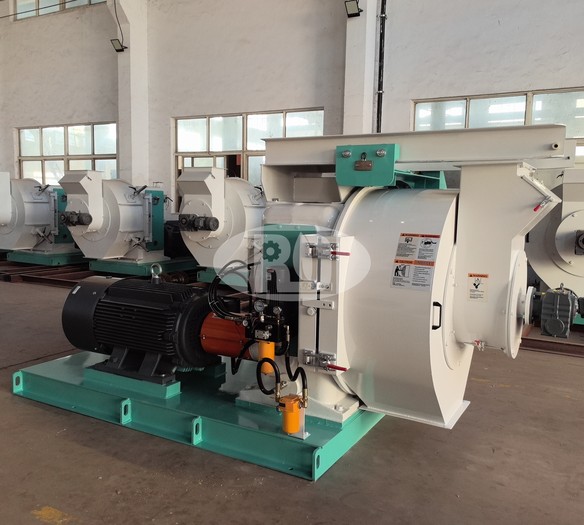

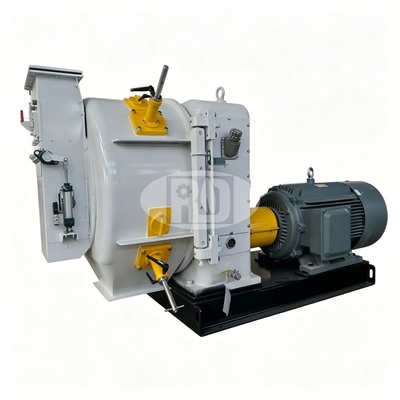

RD Series Biomass Pellet Mill
Vertical ring die pellet mill with gear-driven system. Capacity 0.5–5.5 T/H. Cr15–Cr28MoV alloy die. NSK bearings. Siemens motor option. PLC smart control.
View Products →

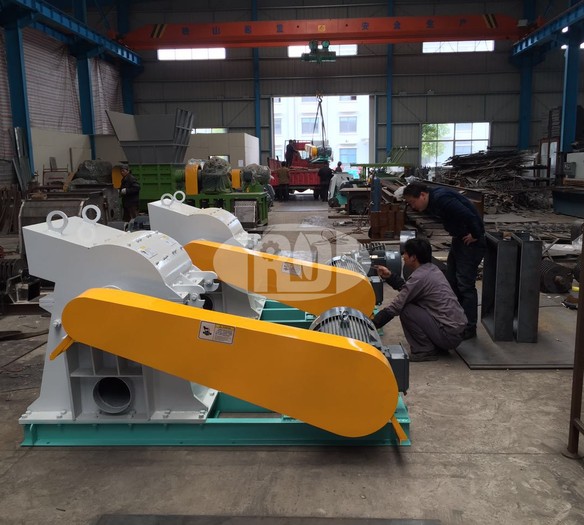

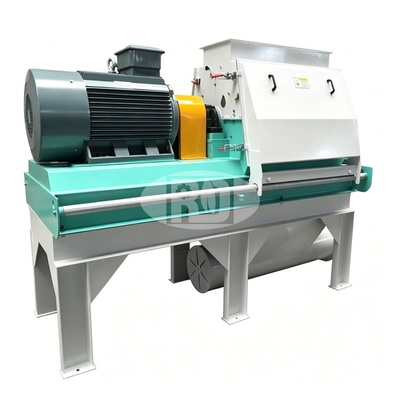

Biomass Hammer Mill & Wood Chipper
Heavy-duty crushing for palm shell, EFB fiber and wood blocks. Capacity 3–30 T/H. Adjustable output 3–60mm. Mn13/Mn18Cr2 wear-resistant liners.
View Products →

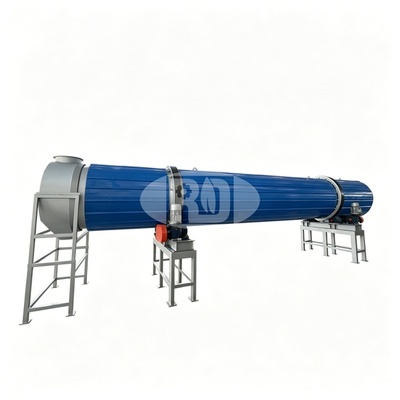

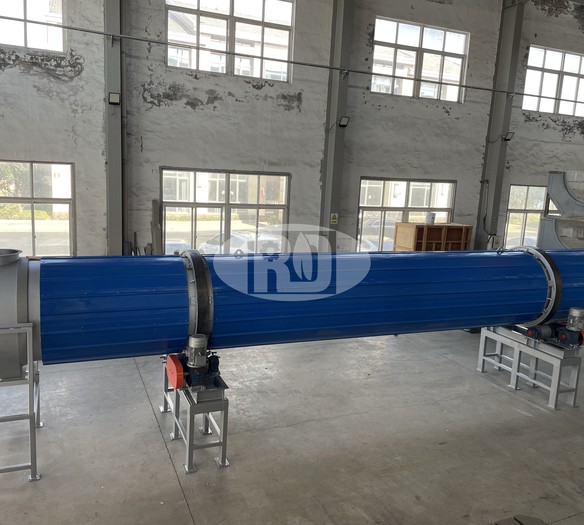

Rotary Drum Dryer & Hot Blast Stove
Triple-pass rotary dryer reduces moisture from 60% to 12–15%. 90% thermal efficiency. Hot blast stove delivers 80–300°C with ±2°C precision. Scalable 10–80 TPD.
View Products →

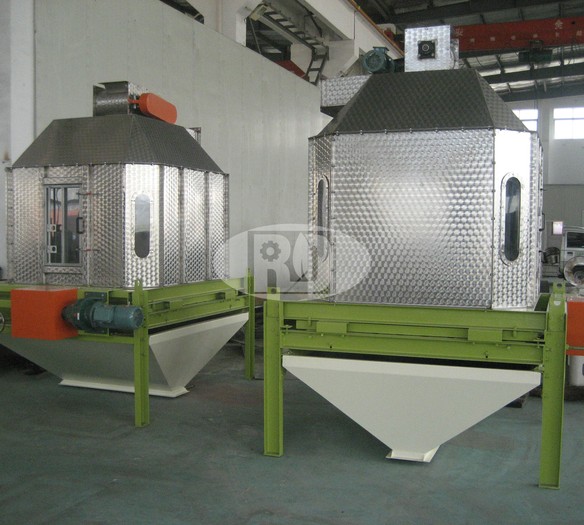

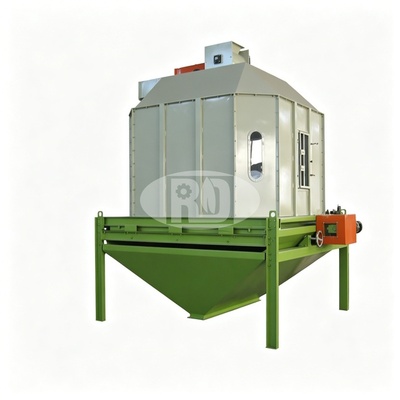

SKLN Counterflow Cooler
Cools pellets from 90°C to ambient +5°C. Capacity 5–30 T/H. Less than 0.8% breakage. 304/316L stainless steel option. Counterflow design for uniform cooling.
View Products →

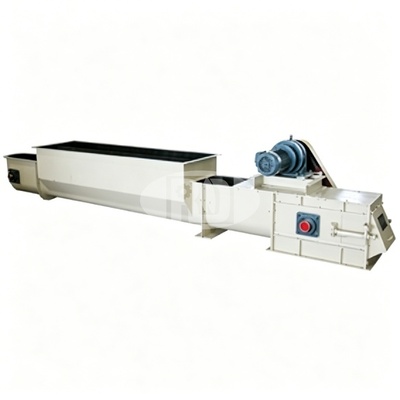

Screw, Bucket & Belt Conveyor
Fully enclosed dust-free material transport. Screw conveyor 5–250 m³/h. Bucket elevator 10–120 m³/h. Belt conveyor 5–500 T/H. Flexible layout options.
View Products →

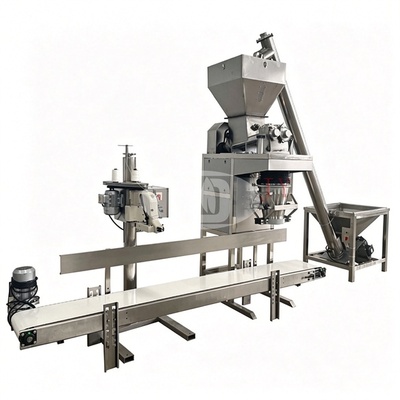

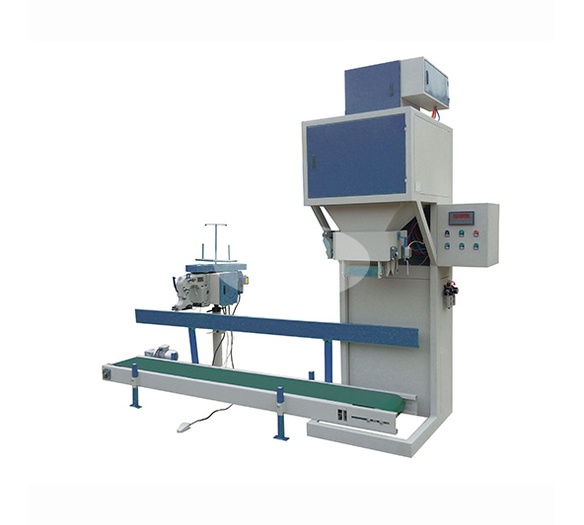

Automated Packaging & Palletizing
±0.1% accuracy weighing. Small bag 20–50kg, ton bag 500–2,000kg. Up to 1,200 units/hour. Robotic palletizer with ±1mm precision. Integrated line solution.
View Products →Palm Shell Pellet Technical Parameters
Finished palm kernel shell pellets produced by Rongda equipment meet international biomass fuel standards, suitable for industrial boilers, power plants, and residential heating applications worldwide.
PKS Pellets vs. Other Biomass Fuels
Palm kernel shell pellets offer a compelling combination of high energy density, low environmental impact, and cost efficiency compared to alternative biomass fuels.
| Property | PKS Pellets | Wood Pellets | Rice Husk |
|---|---|---|---|
| Calorific Value | 4,000–4,500 kcal/kg | 3,800–4,200 kcal/kg | 3,000–3,400 kcal/kg |
| Moisture Content | < 8–10% | < 10% | 10–15% |
| Ash Content | 2–5% | 0.5–2% | 15–20% |
| Sustainability | Byproduct (No Deforestation) | Risk of Deforestation | Agricultural Waste |
| Raw Material Cost | Low | High | Low |
| Availability | Abundant (SE Asia) | Moderate | Seasonal |
| CO₂ Reduction vs Coal | Up to 70% | Up to 65% | Up to 50% |
Palm Shell Pellet Applications
PKS pellets serve as a versatile renewable energy source across multiple industries, from large-scale power generation to residential heating, replacing fossil fuels with a carbon-neutral alternative.

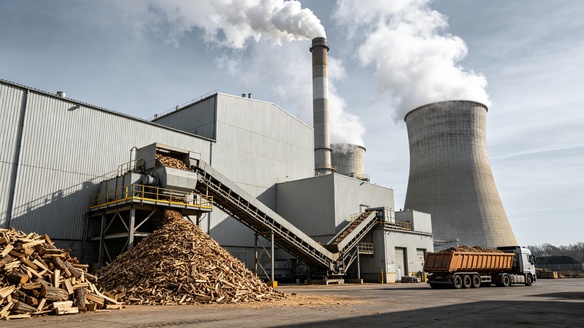

Biomass Power Plants
Primary fuel for biomass-based combined heat and power (CHP) plants. Over 70 power plants in Japan alone use PKS for base-load electricity generation under the FIT program.

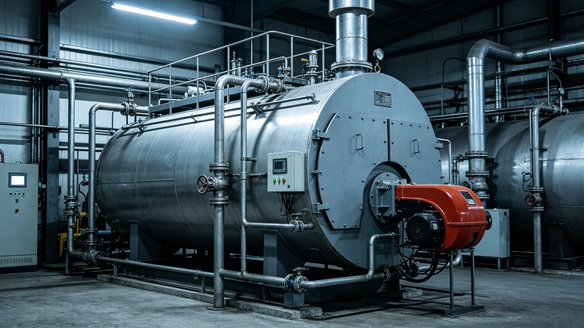

Industrial Boilers
Direct combustion in industrial steam boilers for palm oil refineries, cement factories, textile mills, and chemical plants. Combustion efficiency above 85% in modern biomass boilers.

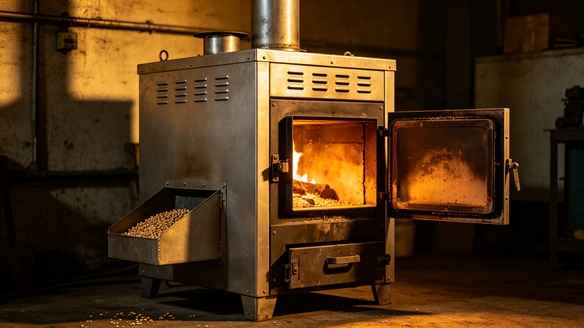

Residential & Commercial Heating
Clean-burning fuel for home heating stoves, commercial heating systems, and district heating networks. Low smoke and particulate emissions make it suitable for urban environments.

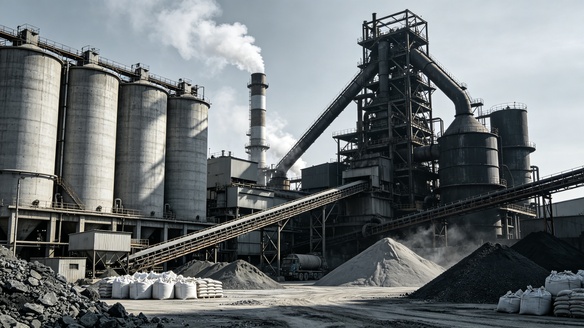

Cement & Steel Industry
Alternative fuel for cement kilns and foundries, reducing carbon emissions while maintaining process temperatures. Co-firing with coal achieves significant CO₂ reduction targets.
Activated Carbon Production
PKS is an excellent precursor for activated carbon used in water filtration and air purification systems. The high carbon content and porous structure make it ideal for this application.

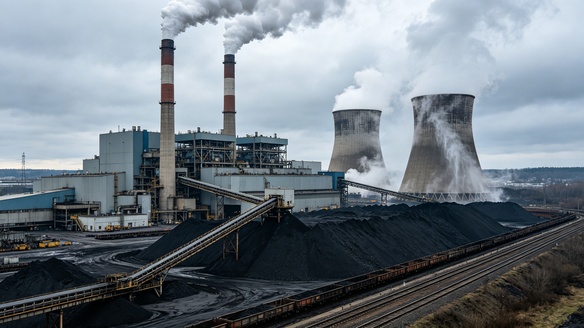

Co-firing with Coal
Blending PKS pellets with coal in existing thermal power plants reduces CO₂ emissions by approximately 1.7 metric tons per metric ton of coal displaced, meeting renewable energy mandates.
Palm Shell Pellet Market Outlook
The global biomass fuel (PKS) market is experiencing rapid growth, driven by renewable energy mandates, carbon reduction targets, and increasing demand from Asian and European markets.
Asia-Pacific (55% Market Share)
Japan imports 4.5+ million tons of PKS annually (21% YoY growth). South Korea uses PKS in industrial boilers to meet renewable energy standards. Thailand and the Philippines are emerging producers and consumers.
Europe (25% Market Share)
The Netherlands, UK, and Italy are leading importers. EU renewable energy directives and carbon reduction targets drive demand for certified PKS pellets in co-firing applications.
Americas & Africa (20% Market Share)
The US imported approximately 5 million tons in 2025, primarily for co-firing in coal power plants. Colombia and Brazil are developing domestic PKS pellet industries. Nigeria and Ivory Coast are emerging African producers.

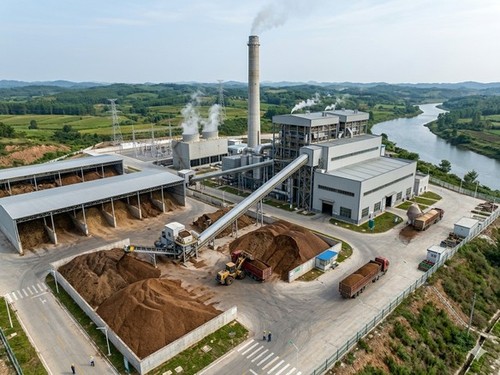

Rongda RD Series Biomass Pellet Mill for Palm Shell
Select the right pellet mill model for your palm shell production capacity requirements. All models feature vertical ring die design with gear-driven transmission, forced feeding system, and PLC smart control.
| Model | Capacity | Die Material | Conditioner | Control | Best For |
|---|---|---|---|---|---|
| RD-350MX | 0.5–0.7 T/H | Stainless Steel | Steam | Semi-Auto | Farms, Small Workshops |
| RD-420MX | 0.8–1.2 T/H | Cr15MoV | Steam | Semi-Auto | Small Co-ops, Wood Shops |
| RD-480MX | 1.2–1.5 T/H | Cr18MoV | Steam | Semi-Auto | Co-ops, Small Plants |
| RD-508MX | 1.5–2 T/H | Cr20MoV | Dual-Stage | Smart PLC | Medium Operations |
| RD-678MX | 2.5–3 T/H | Cr25MoV | Triple-Stage | Smart PLC | Wood Processors |
| RD-768MX | 3–3.5 T/H | Cr28MoV | Quad-Stage | Smart PLC | Agri-Coops, Large Plants |
| RD-860MX | 3.5–4.5 T/H | Cr18MoV | Dual-Stage | Smart PLC | Large Co-ops, Industrial |
| RD-915MX | 4.5–5.5 T/H | Cr20MoV | Dual-Stage | Smart PLC | Power Plants, MSW |
Frequently Asked Questions
Common questions about palm kernel shell pellet production, answered by Rongda's engineering team.
Ready to Start Your Palm Shell Pellet Project?
Rongda Machinery provides turnkey palm shell pellet production line solutions from 0.5 to 5.5 T/H. Get a customized proposal with equipment selection, layout design, and investment analysis for your specific raw material and capacity requirements.
